DTC P0550, P0552, P0553: Power Steering Pressure Sensor/Switch Circuit, Power Steering Pressure Sensor Circuit Low Input, Power Steering Pressure Sensor Circuit High Input: Wiring Diagram

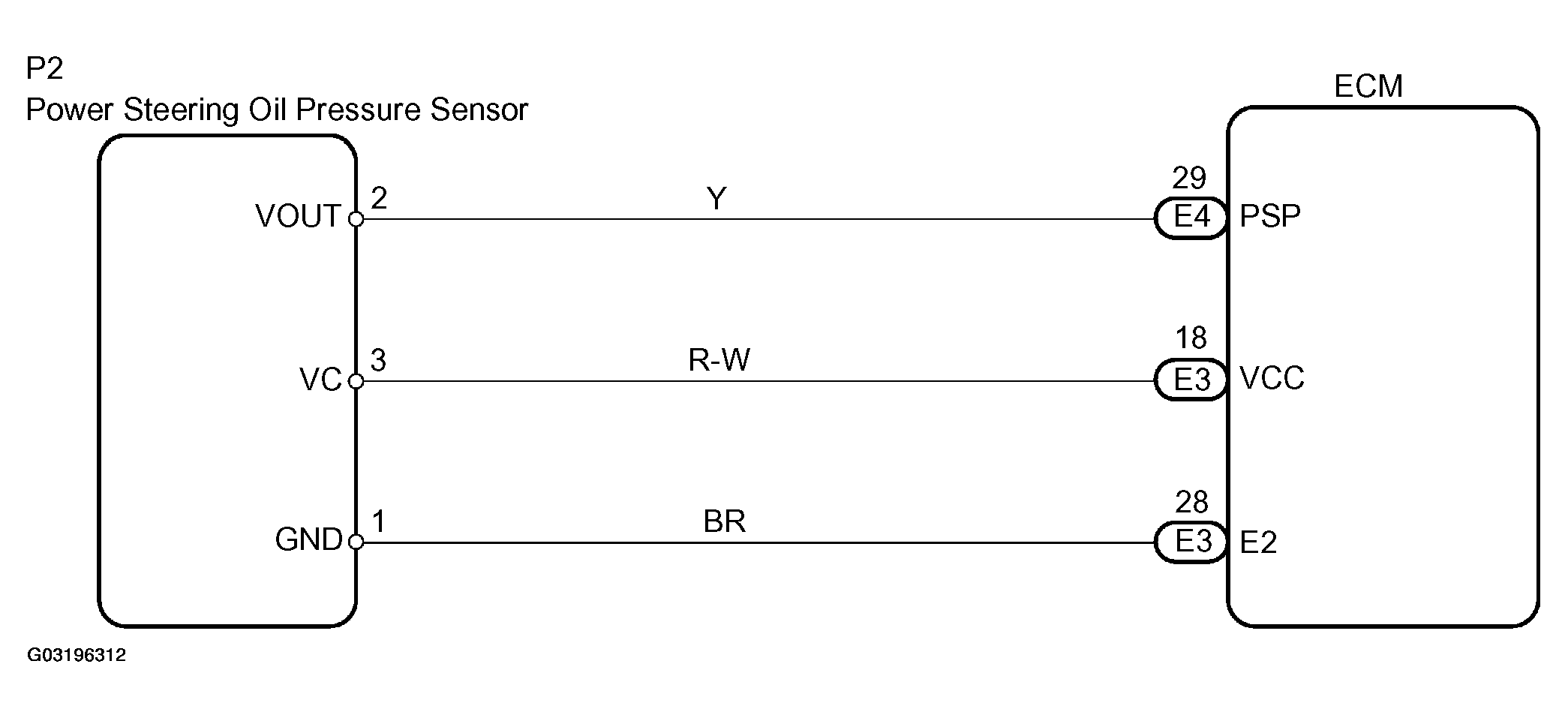

Fig 1: Power Steering Pressure Sensor/Switch Wiring Diagram
G03196312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
