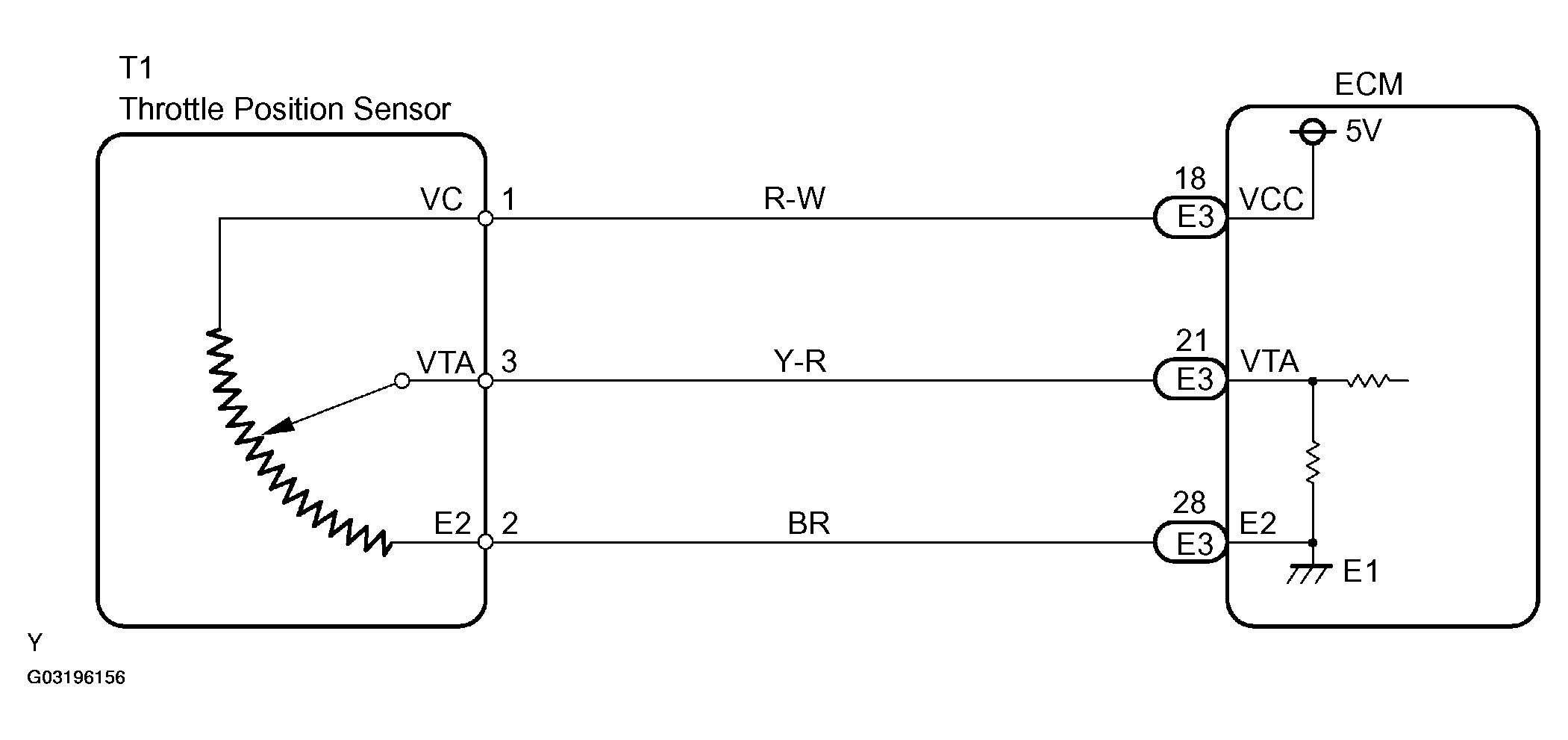

DTC P0120, P0122, P0123: Throttle/Pedal Position Sensor/Switch "A" Circuit, Throttle/Pedal Position Sensor/Switch "A" Circuit Low Input , Throttle/Pedal Position Sensor/Switch "A" Circuit High Input: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
