Inspection Procedure
HINT:
Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
- READ VALUE OF HAND-HELD TESTER (ECM)
- Operate the hand-held tester according to the steps on the display and select the DATA LIST.
ECM:
ITEM DIAGNOSTIC NOTEItem Measurement Item/ Range (Display) Normal Condition Diagnostic Note Engine SPD Engine speed/ Min.: 0 rpm, Max.: 16,383 rpm Almost equal to the actual engine speed (When engine is running) -
OK : Engine speed on tester is almost equal to actual engine speed.
- NG : Go to SFI SYSTEM (See LOCATION )
- OK : GO TO NEXT STEP.
- Operate the hand-held tester according to the steps on the display and select the DATA LIST.
- INSPECT COMBINATION METER ASSY
INSPECTION USING OSCILLOSCOPE
- Check the input signal waveform.
- Remove the combination meter but do not disconnect the connector.
- Connect the oscilloscope to terminal C10-11 and body ground.
- Start the engine.
- Check the signal waveform according to COMBINATION METER
.COMBINATION METER
Item Condition Tool setting 5V/DIV., 10 msec./DIV. Vehicle condition Engine idling
OK : As shown in Fig 2 .
- NG : Go to step 3
- OK : REPLACE COMBINATION METER ASSY (See COMBINATION METER ASSY )
- Check the input signal waveform.

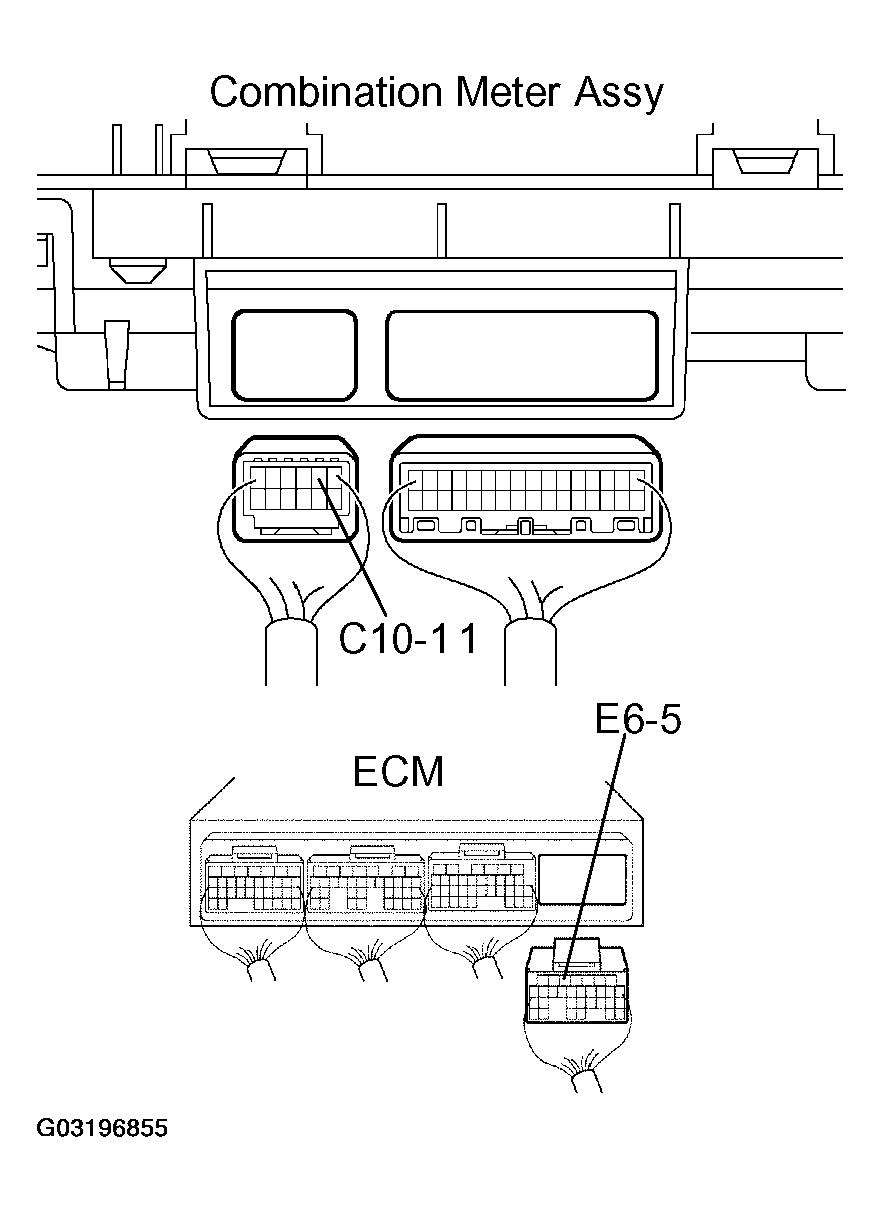

- CHECK HARNESS AND CONNECTOR (ECM - COMBINATION METER ASSY)
- Disconnect the C10 and E6 connectors.
- Measure the resistance between the terminals. Standard:ECM - COMBINATION METER ASSY
Tester Connection Specified Condition C10-11 - E6-5 Below 1 Ω C10-11 - Body ground 10 KΩ or higher
- NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK : REPLACE ECM (See REPLACEMENT )
