Starter ASSY: Replacement

REMOVE ENGINE UNDER COVER LH
1. Remove the 4 bolts and nut and then remove the engine under cover.

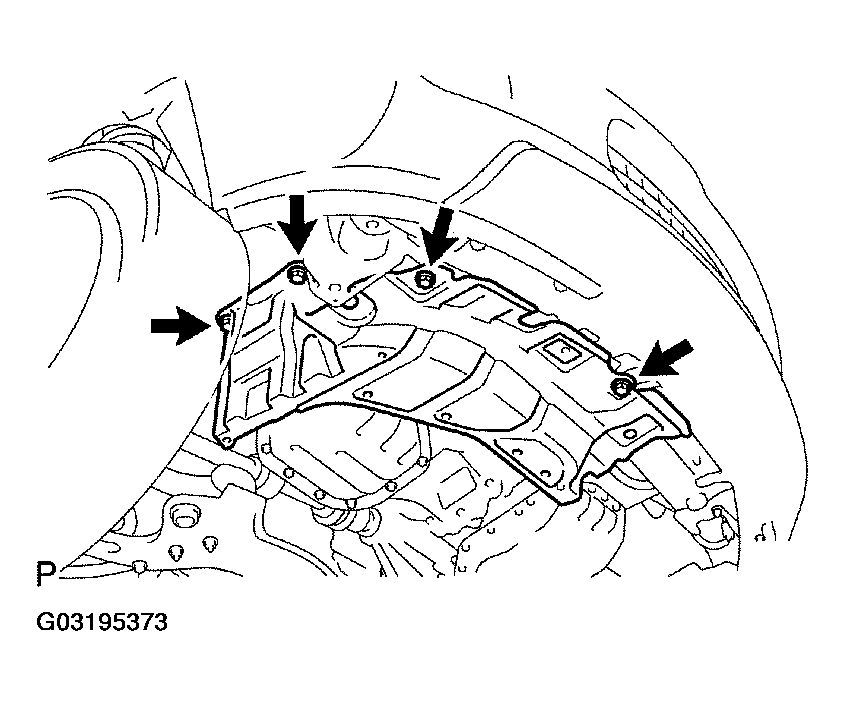

  Fig 1: Removing Engine Under Cover LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE UNDER COVER RH
1. Remove the 4 bolts and engine under cover.

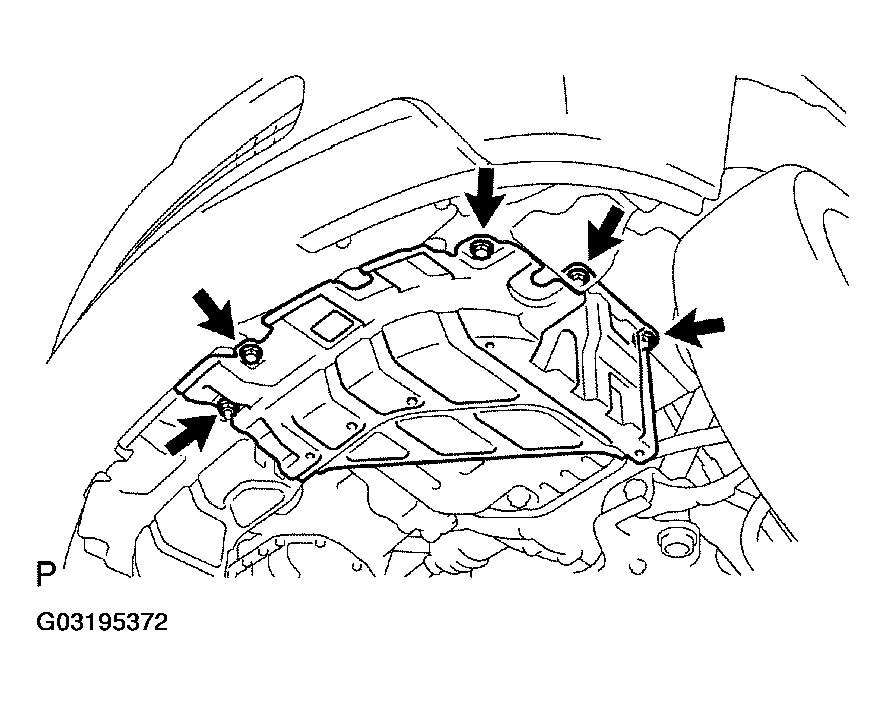

  Fig 2: Removing Engine Under Cover RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLYWHEEL HOUSING SIDE COVER
1. Remove the flywheel housing side cover by pulling out as shown in the illustration.

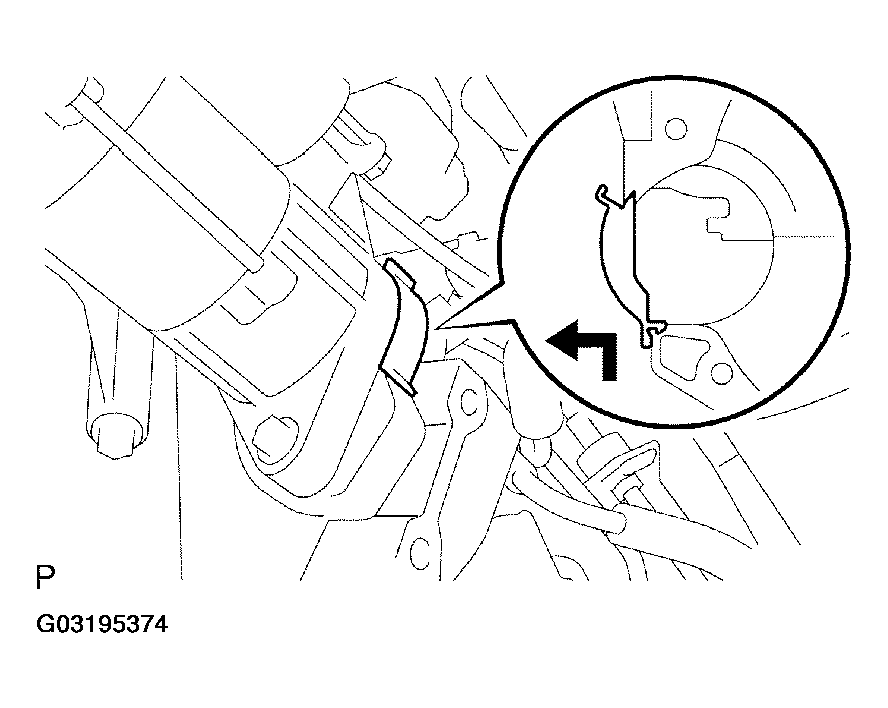

  Fig 3: Removing Flywheel Housing Side Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STARTER ASSY
1. Remove the nut and starter wire.
2. Disconnect the starter connector.
3. Remove the 2 bolts and starter.

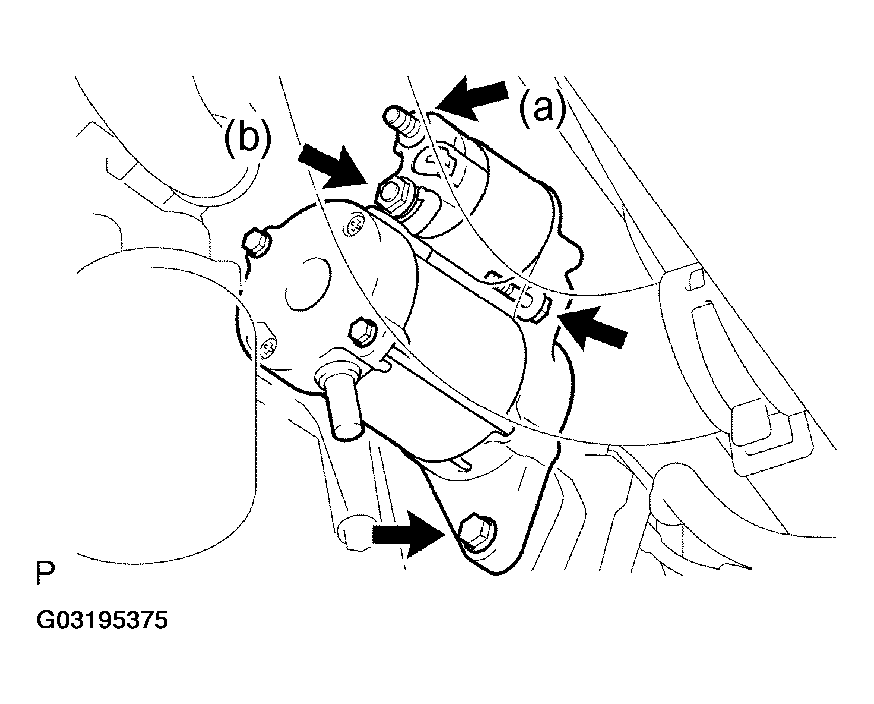

  Fig 4: Removing Starter Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STARTER ASSY
Torque:

37 N.m (377 kgf.cm, 27 ft.lbf) for bolt

9.8 N.m (100 kgf.cm, 7 ft.lbf) for nut
INSTALL FLYWHEEL HOUSING SIDE COVER
NOTE:
- Insert the claw until it makes a "click" sound when installing the flywheel housing side cover.
- If the claw is deformed, replace the flywheel housing side cover.
INSTALL ENGINE UNDER COVER RH
Torque:

5.0 N.m (51 kgf.cm, 44 in.lbf) for bolt

5.0 N.m (51 kgf.cm, 44 in.lbf) for nut
INSTALL ENGINE UNDER COVER LH
Torque:

5.0 N.m (51 kgf.cm, 44 in.lbf) for bolt

5.0 N.m (51 kgf.cm, 44 in.lbf) for nut
