Starter ASSY: Components

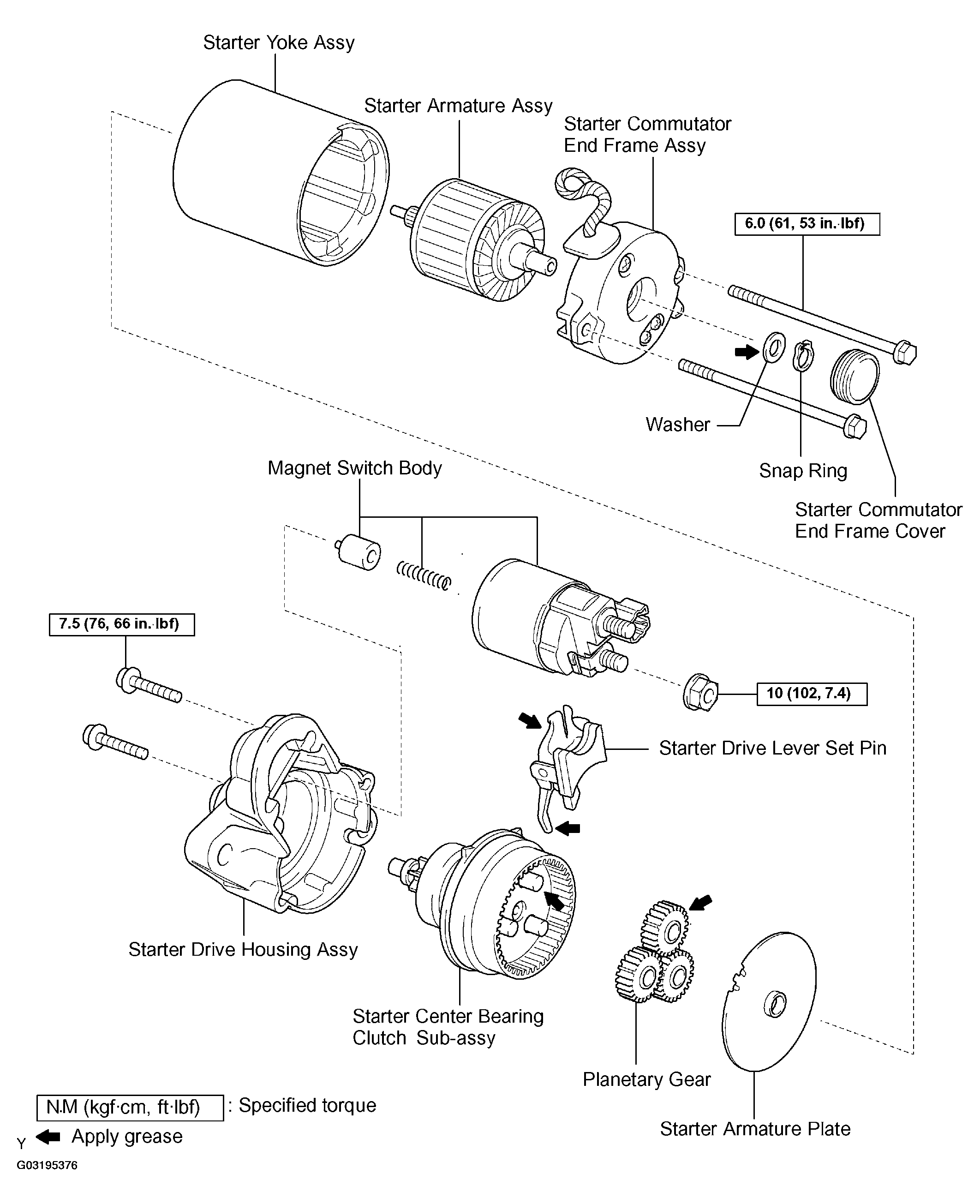

Fig 1: Exploded View Of Starter

G03195376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
