Power Door Lock Control System: Location

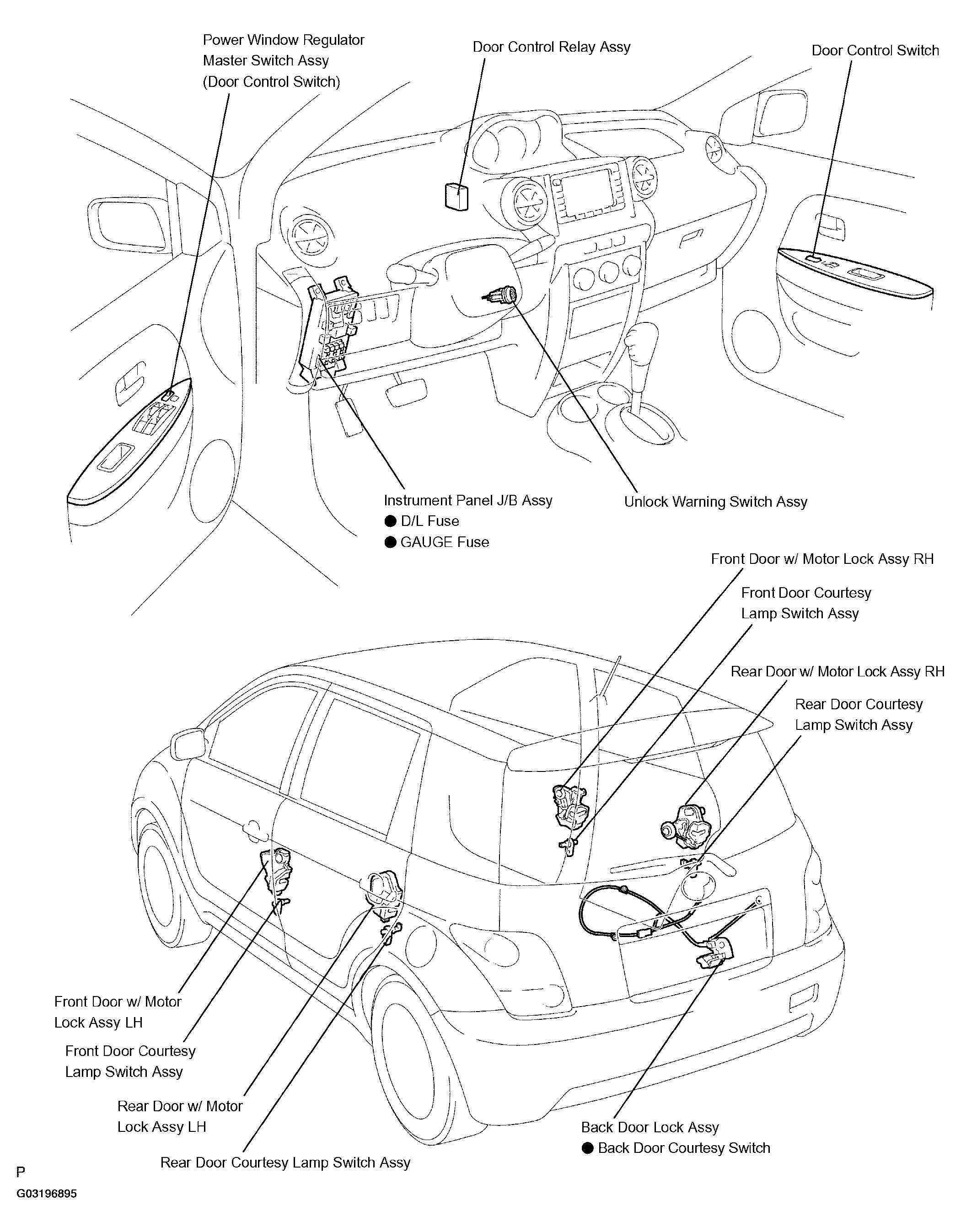

Fig 1: Identifying Power Door Lock Control System Component Location

G03196895

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
