Steering Sensor Communication Stop Mode: Wiring Diagram

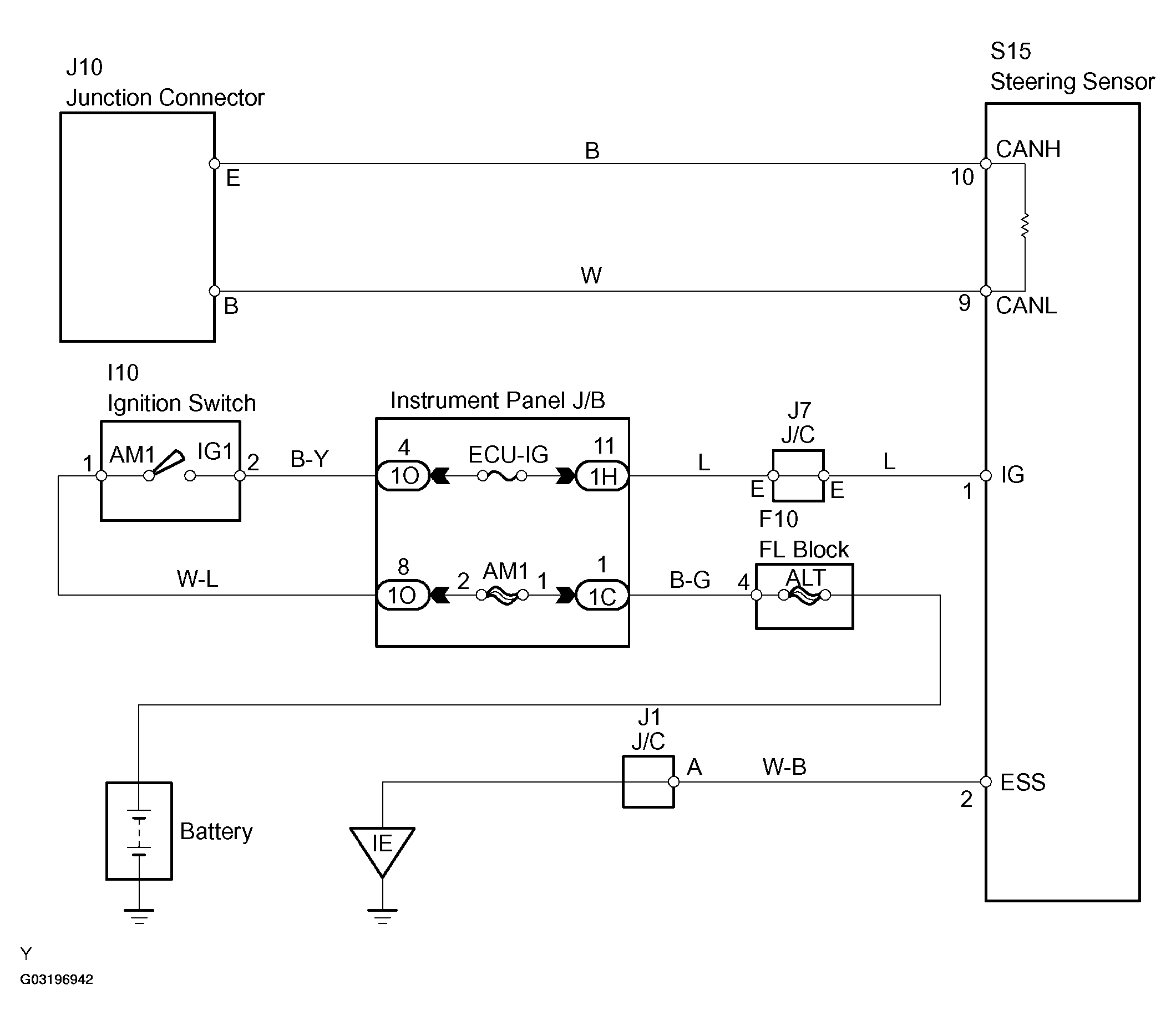

Fig 1: Wiring Diagram - Steering Sensor Communication Stop Mode

G03196942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
