Can Communication System: Location

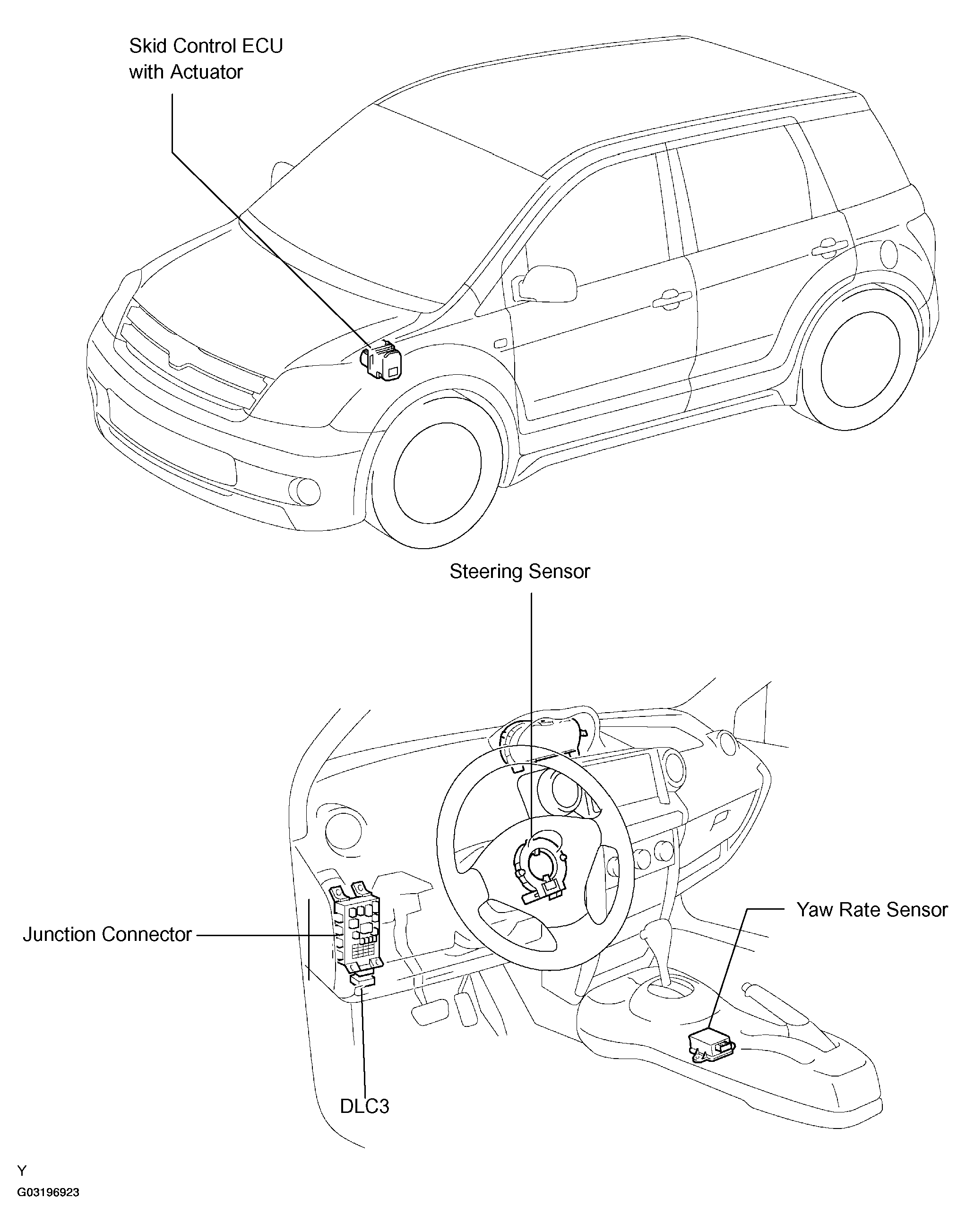

Fig 1: Locating CAN Communication System Electrical Components

G03196923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
