Check Can Main Bus Line For Disconnection: Wiring Diagram

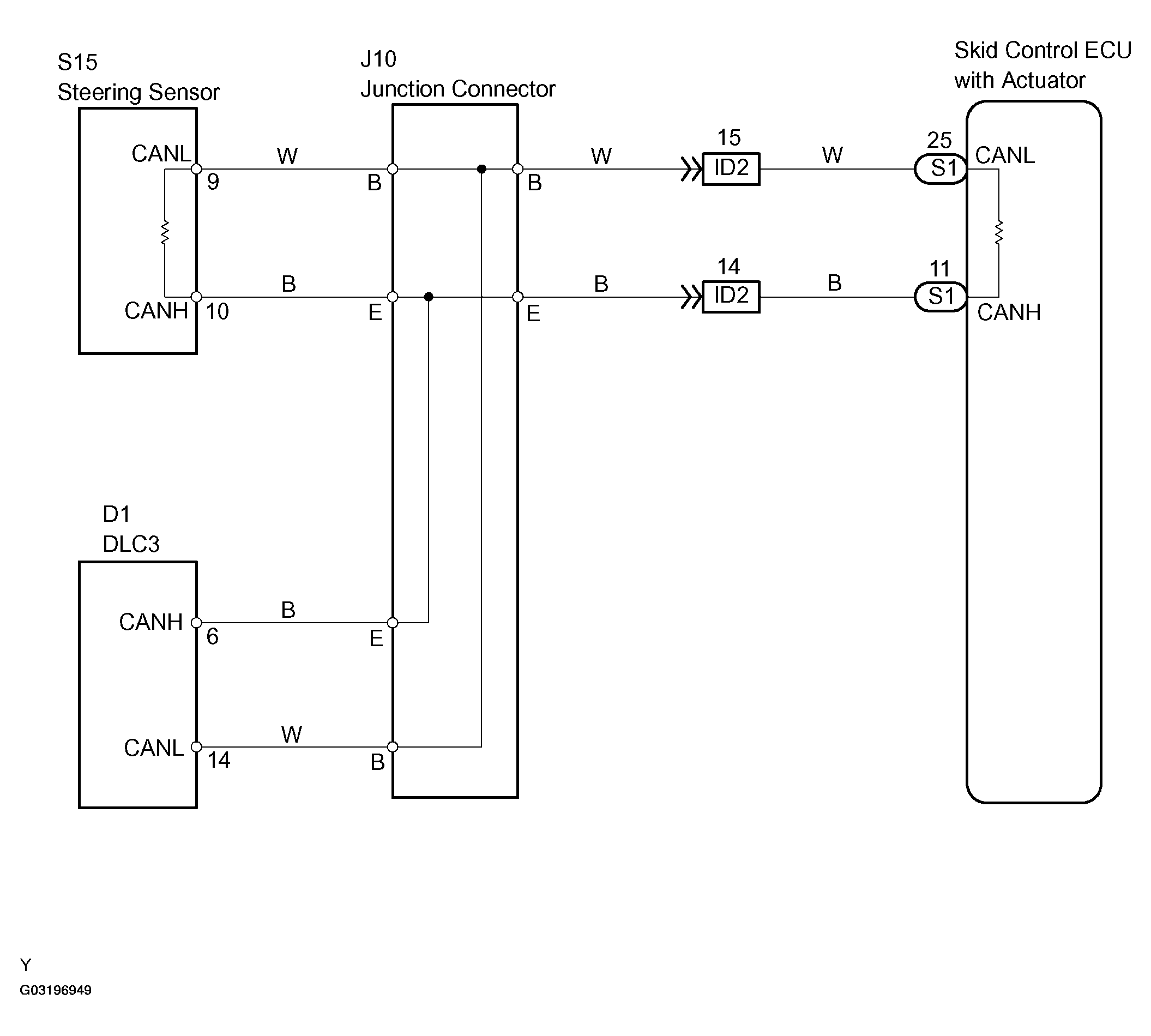

Fig 1: Wiring Diagram - CAN Main Bus Line For Disconnection

G03196949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
