Generator ASSY: Components

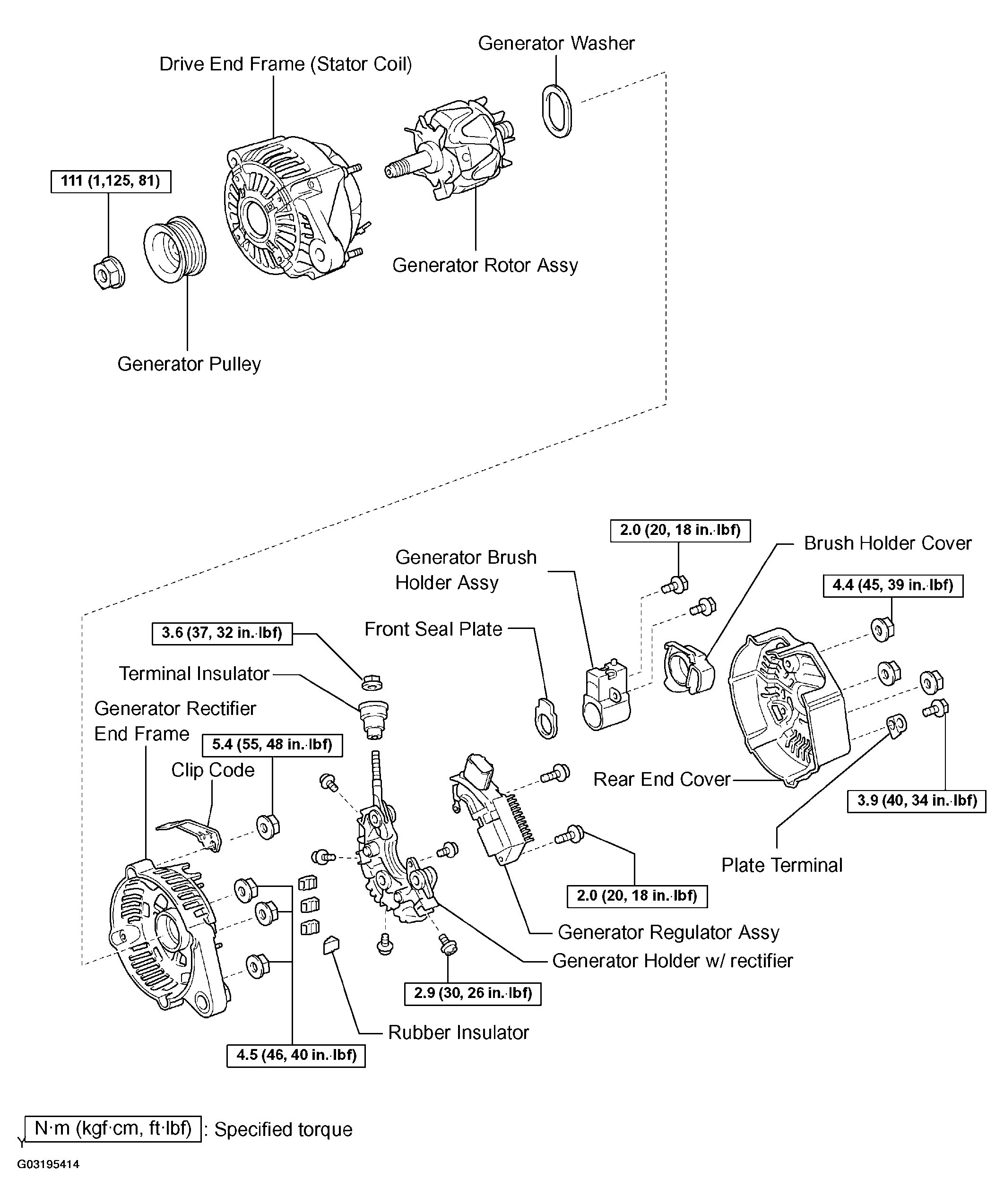

Fig 1: Exploded View Of Generator Assy

G03195414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
