Transmission Wire (ATM): Replacement

REMOVE TRANSMISSION VALVE BODY ASSY (SEE TRANSMISSION VALVE BODY ASSY (ATM) )
REMOVE TRANSMISSION WIRE
1. Remove the bolt and transmission wire.

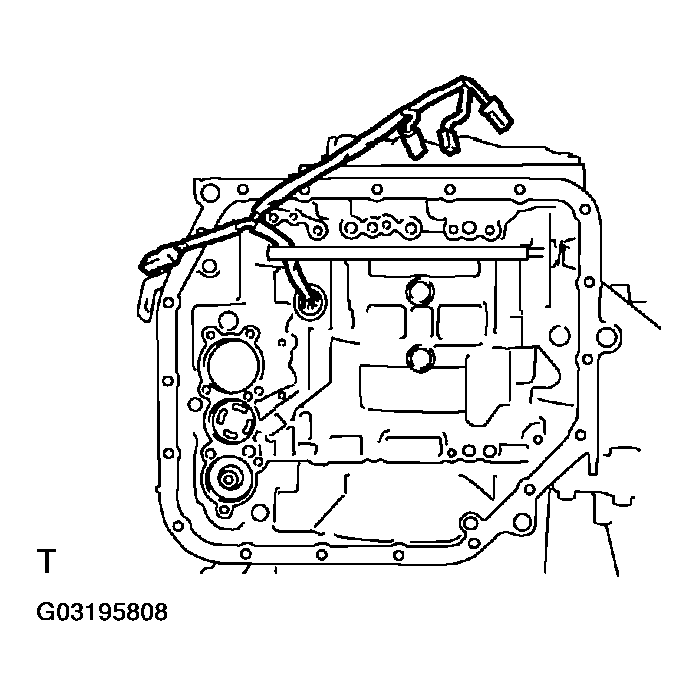

  Fig 1: Removing Bolt & Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION WIRE
1. Coat an O-ring with ATF.
2. Install the transmission wire.

  Fig 2: Installing Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the bolt.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

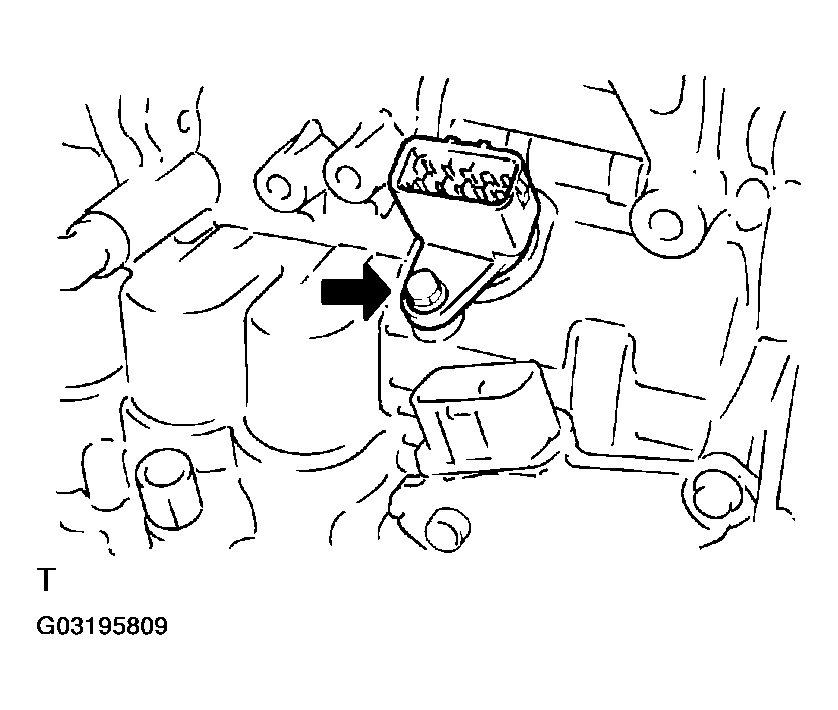

  Fig 3: Installing Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION VALVE BODY ASSY (SEE TRANSMISSION VALVE BODY ASSY (ATM) )
