Shift Lock Solenoid (ATM): Inspection

INSPECT SHIFT LOCK SOLENOID
1. Disconnect the solenoid connector.
2. Apply battery positive voltage between terminals 1 and 2.
3. Check that operation noise can be heard from the solenoid.
  If the solenoid does not operate, replace the solenoid.

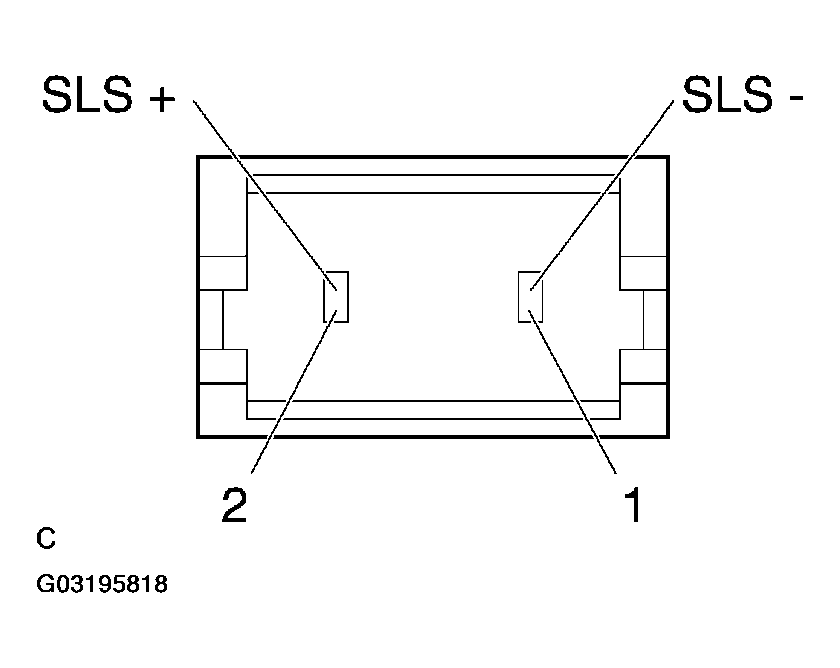

  Fig 1: Inspecting Shift Lock Solenoid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
