Park/Neutral Position Switch ASSY (ATM): Replacement

REMOVE BATTERY
SEPARATE TRANSMISSION CONTROL CABLE ASSY

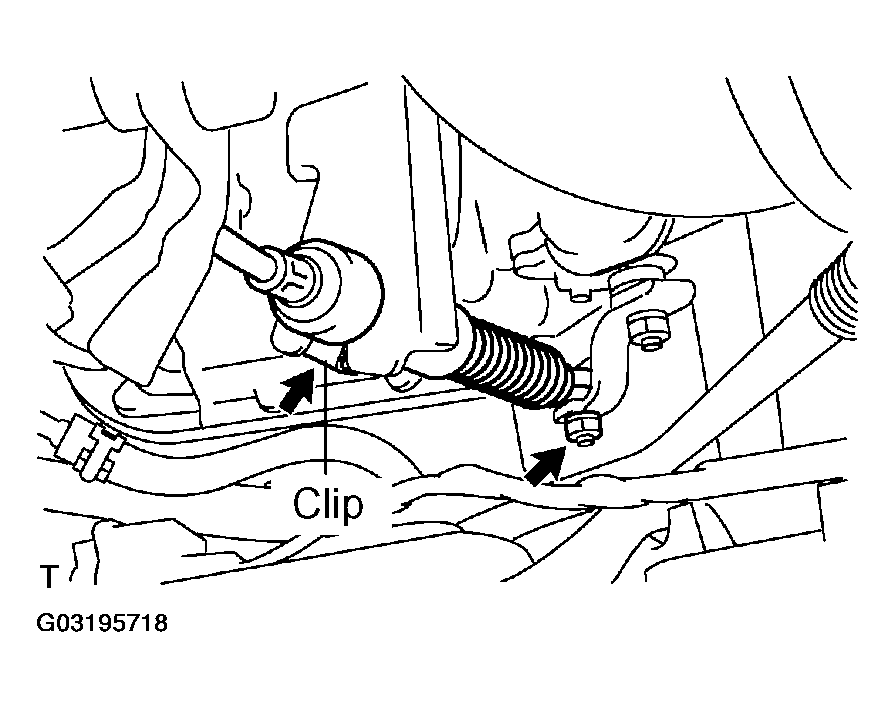

1. Remove the nut and disconnect the control cable from the control shaft lever.
2. Remove the clip and disconnect the control cable from the control cable bracket.

  Fig 1: Disconnecting Control Cable From Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARK/NEUTRAL POSITION SWITCH ASSY
1. Disconnect the connector from the park/neutral position switch assy.

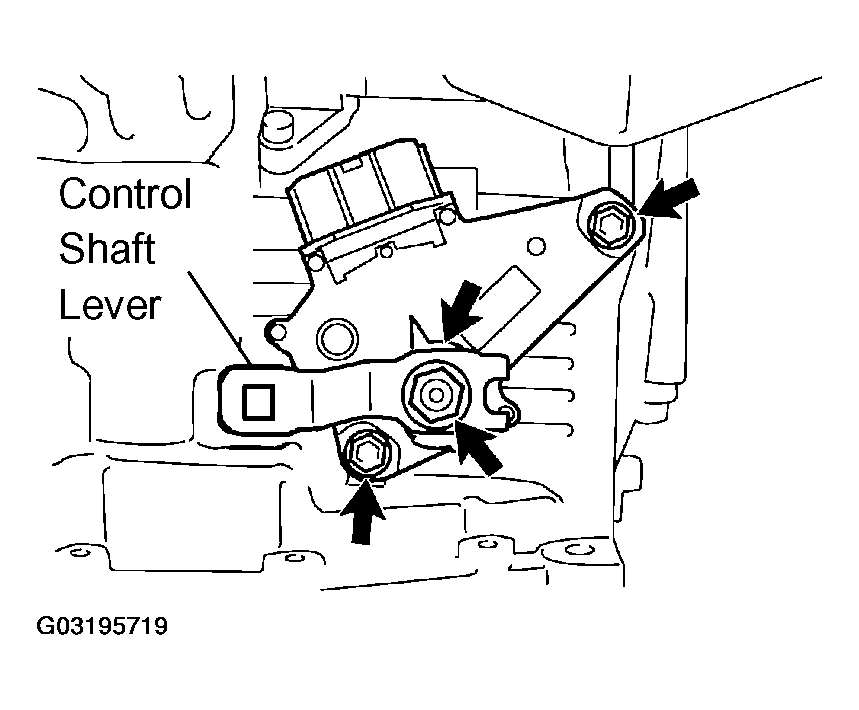

2. Remove the nut, washer and control shaft lever.
3. Pry out the lock plate and remove the manual valve shaft nut.

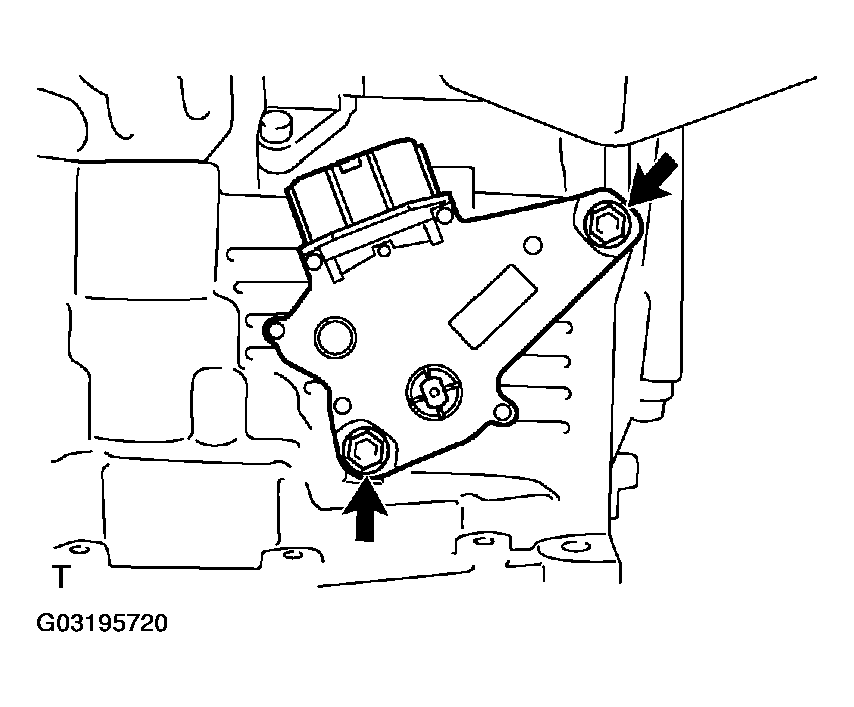

4. Remove the 2 bolts and pull out the park/neutral position switch assy.

  Fig 2: Removing Park/Neutral Position Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
1. Install the park/neutral position switch assy to the manual valve shaft.
2. Temporarily install the 2 bolts.

  Fig 3: Installing Park/Neutral Position Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

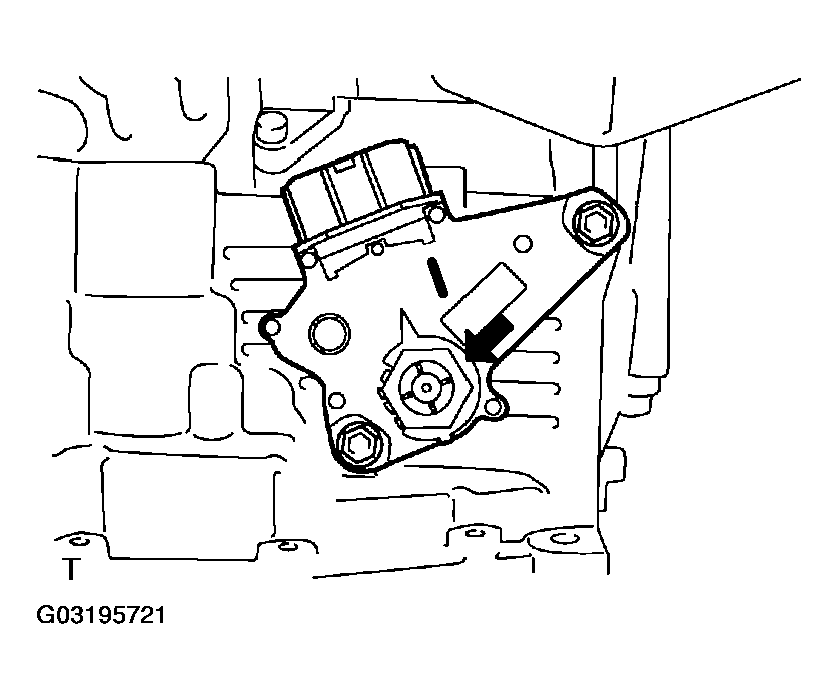

3. Place the lock plate with a new one and tighten the manual valve shaft nut.
  Torque: 6.9 N.m (70 kgf.cm, 61 in.lbf)
4. Temporarily install the control shaft lever.

  Fig 4: Tightening Manual Valve Shaft Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

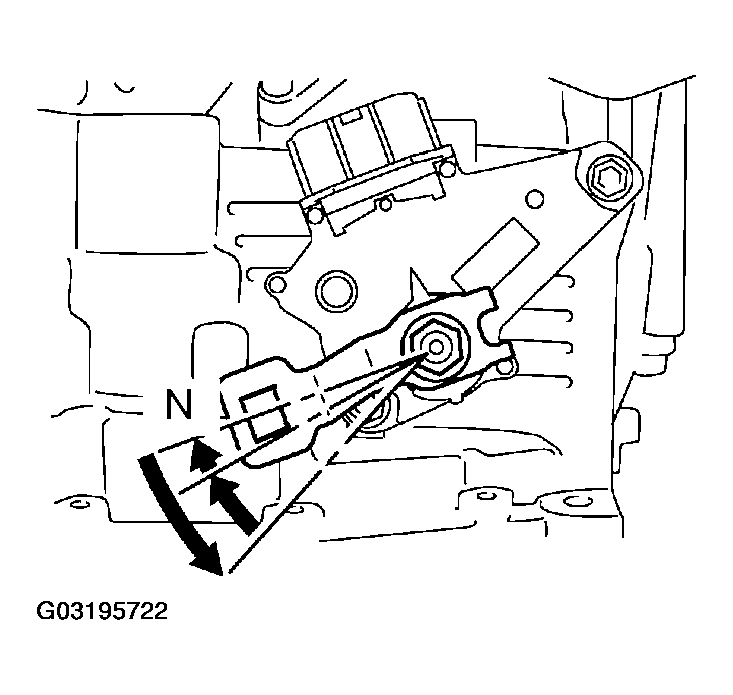

5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
6. Remove the control shaft lever.

  Fig 5: Turning Lever Counterclockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

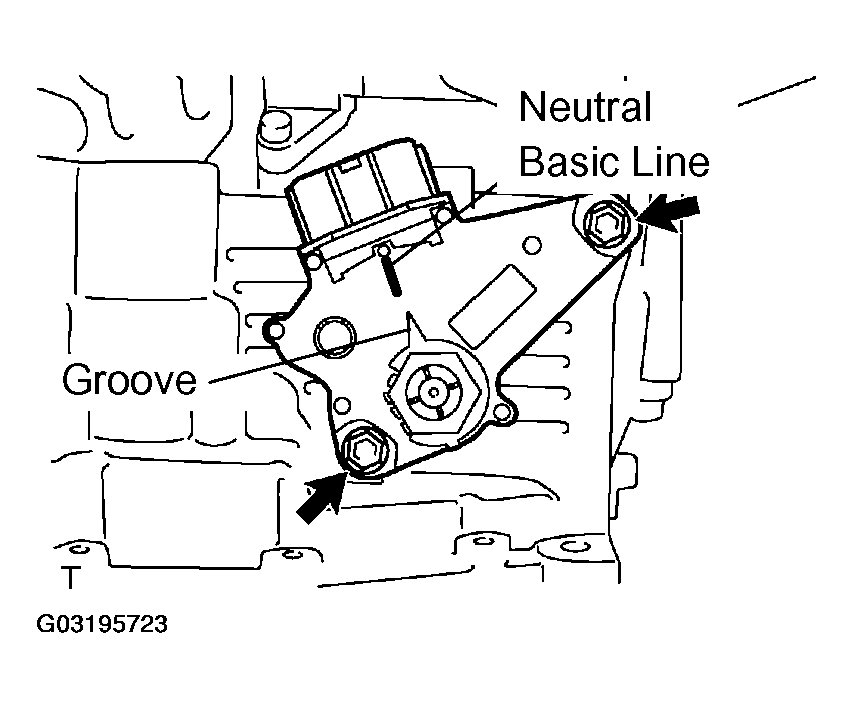

7. Align the groove with neutral basic line.
8. Hold the switch in this position and tighten the 2 bolts.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

  Fig 6: Aligning Groove With Neutral Basic Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

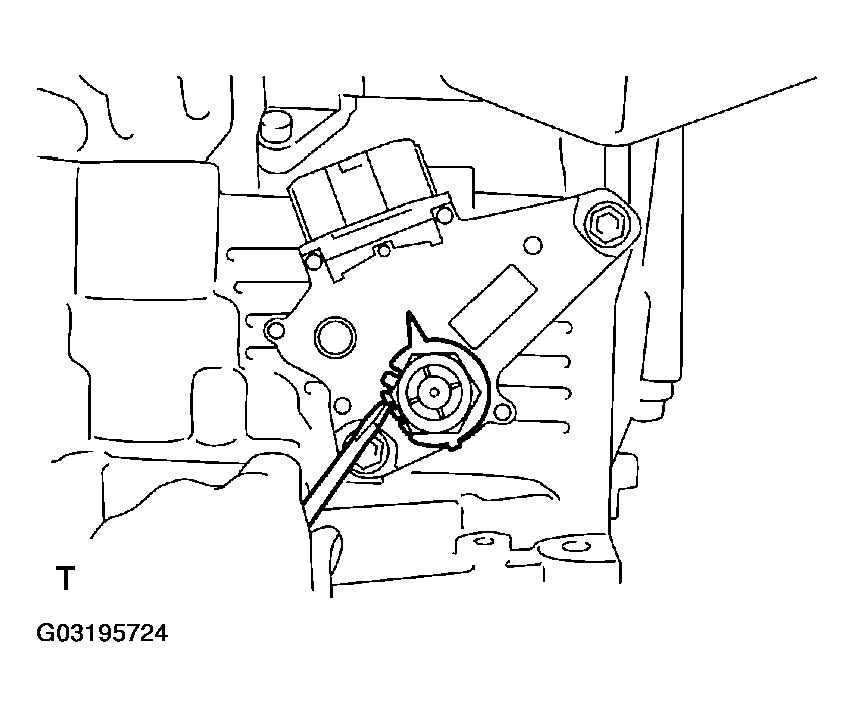

9. Using a screwdriver, stake the nut with the lock plate.

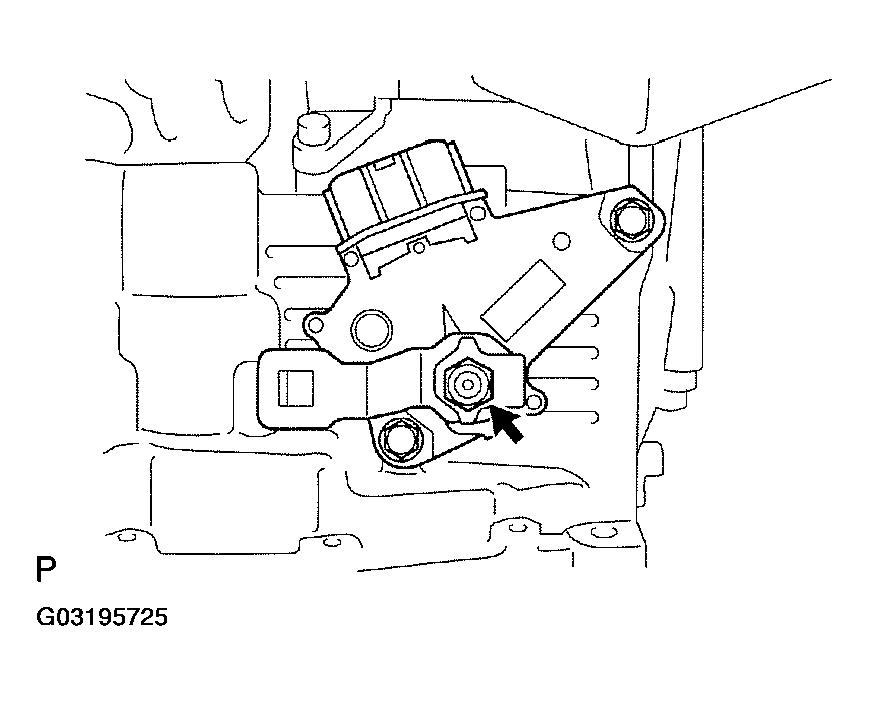

10. Install the control shaft lever, washer, and nut.
  Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
11. Connect the connector to the park/neutral position switch assy.

  Fig 8: Connecting Connector To Park/Neutral Position Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Temporarily install the control cable to the control shaft lever with the nut.
2. Install the control cable to the bracket with the new clip.

  Fig 9: Installing Transmission Control Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BATTERY
ADJUST SHIFT LEVER POSITION (SEE ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (SEE ADJUSTMENT )
INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (SEE ADJUSTMENT )
