Floor Shift ASSY (ATM): Components

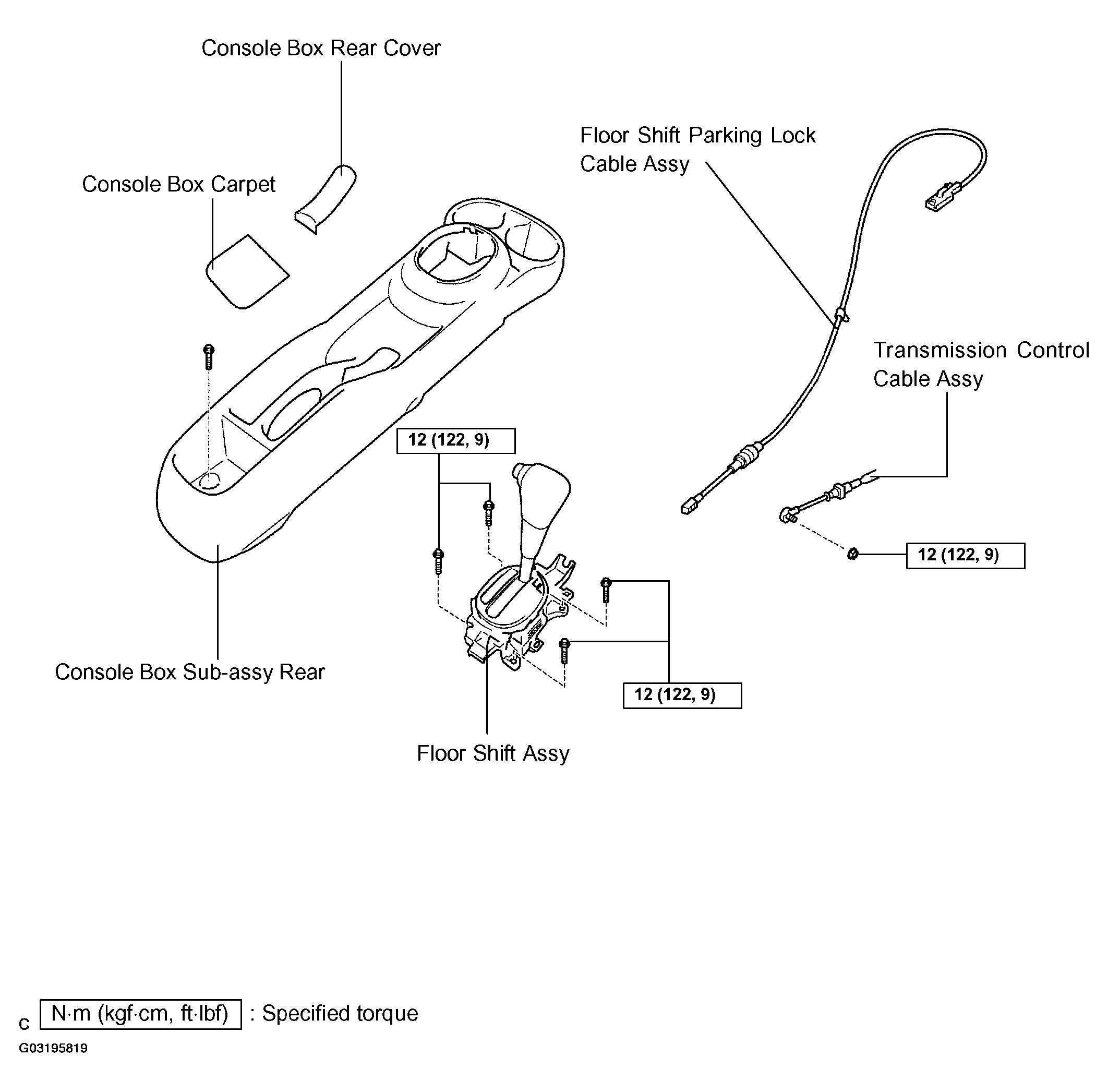

Fig 1: Identifying Floor Shift Assy (ATM) Component (1 Of 2)
G03195819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

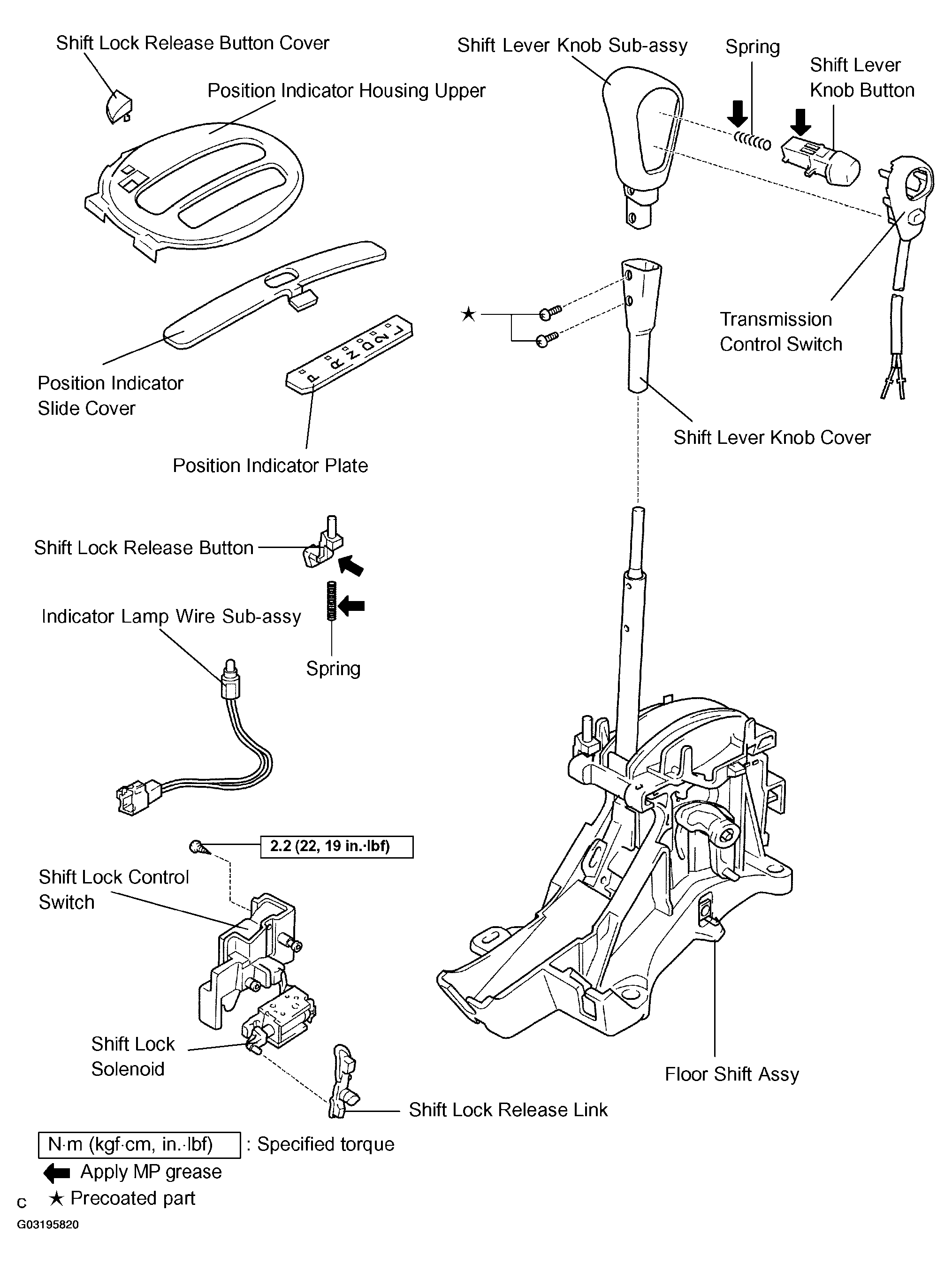

Fig 2: Identifying Floor Shift Assy (ATM) Component (2 Of 2)
G03195820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
