How To Determine Bolt Strength

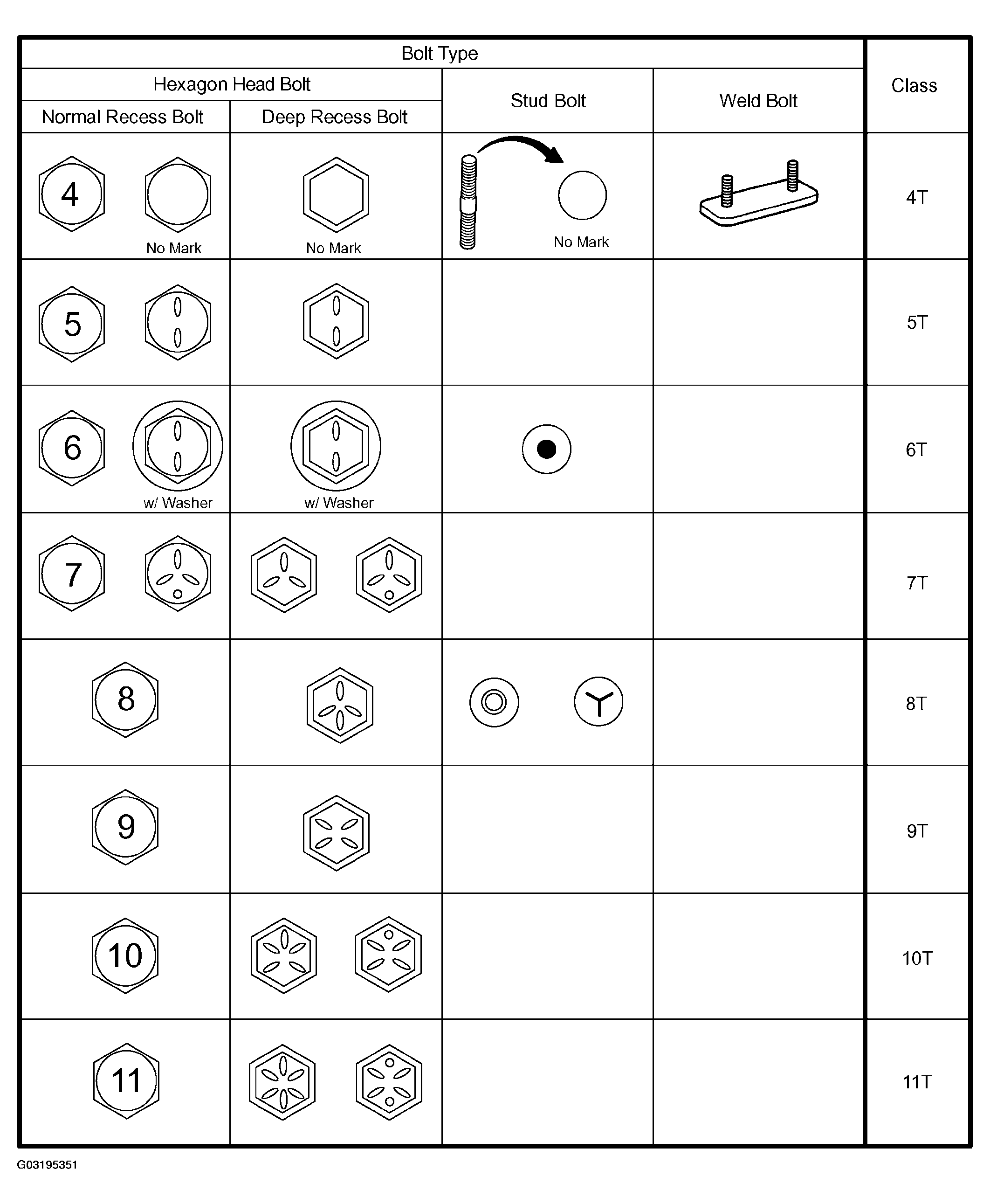

Fig 1: Standard Bolt Table
G03195351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
