PTC P0110, P0112, P0113: Intake Air Temperature Circuit, Intake Air Temperature Circuit Low Input, Intake Air Temperature Circuit High Input: Wiring Diagram

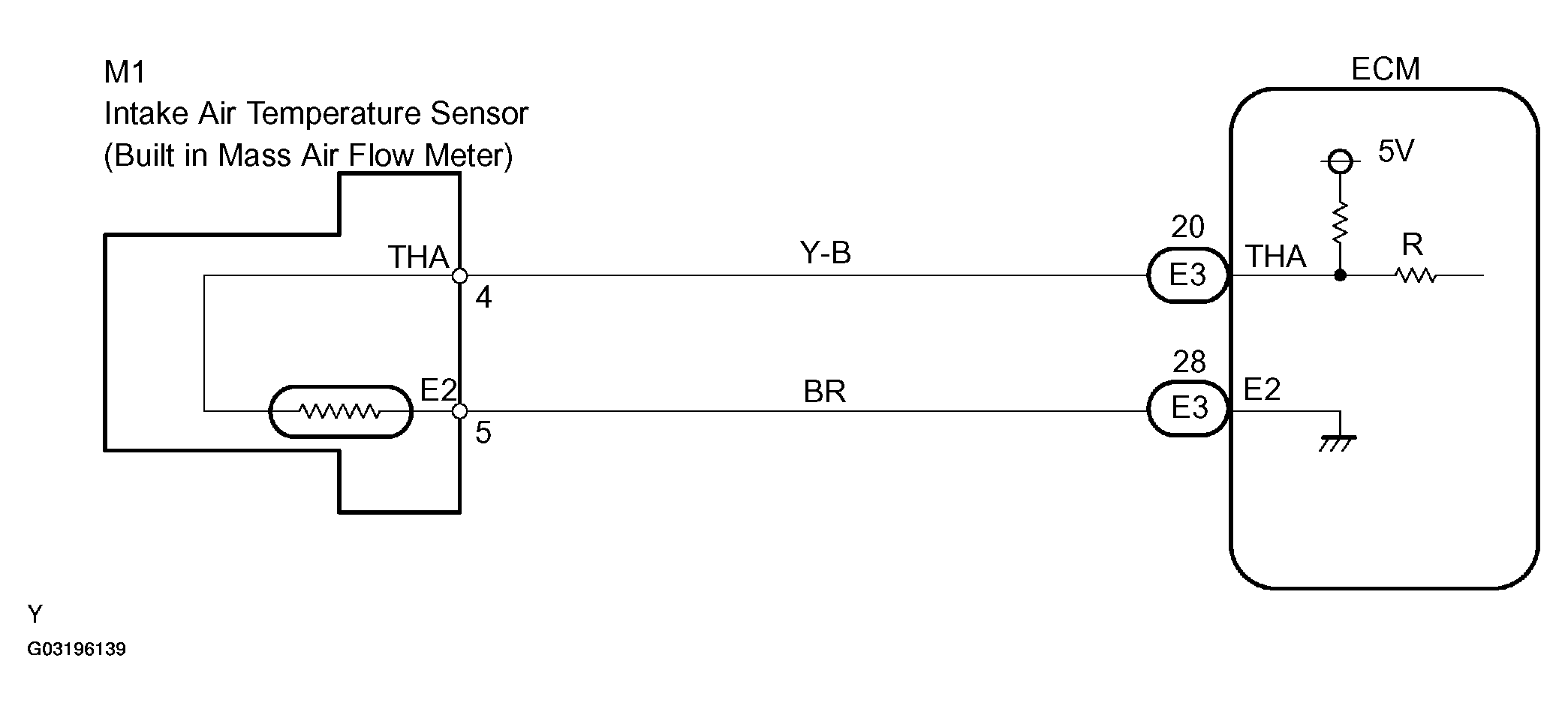

Fig 1: Intake Air Temperature Sensor Wiring Diagram
G03196139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
