Shift Lock Control Switch (ATM): Inspection

  1. INSPECT SHIFT LOCK CONTROL SWITCH
    1. Disconnect the connector of the shift lock control switch.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINAL AND VOLTAGE CONDITION REFERENCE

      Terminal Measuring Condition Specified Value
      A5 (IG) - B2 (SLS+) Switch ON Below 1 Ω
      A5 (IG) - B2 (SLS+) Switch OFF 10 kΩ or higher

      If the result is not as specified, replace the shift lock control switch.

      Fig 1: Disconnecting Connector Of Shift Lock Control Switch
      G03195816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect terminal STP to the battery positive (+) terminal and terminal E to the battery negative (-) terminal, and apply about 12 V between terminals STP and E.
    4. Measure the resistance according to the value(s) in the table below.
      TERMINAL AND VOLTAGE CONDITION REFERENCE

      Terminal Measuring Condition Specified Value
      A1 (E) - B1 (SLS-) Connect Battery Below 1 Ω
      A1 (E) - B1 (SLS-) Disconnect Battery 10 kΩ or higher

      If the result is not as specified, replace the shift lock control switch.

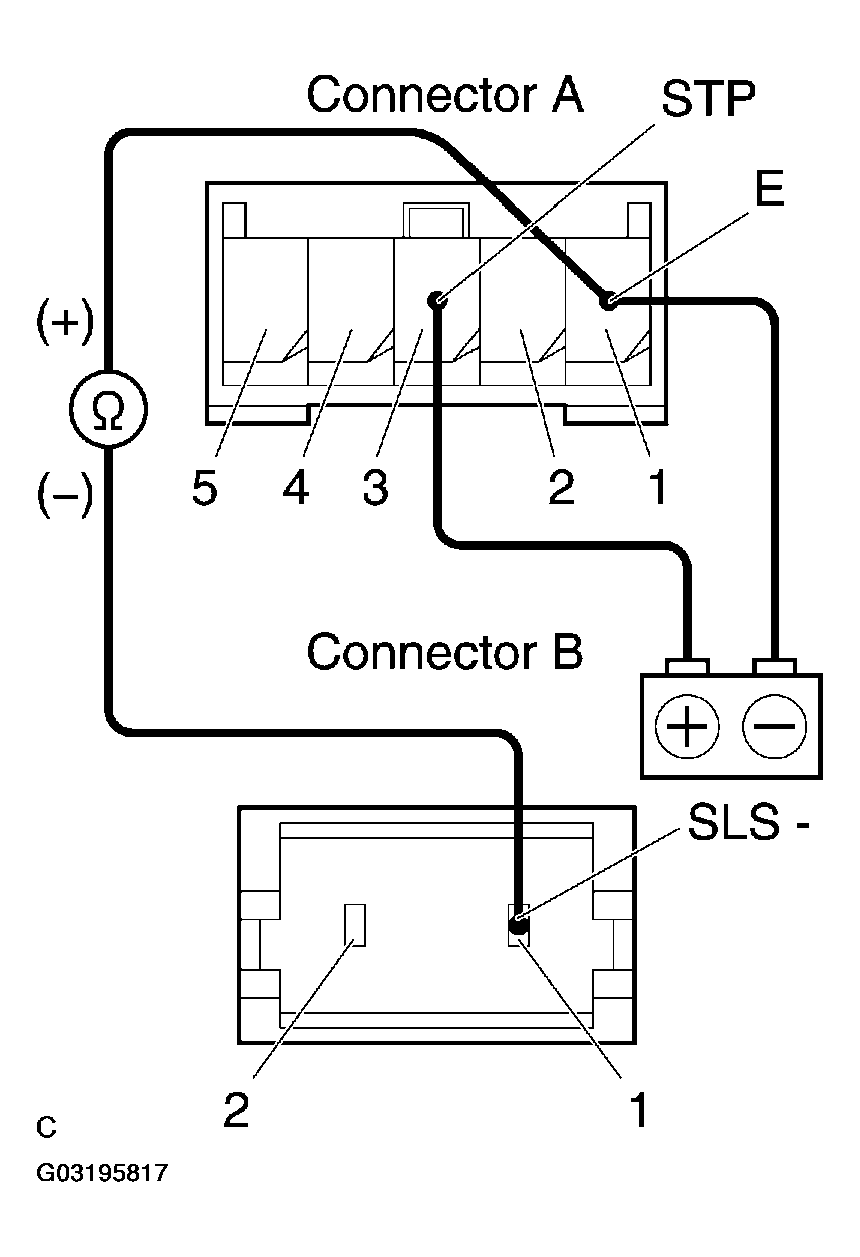

      Fig 2: Connecting Terminal STP To Battery (+) Terminal & Terminal E To Battery (-) Terminal
      G03195817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
