Manual Transaxle (MTM): Components

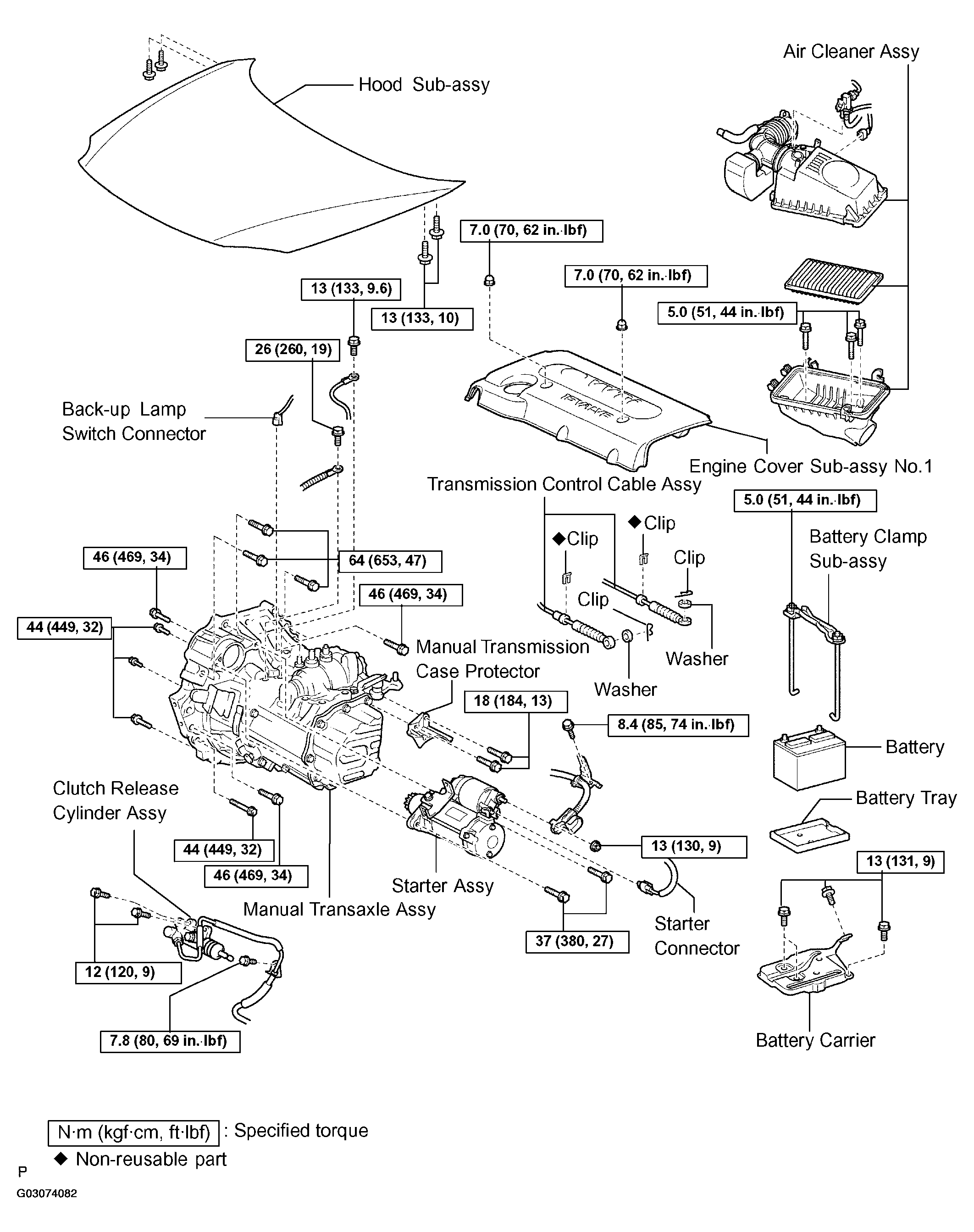

Fig 1: Exploded View Of Replacement Components (1 Of 2)
G03074082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

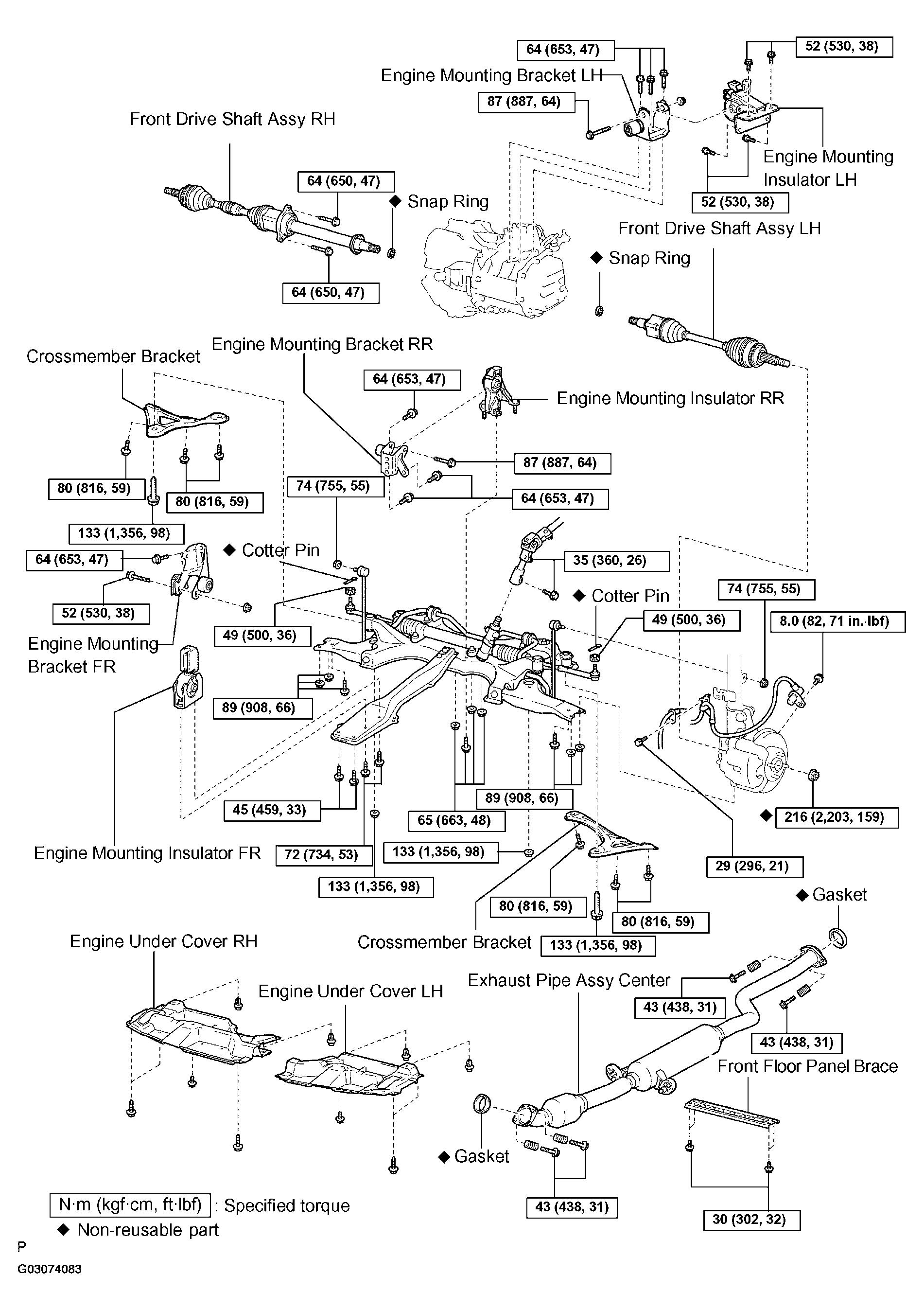

Fig 2: Exploded View Of Replacement Components (2 Of 2)
G03074083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
