Torque Specifications

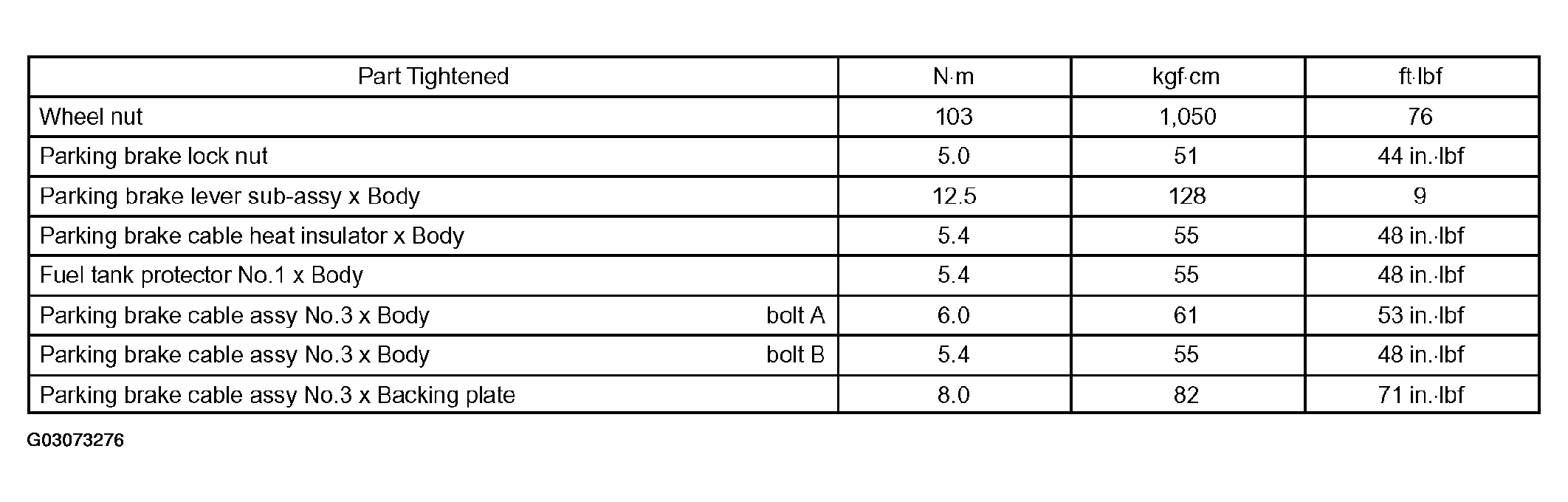

Fig 1: Parking Brake Torque Specification Chart

G03073276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
