tC Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
SFI System (2AZ-FE)
>>
System Diagram
System Diagram

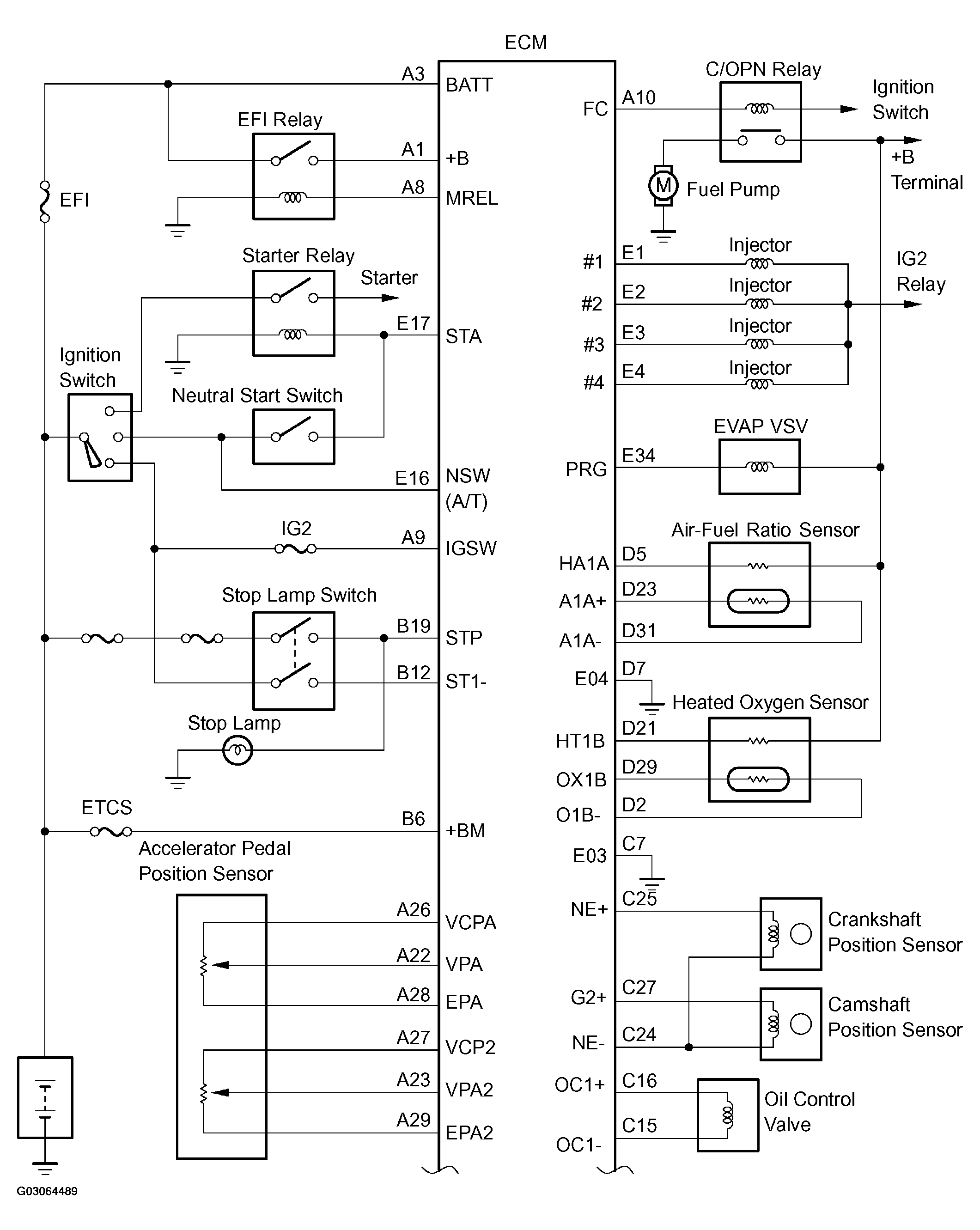

Fig 1: SFI System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

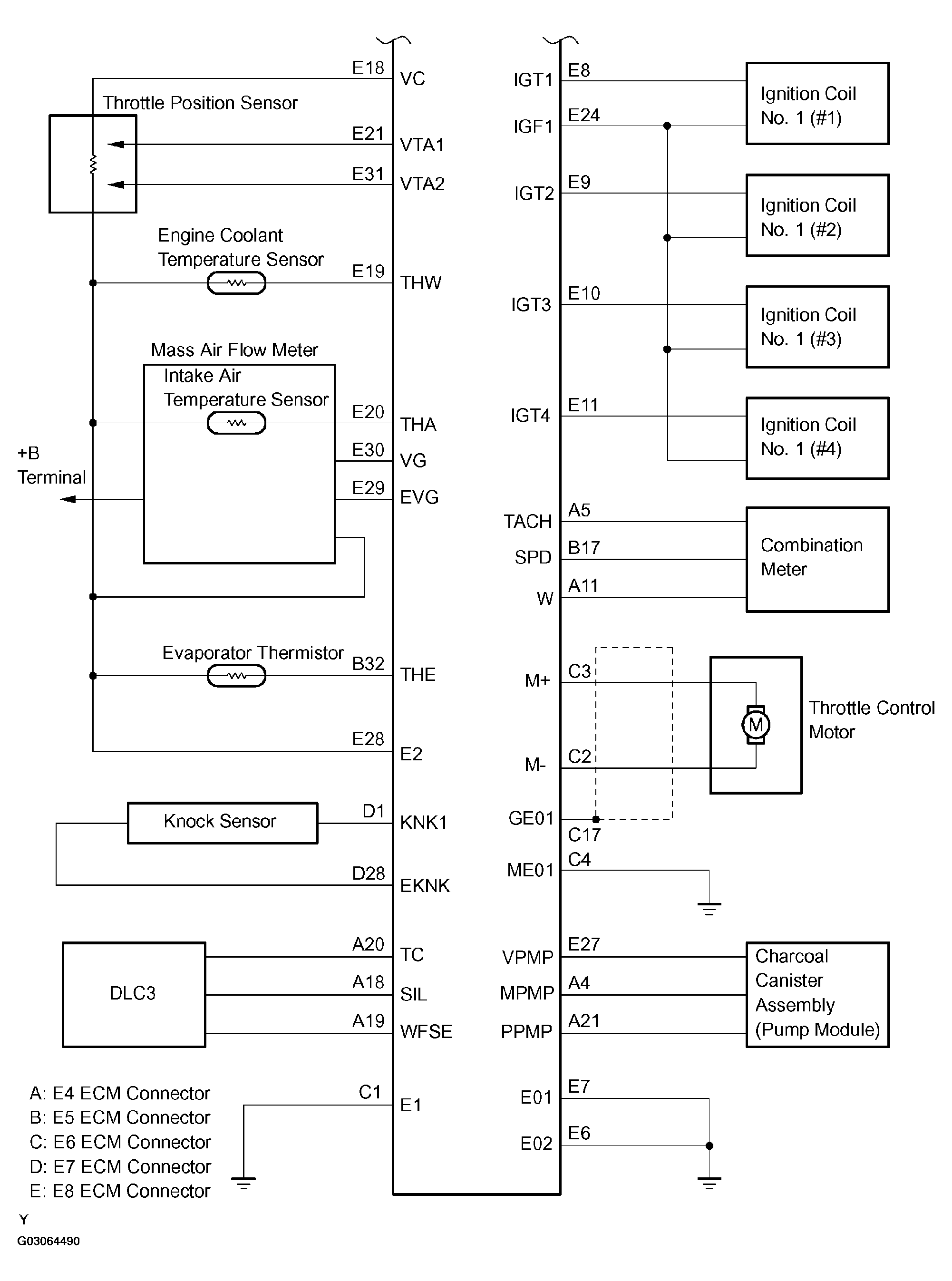

Fig 2: SFI System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
