SFI System (2AZ-FE): Location

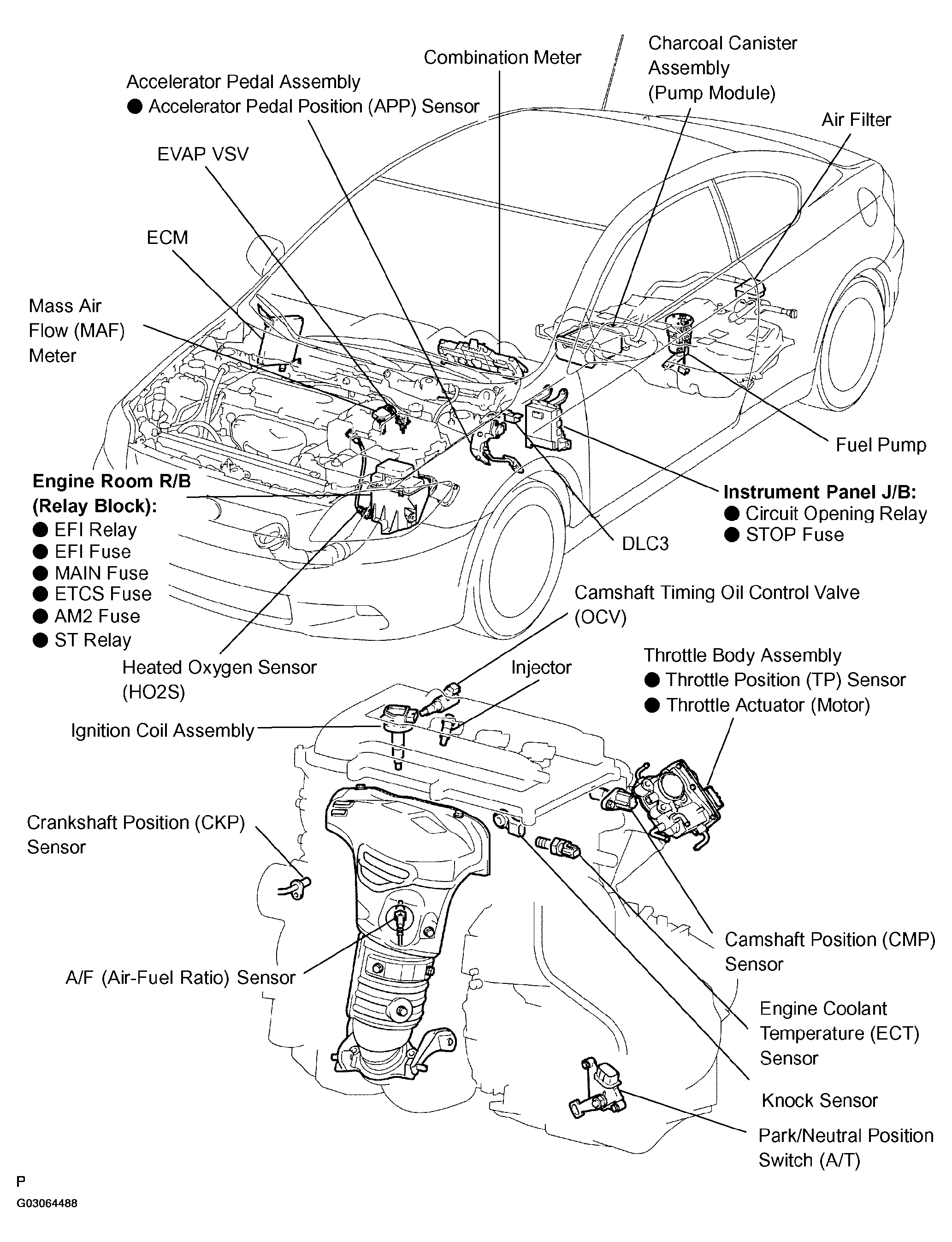

Fig 1: Identifying SFI System Location

G03064488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
