Fuel Injector ASSY (2AZ-FE): Components

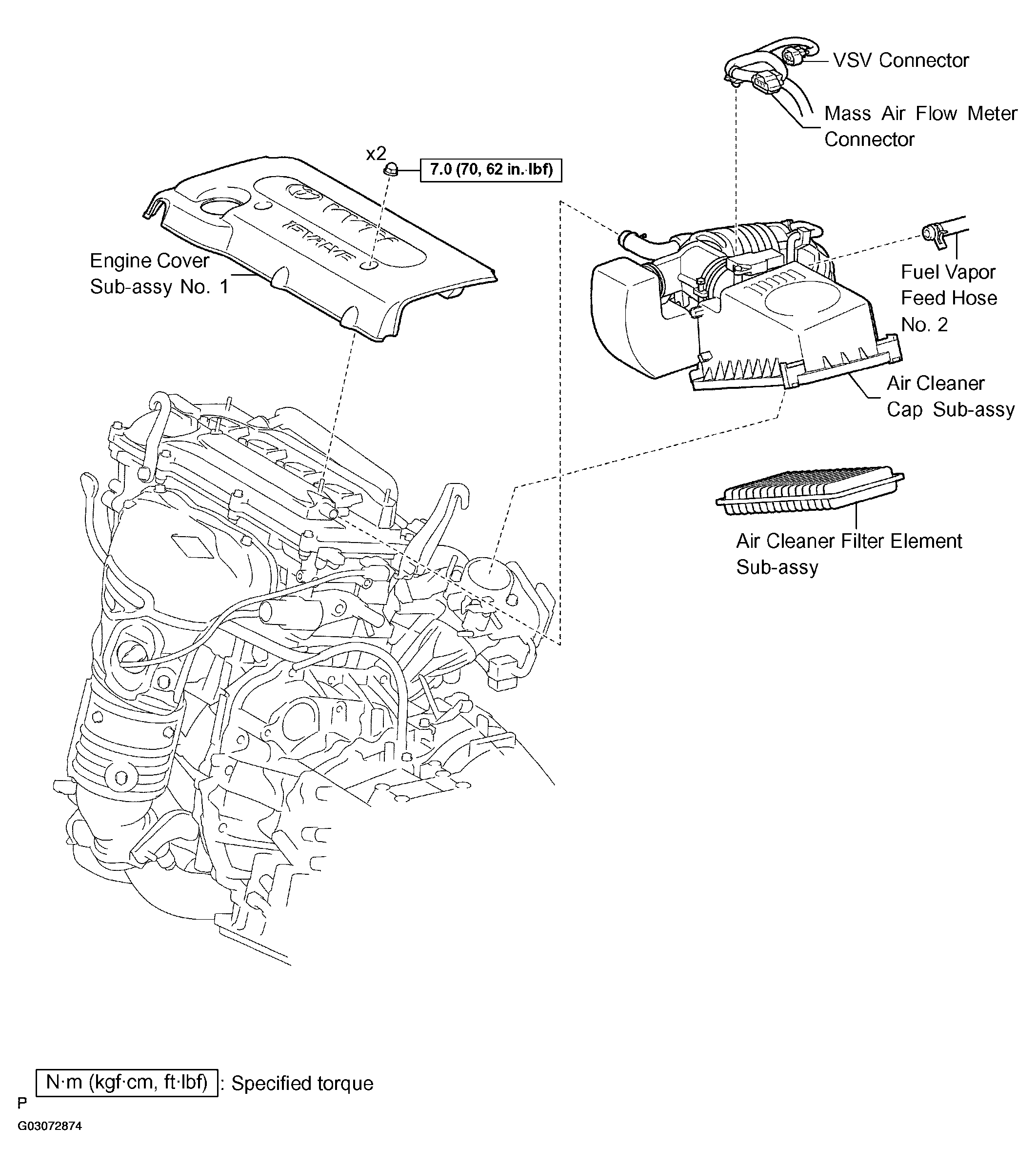

Fig 1: Identifying Fuel Injector Assy (2AZ-FE) Components (1 Of 2)
G03072874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

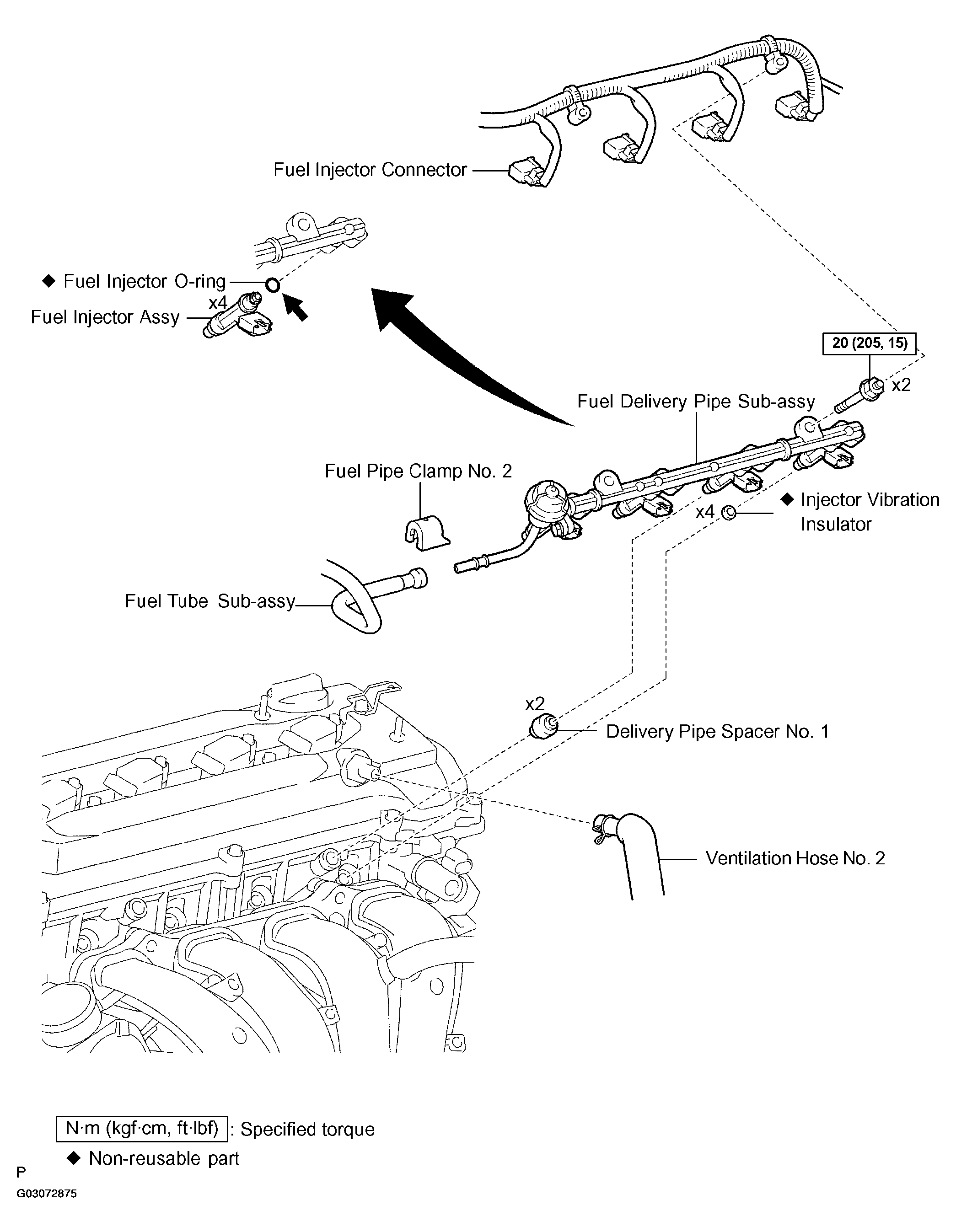

Fig 2: Identifying Fuel Injector Assy (2AZ-FE) Components (2 Of 2)
G03072875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
