Engine Compartment Junction & Relay Blocks
NOTE:

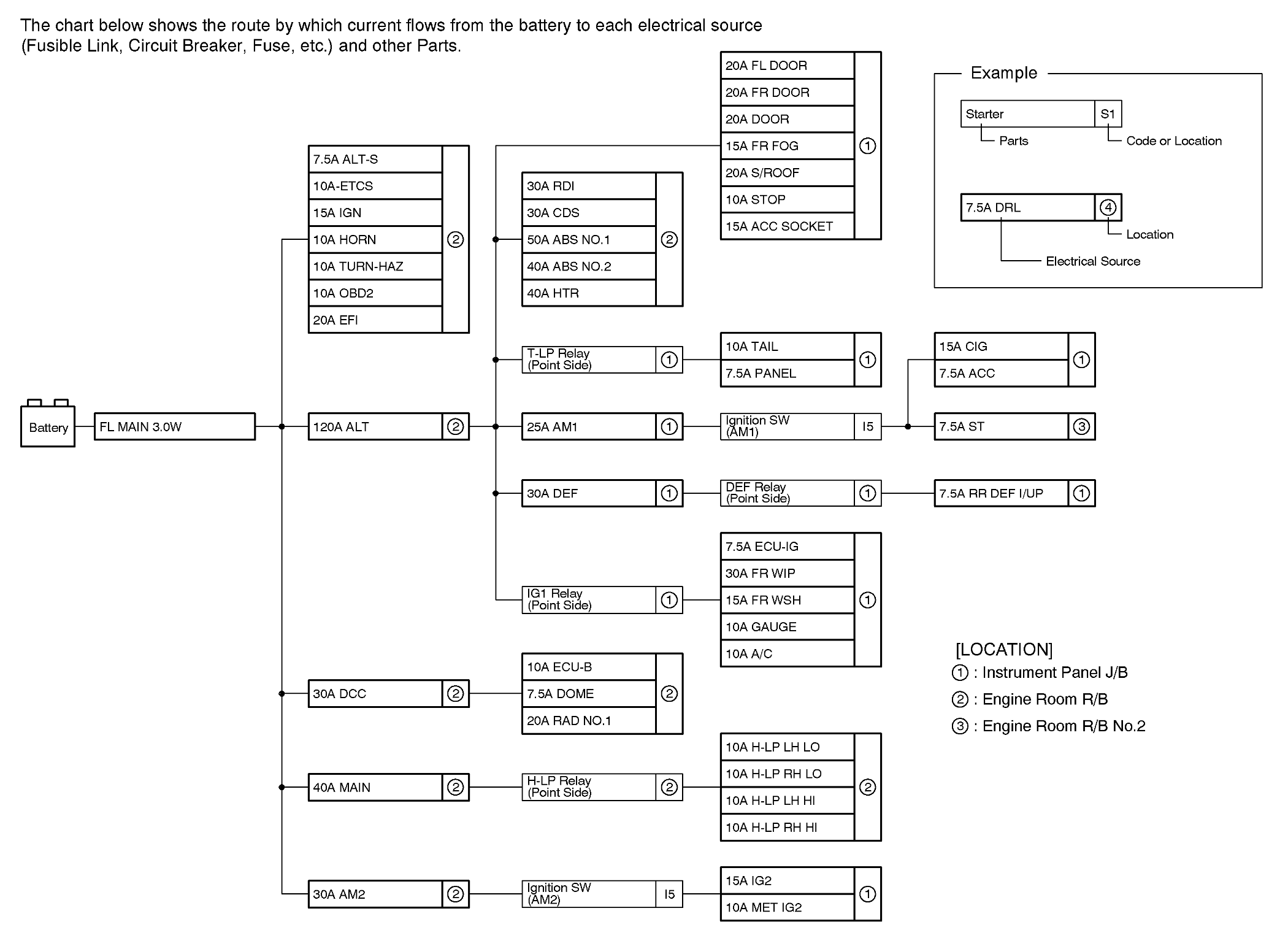

For engine compartment fusible link and relay block locations, see Fig 1. For description of electrical power distribution, see Fig 2.
Component Locations
- Fusible link block is located at left side of engine compartment. For identification of components, see Fig 3. For identification of protected circuits, see Engine Compartment Fusible Link Block Protected Circuits . For wiring diagrams of circuits, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
- Engine compartment relay block and relay block no.2 are located at left of engine compartment. For identification of components, see Fig 3. For identification of protected circuits, see Engine Compartment Relay Block Protected Circuits or Engine Compartment Relay Block No. 2 Protected Circuits . For wiring diagrams of circuits, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
ENGINE COMPARTMENT FUSIBLE LINK BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 60A | ABS | VSC |
| 60A | MAIN | Charging |
| Combination Meter | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| SRS | ||
| Starting and Ignition | ||
| VSC | ||
| 120A | ALT | Charging |
| VSC | ||
ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| H-LP Relay |
| Horn Relay |
| EFI Relay |
| Fan No.1 Relay |
| Fan No.3 Relay |
| Fan No.2 Relay |
| IG2 Relay |
ENGINE COMPARTMENT RELAY BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | A/C2 | Air Conditioning |
| 10A | H-LP LH/H-LP LO LH | Headlight |
| Wireless Door Lock Control | ||
| 10A | H-LP RH/H-LP LO RH | Headlight |
| Wireless Door Lock Control | ||
| 15A | AM2 | Charging |
| Combination Meter | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| SRS | ||
| Starting and Ignition | ||
| VSC | ||
| 15A | DOME | Audio System |
| Combination Meter | ||
| Door Lock Control | ||
| Engine Control | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| Light Reminder | ||
| SRS | ||
| Taillight and Illumination | ||
| VSC | ||
| Wireless Door Lock Control | ||
| 15A | EFI | Electronically Controlled Transmission and A/T Indicator |
| Engine Control | ||
| 15A | HORN | Horn |
| Wireless Door Lock Control | ||
| 30A | RDI | Radiator Fan and Condenser Fan |
| 30A | ST | Starting and Ignition |
| 40A | ABS NO.2 | VSC |
| 50A | HTR SUB1 | PTC Heater |
ENGINE COMPARTMENT RELAY BLOCK NO. 2 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ST Relay |
| MG / C Relay |
ENGINE COMPARTMENT RELAY BLOCK NO. 2 FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ST | Electronically Controlled Transmission and A/T Indicator |
| Engine Control | ||
| Starting | ||
