Manual Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

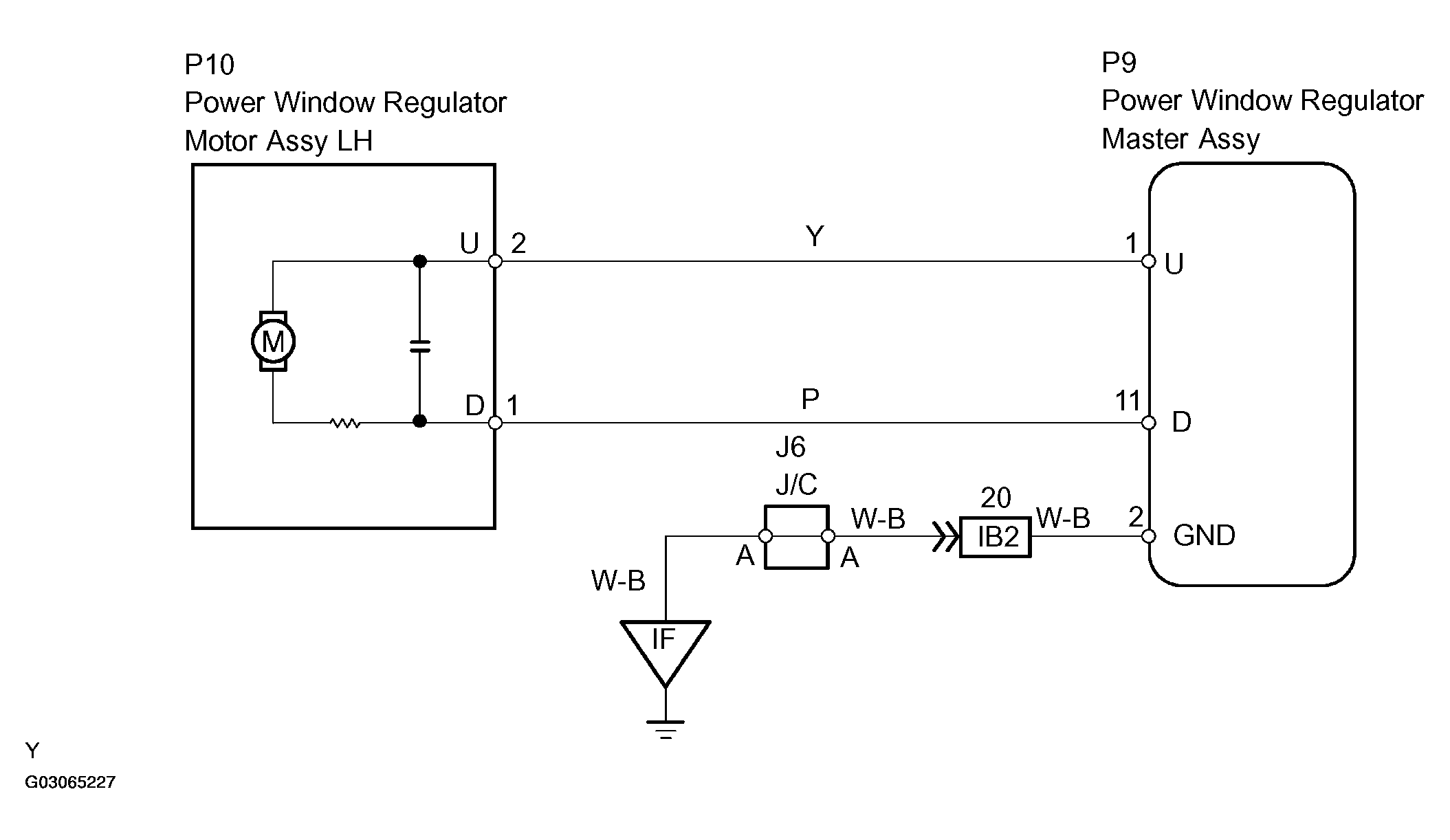

Fig 1: Wiring Diagram - Manual Up/Down (Driver Side)

G03065227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
