Front Seat: Components

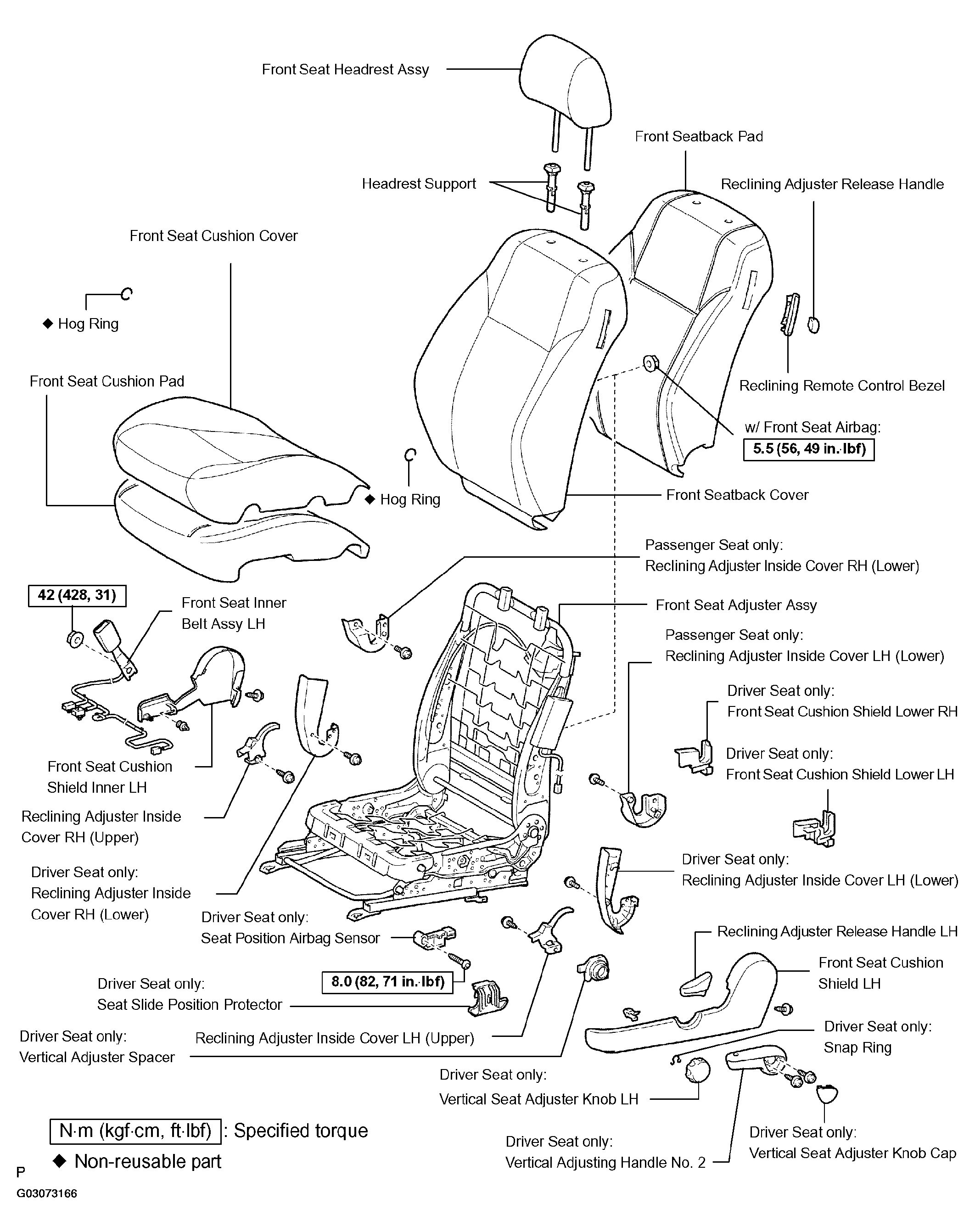

Fig 1: Identifying Front Seat Components (1 of 2)
G03073166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

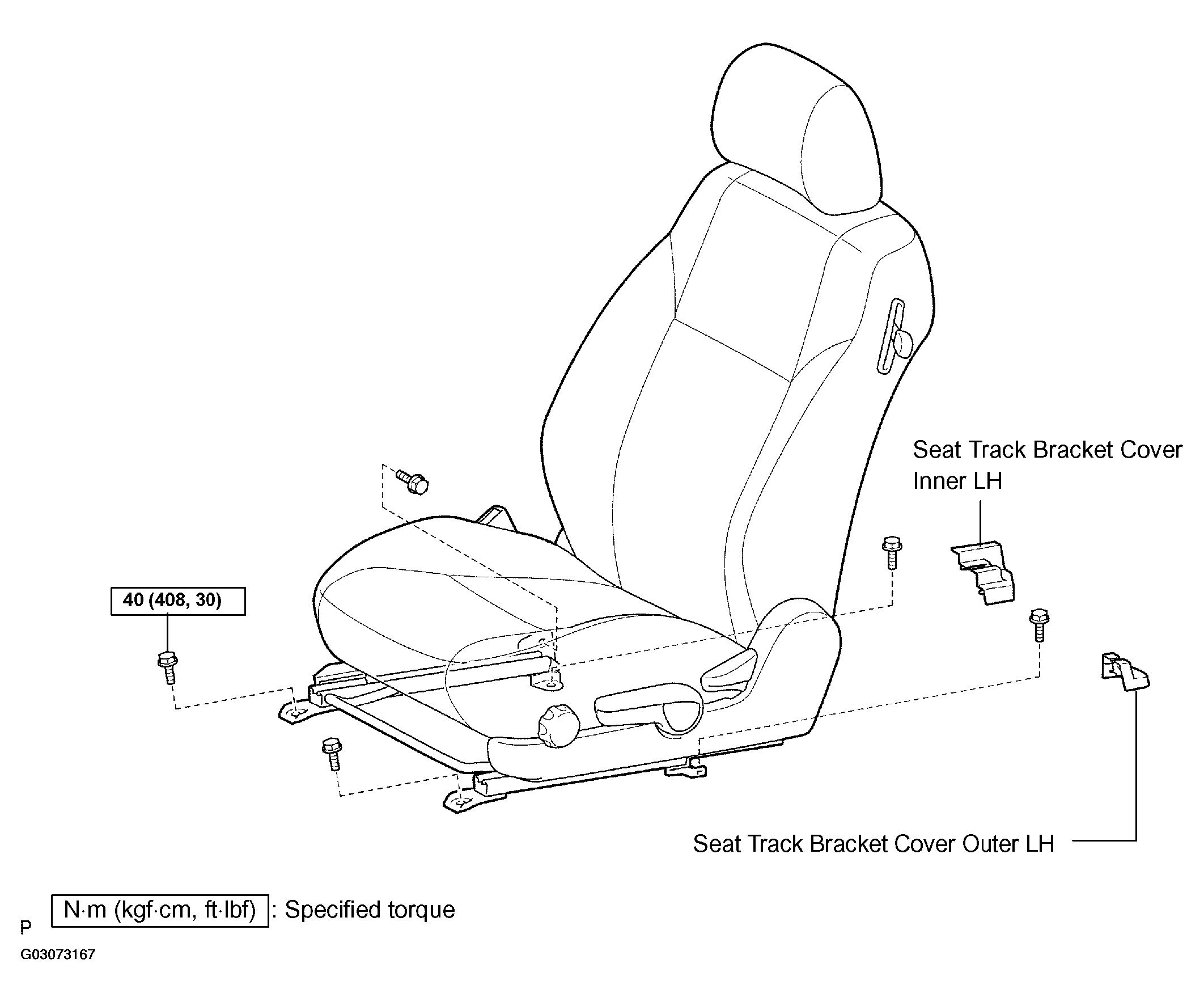

Fig 2: Identifying Front Seat Components (2 of 2)
G03073167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
