Passive Arming On/Off Selection, Entry Delay Time Selection

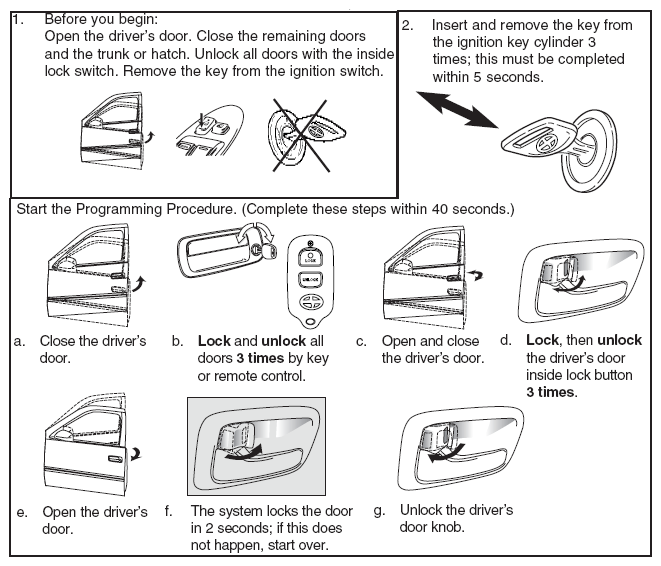

Fig 1: Passive Arming ON/OFF Selection, Entry Delay Time Selection Procedure (1 Of 2)
G06741286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

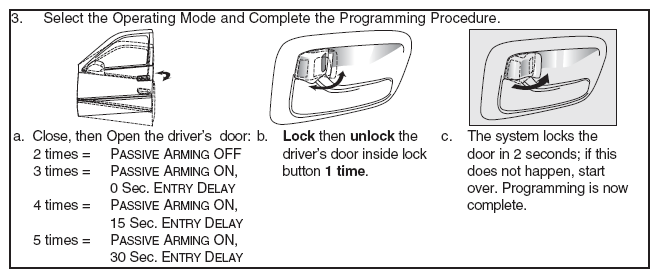

Fig 2: Passive Arming ON/OFF Selection, Entry Delay Time Selection Procedure (2 Of 2)
G06741287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
