Quarter Window ASSY LH: Components

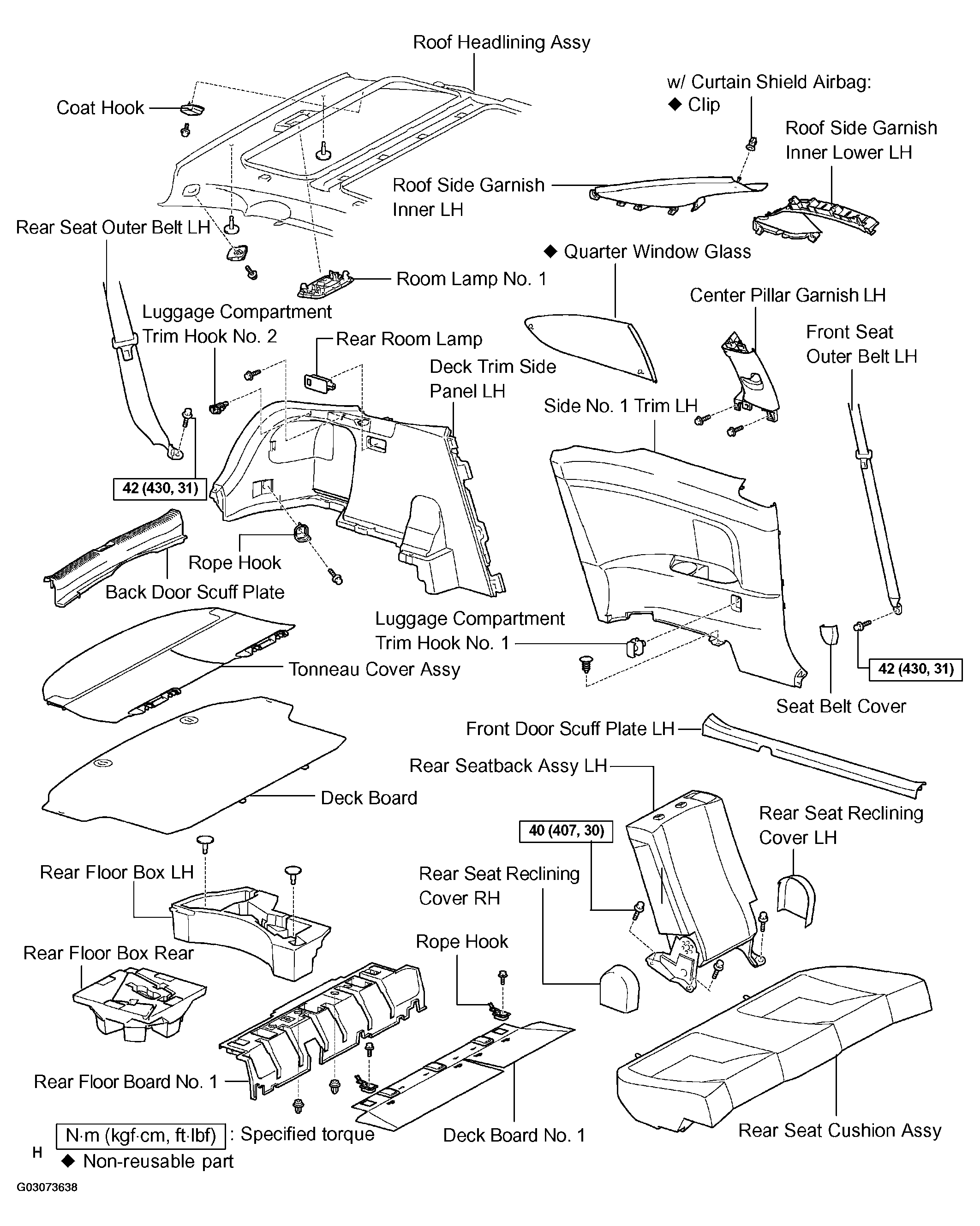

Fig 1: Identifying Quarter Window Assembly Component

G03073638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
