Power Windows Do Not Operate At All: Wiring Diagram

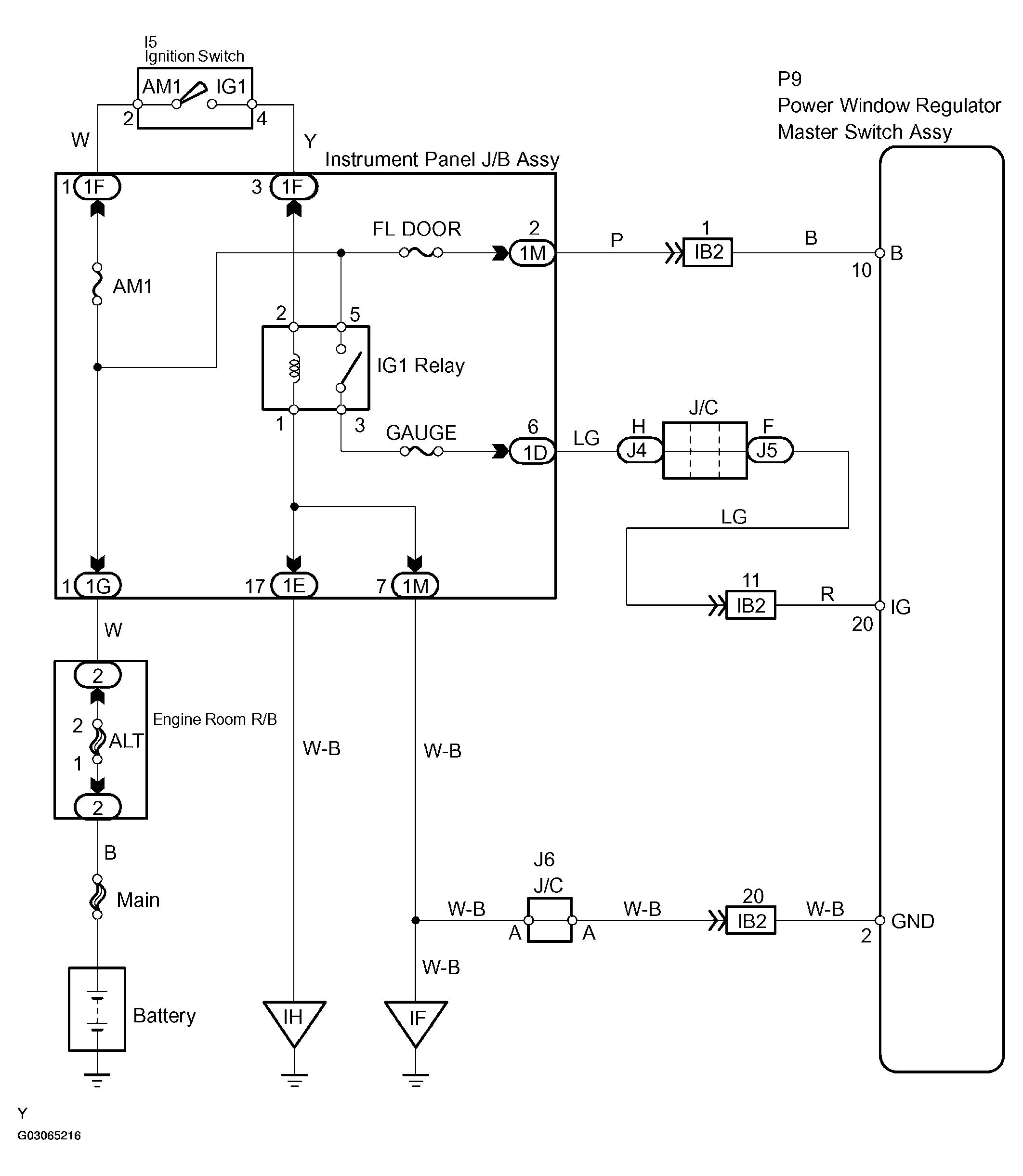

Fig 1: Wiring Diagram - Power Windows

G03065216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
