Hydraulic Test

PERFORM HYDRAULIC TEST

Measure the line pressure.
NOTE:
- Perform the test at the normal operating ATF (Automatic Transmission Fluid) temperature: 50 to 80°C (122 to 176°F).
- The line pressure test should always be carried out in pairs. One technician should observe the conditions of wheels or wheel stopper outside the vehicle while the other is doing the test.
- Be careful to prevent SST's hose from interfering with the exhaust pipe.
1. Warm up the ATF.

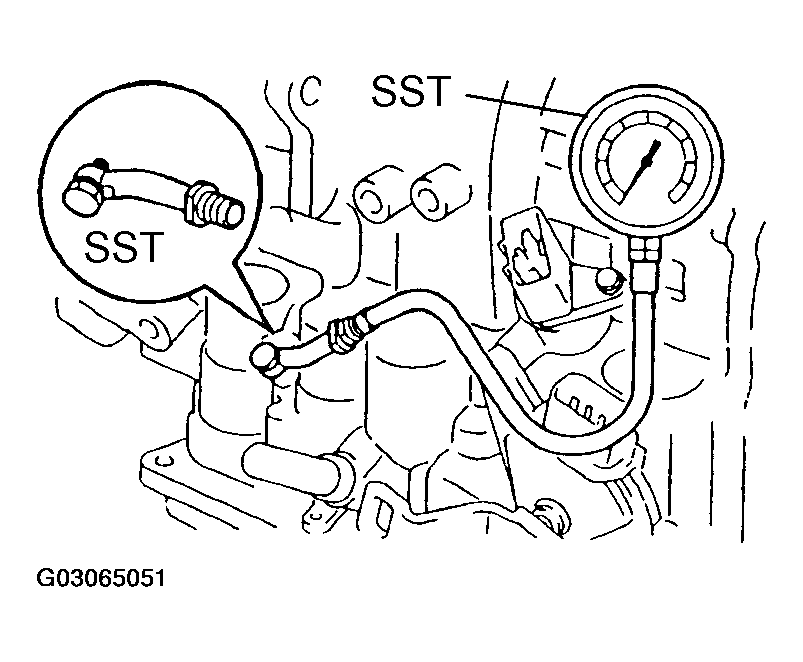

2. Remove the test plug on the front side of the transaxle case and connect SST.
  1. SST 09992-00095 (09992- 00231, 09992-00271)
  Fig 1: Removing Test Plug And Connect SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Fully apply the parking brake and chock the 4 wheels.
4. Connect an OBD II scan tool or hand-held tester to the DLC3.
5. Start the engine and check idling speed.
6. Keep your left foot pressing firmly on the brake pedal and shift into the D position.
7. Measure the line pressure when the engine is idling.
8. Depress the accelerator pedal all the way down. Quickly read the highest line pressure when engine speed reaches stall speed.
9. In the same way, do the test in the R position.

SPECIFIED LINE PRESSURE

Condition	D position	kPa (kgf / cm² , psi)	R position	kPa (kgf / cm² , psi)
Idling	372 to 412 kPa		672 to 742 kPa
Idling	(3.8 to 4.2 kgf/cm² , 54 to 60 psi)		(6.9 to 7.6 kgf/cm² , 97 to 108 psi)
Stall test	931 to 1,031 kPa		1,768 to 1,968 kPa
Stall test	(9.5 to 10.5 kgf/cm² , 135 to 150 psi)		(18.0 to 20.0 kgf/cm² , 256 to 285 psi)

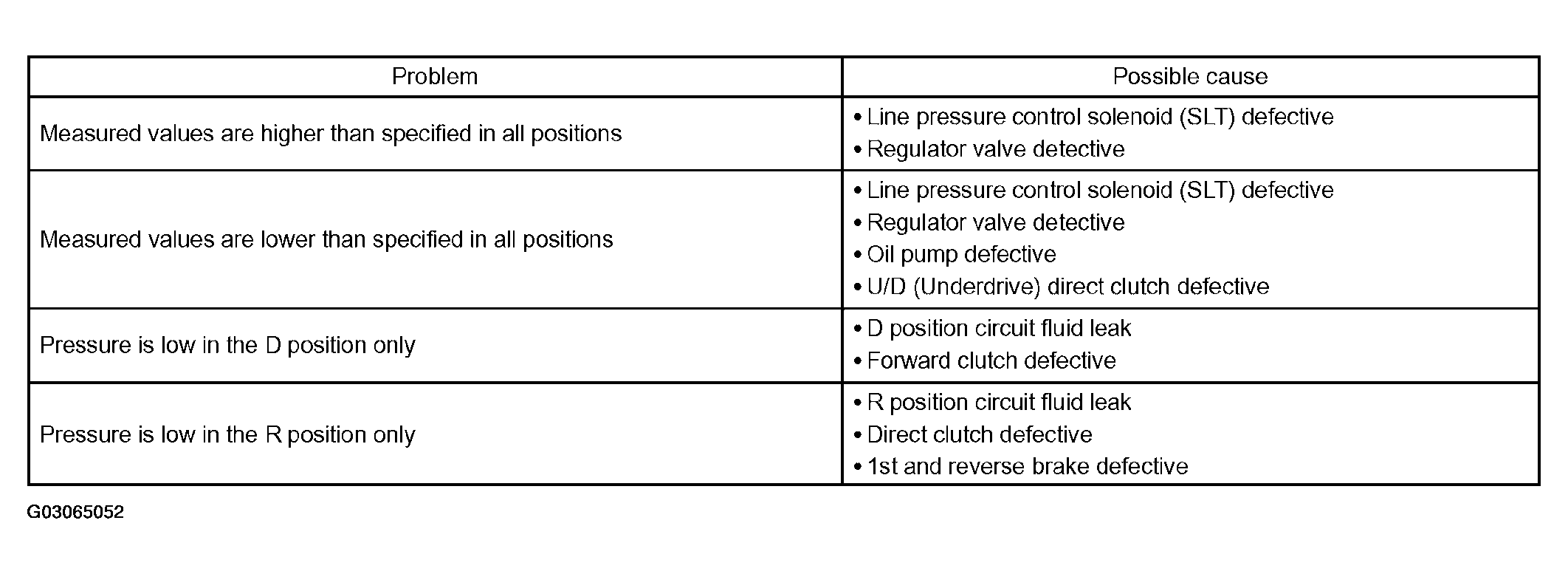

Evaluation:

Fig 2: Hydraulic Test Chart

G03065052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
