How To Determine Bolt Strength

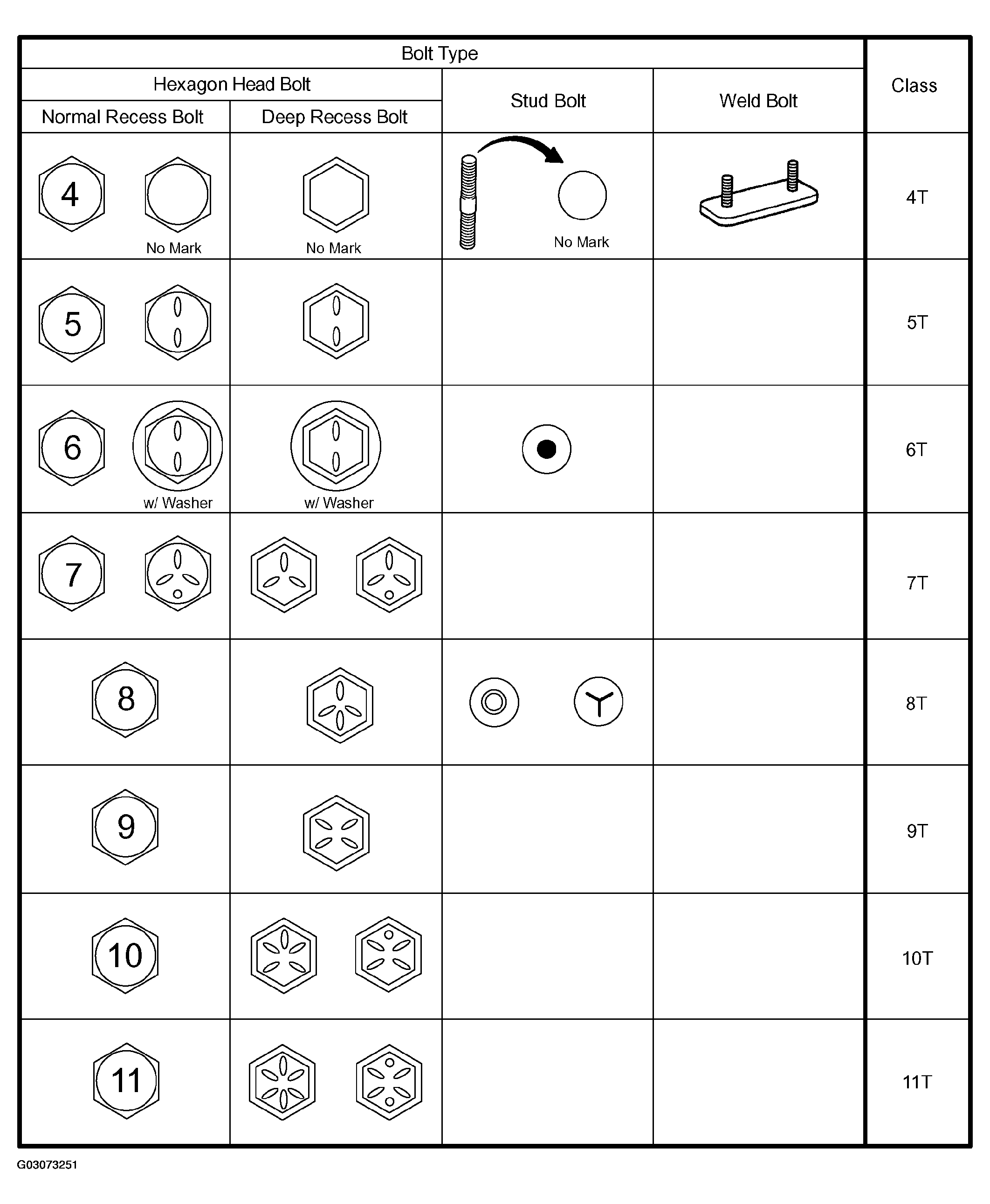

Fig 1: Identifying Bolt Type
G03073251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
