Vane Pump ASSY: Components

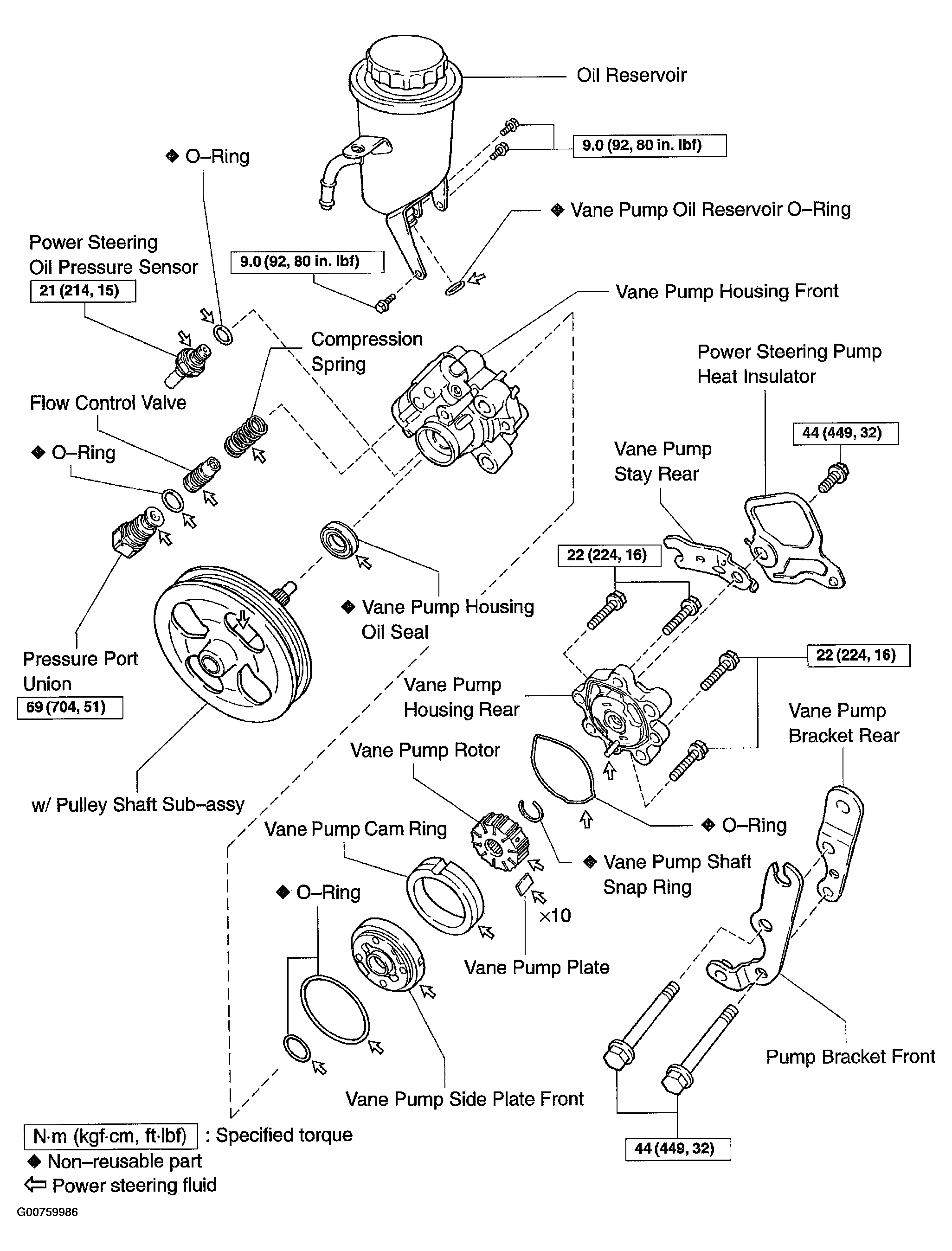

Fig 1: Exploded View Of Vane Pump Assembly

G00759986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
