On-Vehicle Inspection

  1. INSPECT DRIVE BELT
    1. Visually check the belt for excessive wear, frayed cords, etc.

    If any defect is found, replace the drive belt.

    HINT:

    Cracks on the rib side of a belt are considered acceptable. Replace the belt if there are any missing ribs.

    Fig 1: Inspecting Drive Belt
    G00759976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. BLEED POWER STEERING SYSTEM
    1. Check the fluid level.
    2. Jack up the front of the vehicle and support it with stands.
    3. Turn the steering wheel.
      1. With the engine stopped, turn the wheel slowly from lock to lock several times.
    4. Lower the vehicle.
    5. Start the engine.
      1. Idle the engine for a few minutes.
    6. Turn the steering wheel.
      1. With the engine idling, turn the wheel to the left or right full lock position and keep it there for 2 to 3 seconds, then turn the wheel to the opposite full lock position and keep it there for 2 to 3 seconds.
      2. Repeat (1) several times.
    7. Stop the engine.
    8. Check for foaming or emulsification.

      If the system has to be bled twice because of foaming or emulsification, be sure to check for fluid leaks in the system.

    9. Check the fluid level.

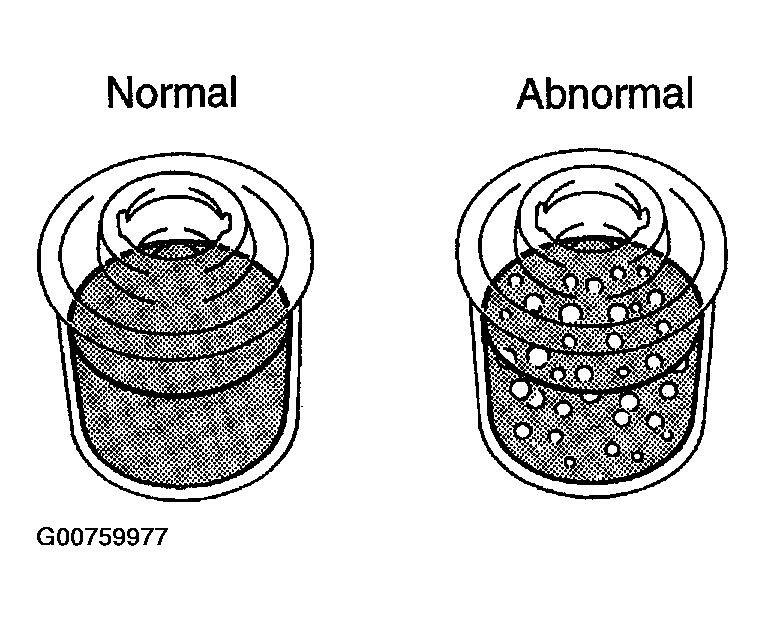

      Fig 2: Checking Steering Fluid For Emulsification
      G00759977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CHECK FLUID LEVEL
    1. Keep the vehicle level.
    2. With the engine stopped, check the fluid level in the oil reservoir.

      If necessary, add fluid.

      Fig 3: Measuring Fluid Level In Oil Reservoir
      G00759978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Fluid: ATF DEXRON® II or III

      HINT:

      Check that the fluid level is within the HOT LEVEL range on the reservoir cap stick. If the fluid is cold, check that it is within the COLD LEVEL range.

    3. Start the engine and idle it.
    4. Turn the steering wheel from lock to lock several times to raise fluid temperature.

      Fluid temperature: 80°C (176°F)

    5. Check for foaming or emulsification.

      If foaming or emulsification is identified, bleed the power steering system.

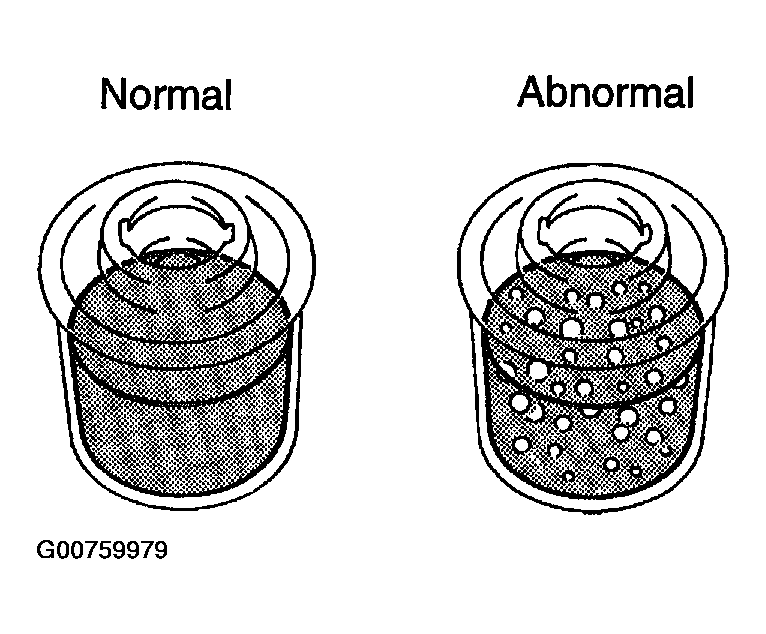

      Fig 4: Checking Steering Fluid For Emulsification Again
      G00759979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. With the engine idling, measure the fluid level in the oil reservoir.
    7. Stop the engine.
    8. Wait a few minutes and measure the fluid level in the oil reservoir again.

      Maximum fluid level rise: 5 mm (0.20 in.)

      If a problem is found, bleed the power steering system.

    9. Check the fluid level.

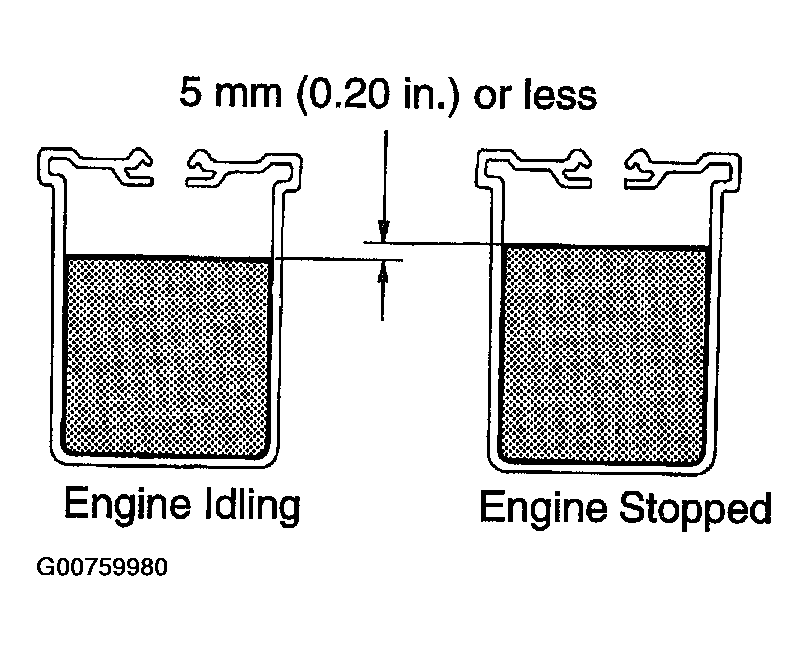

    Fig 5: Measuring Fluid Level In Oil Reservoir With Engine Idling
    G00759980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CHECK STEERING FLUID PRESSURE
    1. Disconnect the pressure feed tube from the vane pump (See OVERHAUL  ).
    2. Connect SST as shown in the illustration on the next page.

      SST 09640-10010 (09641-01010, 09641-01030, 09641-01060)

      NOTE: Check that the valve of the SST is in the open position.
    3. Bleed the power steering system.
    4. Start the engine and idle it.
    5. Turn the steering wheel from lock to lock several times to raise fluid temperature.

      Fluid temperature: 75 to 80°C (167 to 176°F)

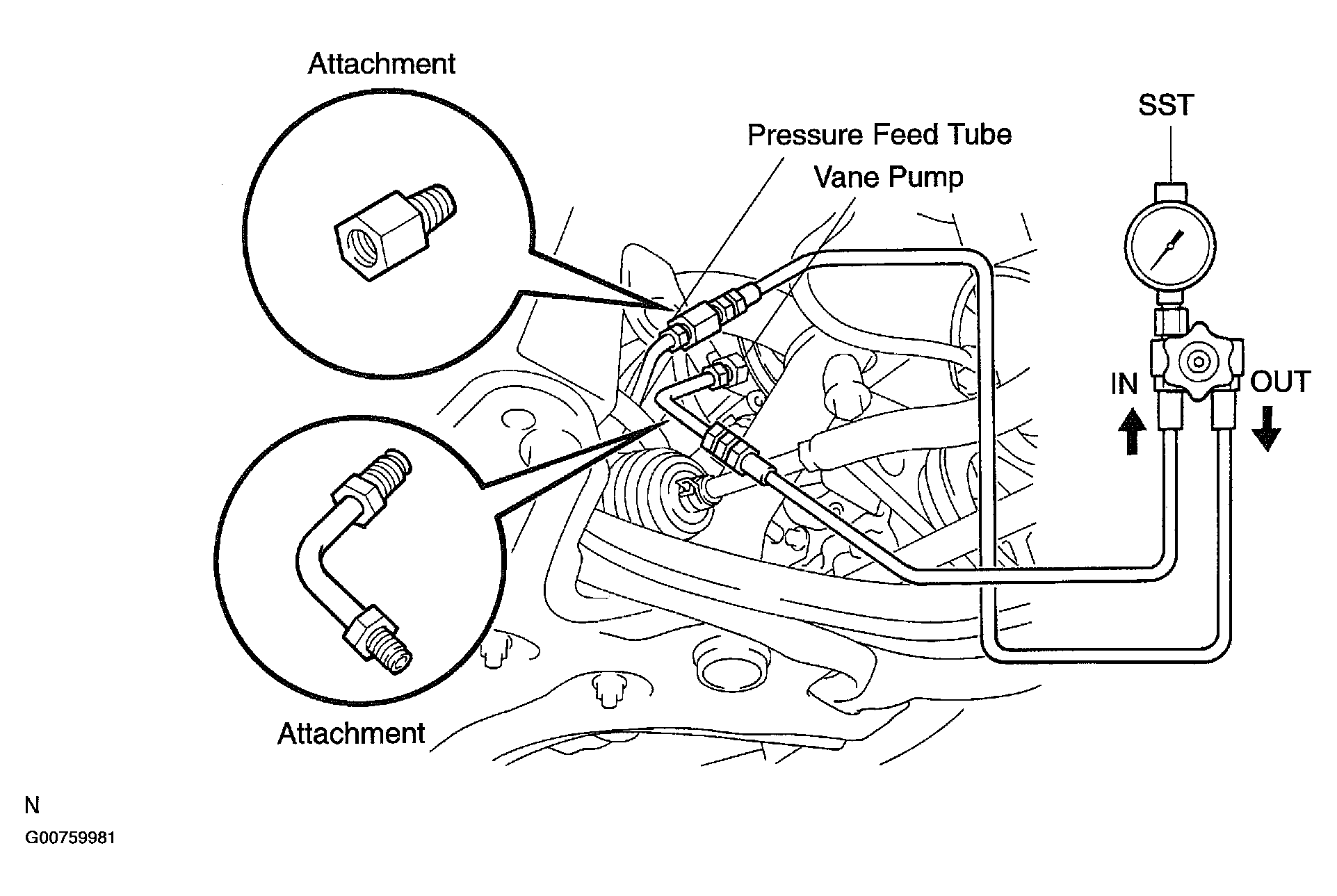

      Fig 6: Identifying Pressure Feed Tube And Vane Pump
      G00759981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. With the engine idling, close the valve of the SST and observe the reading on the SST.

      Minimum fluid pressure:

      5,900 kPa (60 kgf/cm 2, 852 psi)

      NOTE:
      • Do not keep the valve closed for more than 10 seconds.
      • Do not let the fluid temperature become too high.
      Fig 7: Checking Steering Fluid Pressure With SST Valve Close
      G00759982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. With the engine idling, open the valve fully.
    8. Measure the fluid pressure at engine speeds of 1,000 rpm and 3,000 rpm.

      Fluid pressure difference:

      490 kPa (5 kgf/cm 2, 71 psi) or less

      NOTE: Do not turn the steering wheel.
      Fig 8: Checking Steering Fluid Pressure With SST Valve Fully Open
      G00759983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. With the engine idling and the valve fully opened, turn the steering wheel to the full lock position.

      Minimum fluid pressure:

      5,900 kPa (60 kgf/cm 2, 852 psi)

      NOTE:
      • Do not maintain the lock position for more than 10 seconds.
      • Do not let the fluid temperature become too high.
      Fig 9: Checking Steering Fluid Pressure With SST Valve Fully Open And Steering Wheel Lock
      G00759984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Disconnect the SST.

      SST 09640-10010 (09641-01010, 09641-01030, 09641-01060)

    11. Connect the pressure feed tube to the vane pump (See OVERHAUL  ).
    12. Bleed the power steering system.
  5. CHECK STEERING EFFORT
    1. Center the steering wheel assy.
    2. Remove the horn button assy (See AIR BAG RESTRAINT SYSTEMS ).
    3. Start the engine and idle it.
    4. Measure the steering effort in both directions.

      Steering effort (Reference):

      6 N.m (60 kgf.cm, 53 in..lbf) or less

      HINT:

      Take the tire type, the pressure and the contact surface into consideration before making a diagnosis.

      Fig 10: Checking Steering Effort
      G00759985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the steering wheel assy set nut.

      Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

    6. Install the horn button assy (See AIR BAG RESTRAINT SYSTEMS ).
