Power Steering Link ASSY: Components

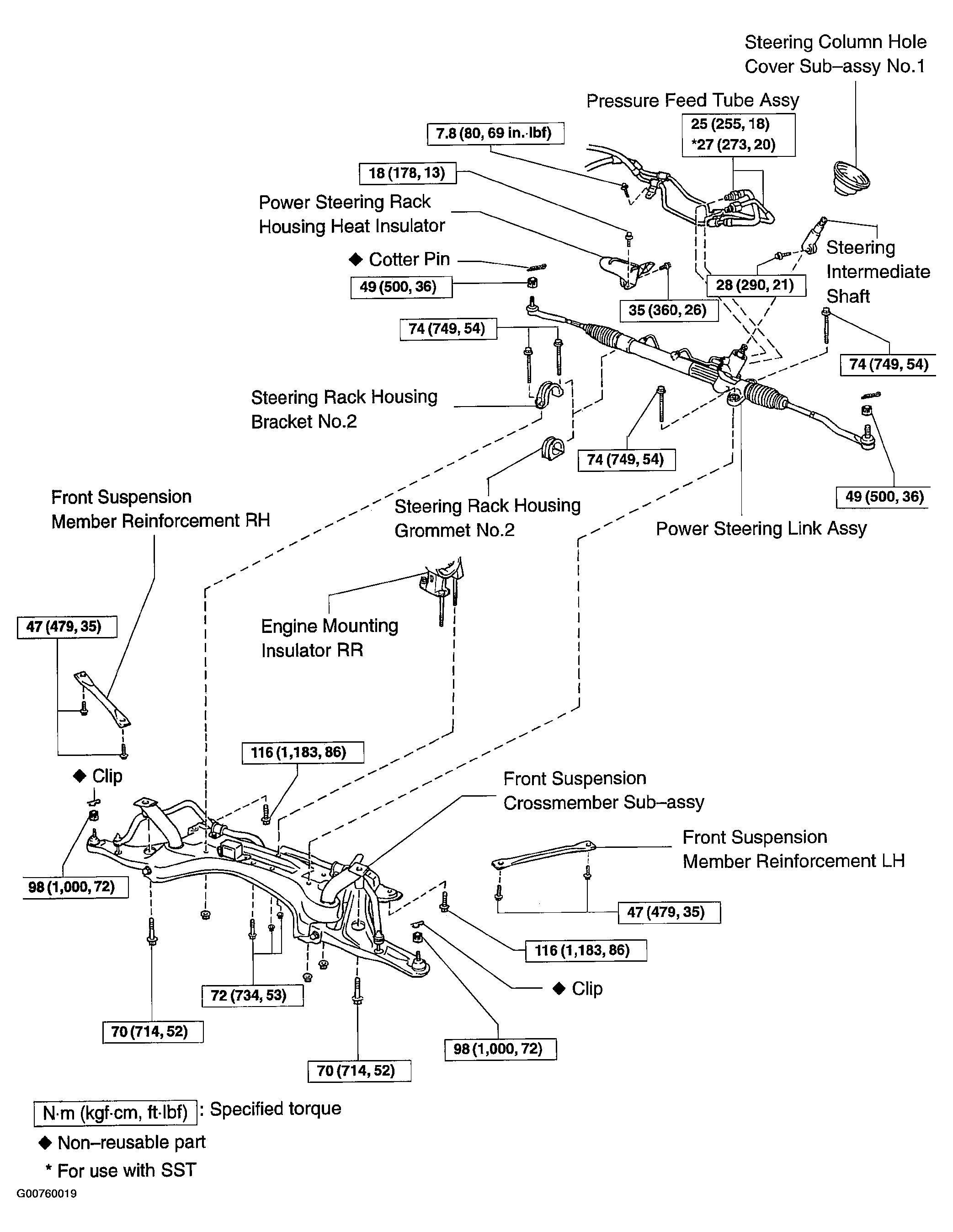

Fig 1: Exploded View And Torque Specification Of Power Steering Link Assembly (1 Of 3)
G00760019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View And Torque Specification Of Power Steering Link Assembly (2 Of 3)
G00760020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

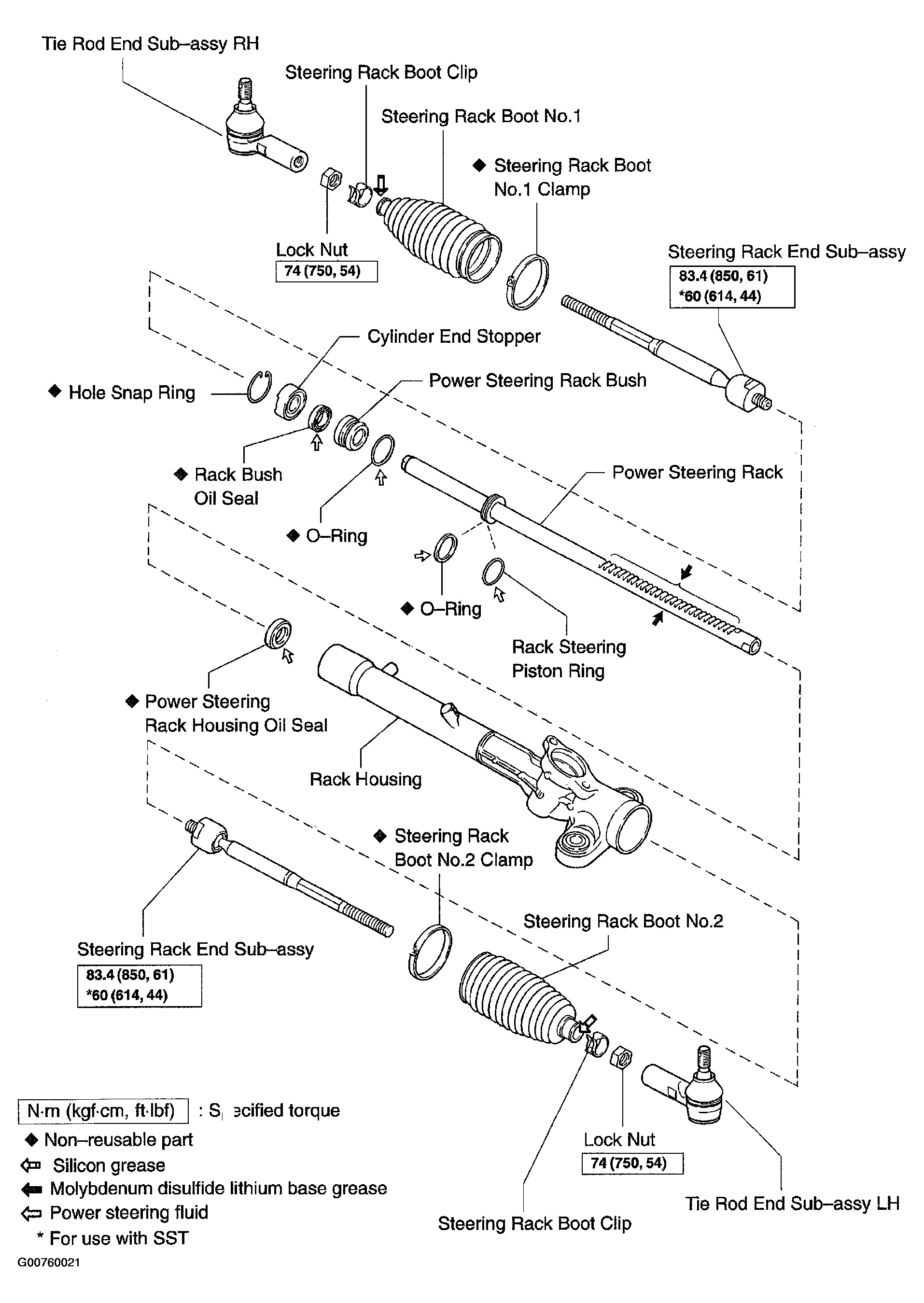

Fig 3: Exploded View And Torque Specification Of Power Steering Link Assembly (3 Of 3)
G00760021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
