Home >> Scion >> 2004 >> xB Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt Warning System >> Rear Seat Belt >> Components

Rear Seat Belt: Components

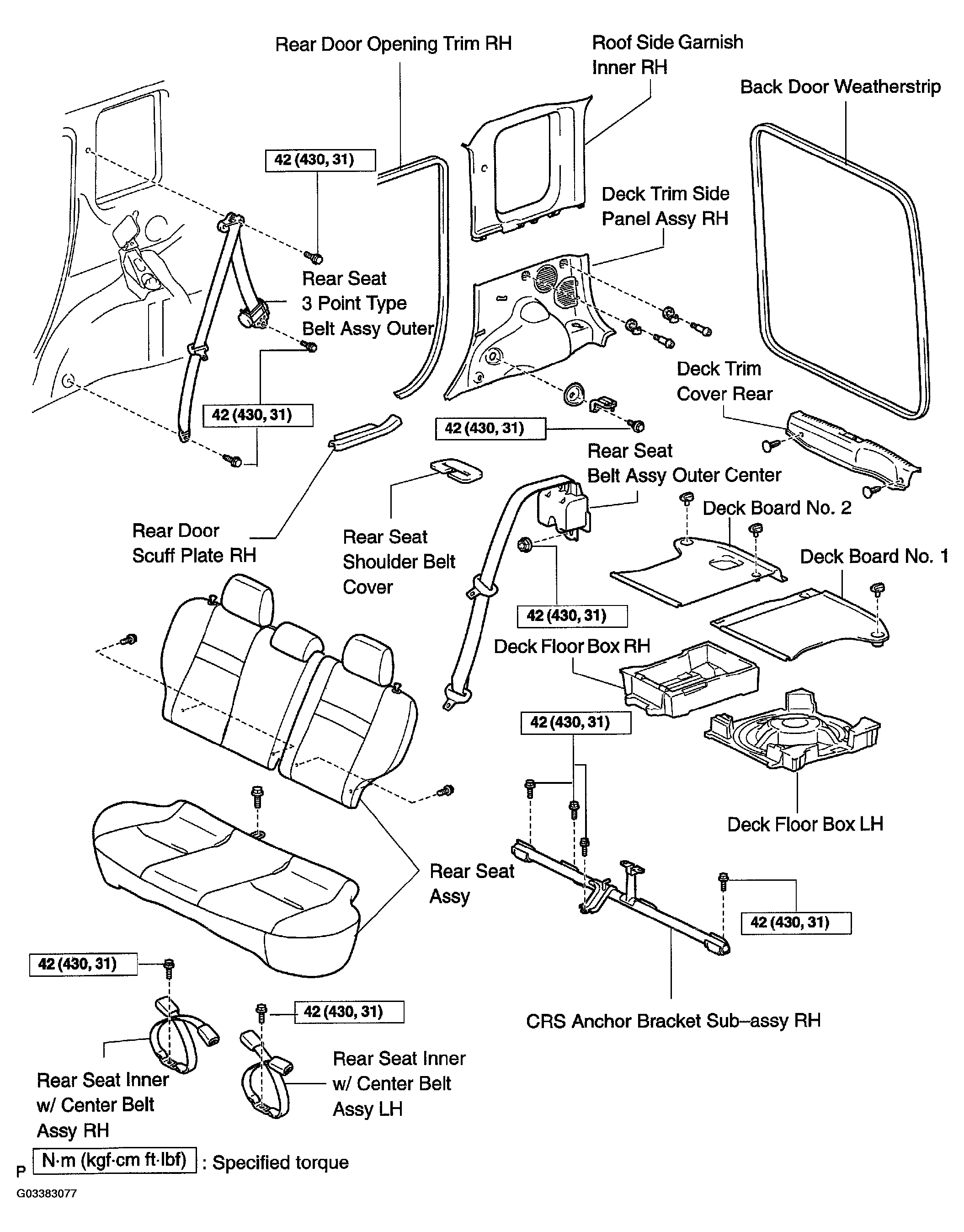

Fig 1: Identifying Rear Seat Belt Components

G03383077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
