Home >> Scion >> 2004 >> xB Standard >> Repair and Diagnosis >> Engine Performance >> System >> SFI System - Diagnosis >> Location

SFI System - Diagnosis: Location

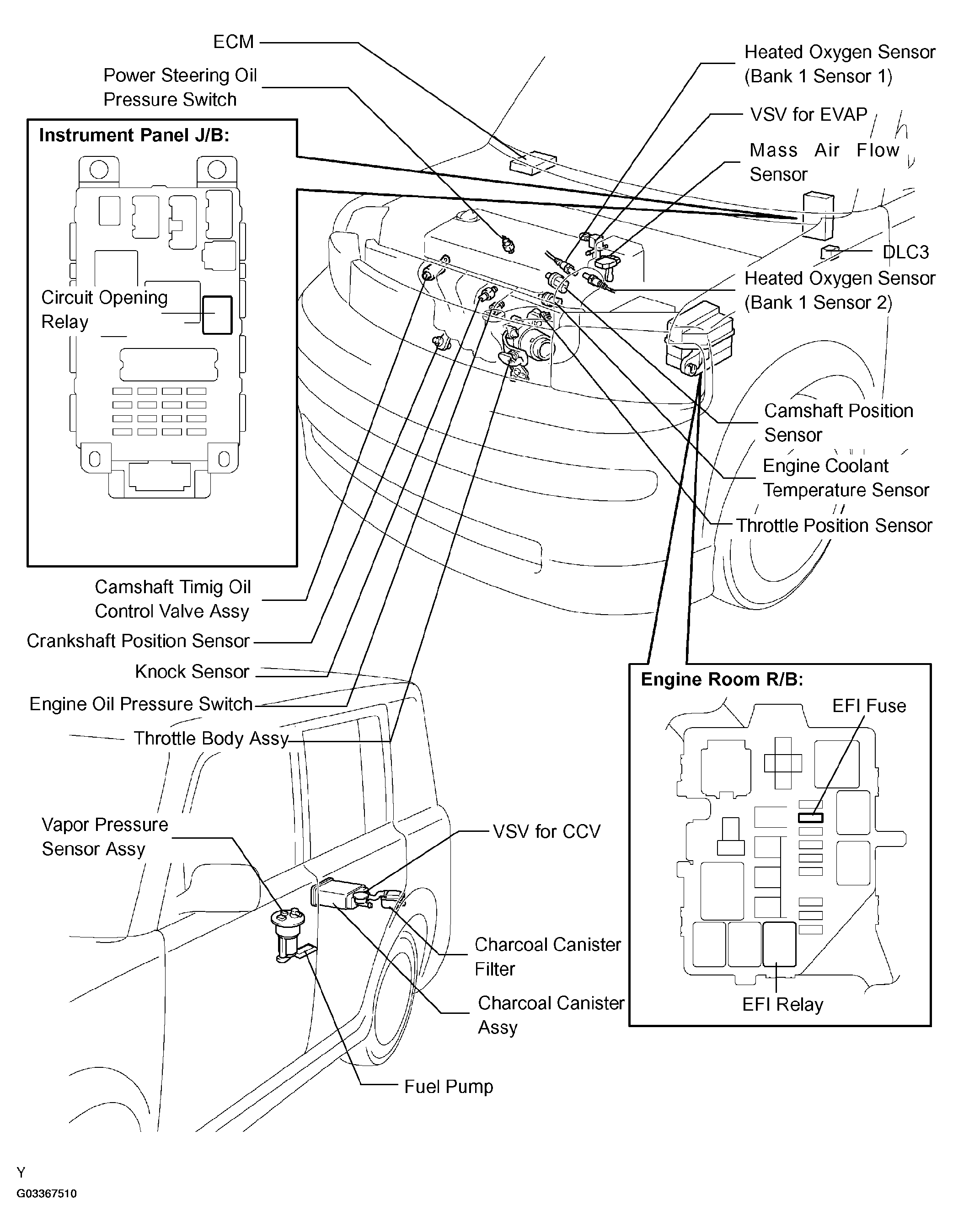

Fig 1: SFI System Component Location

G03367510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
