List Of Disable A Monitor

HINT:

This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.

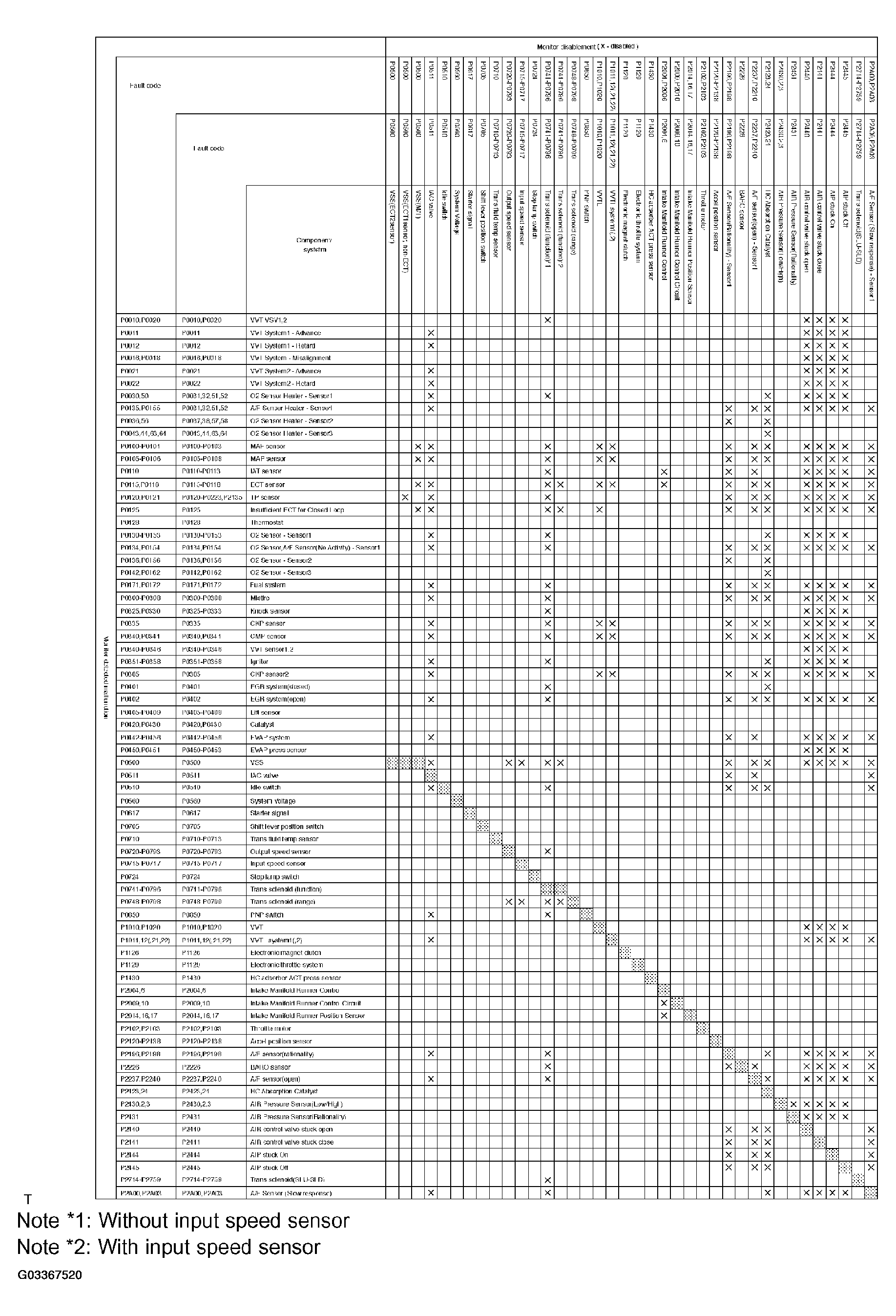

Fig 1: ECM Monitoring Status (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

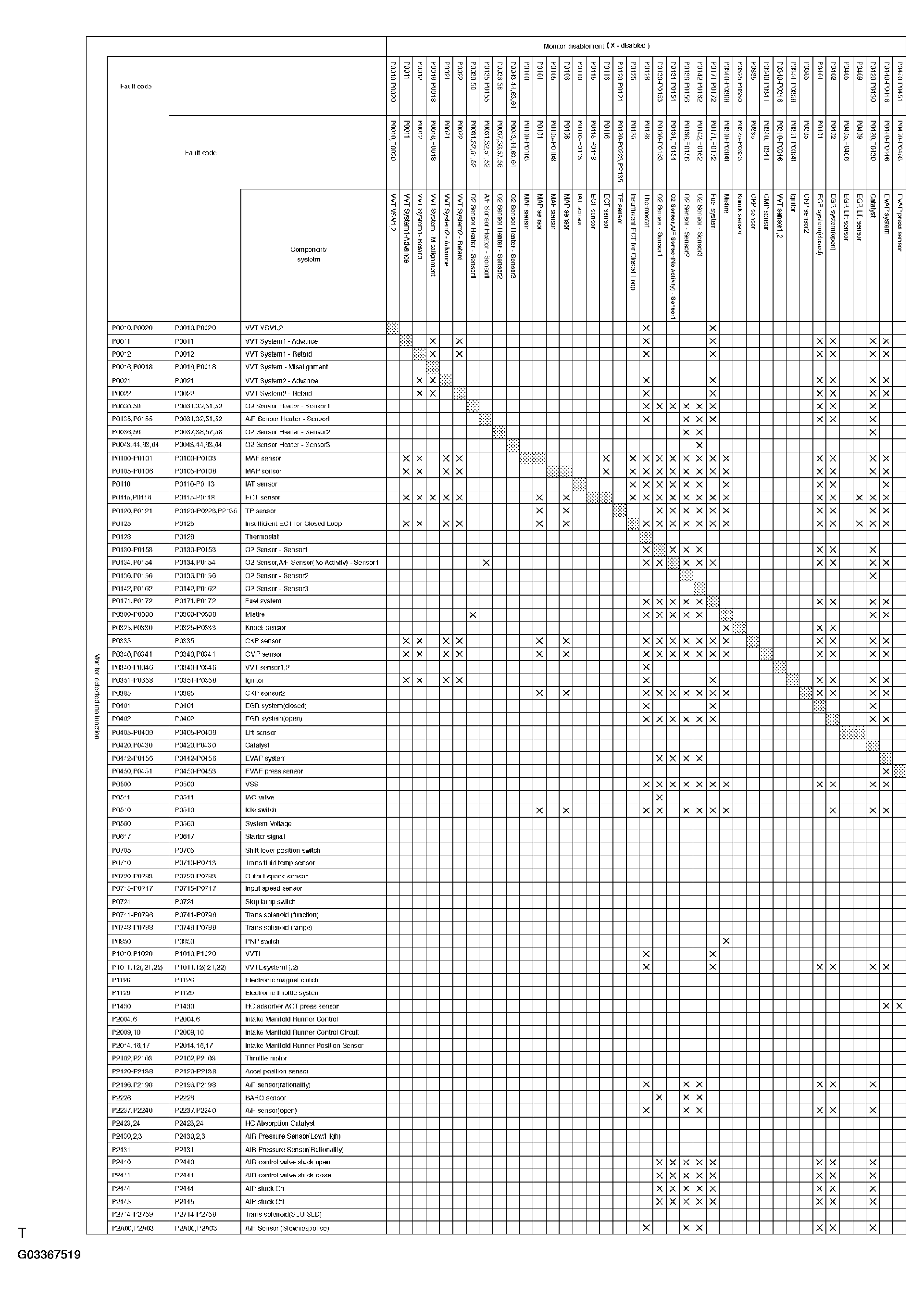

Fig 2: ECM Monitoring Status (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
