  1. PERFORM ACTIVE TEST BY HAND-HELD TESTER(OPERATION OF CIRCUIT OPENING RELAY)
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main switch ON.
    3. Select the item "DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / FUEL PUMP / SPD".
    4. Check the relay operation while operating it with the hand-held tester.

      Standard: Operating noise can be heard from the relay.

    1. OK : Go to step   7 .
    2. NG : Go to next step.
  2. CHECK ECM POWER SOURCE CIRCUIT (See  ECM POWER SOURCE CIRCUIT   )
    1. NG : REPAIR OR REPLACE POWER SOURCE CIRCUIT
    2. OK : Go to next step.
  3. INSPECT CIRCUIT OPENING RELAY
    1. Remove the circuit opening relay from the instrument panel J/B.
    2. Inspect the circuit opening relay.

      Standard:

      CIRCUIT OPENING RELAY SPECIFIED CONDITION

      Tester Connection Specified Condition
      1 - 2 Below 1 Ω
      3 - 5 10 kΩ or higher
      Below 1 Ω (Apply battery voltage to terminals 1 and 2)
    3. Reinstall the circuit opening relay.
      Fig 1: Identifying Circuit Opening Relay From The Instrument Panel J/B
      G03367763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPLACE CIRCUIT OPENING RELAY
    2. OK : Go to next step.
  4. INSPECT ECM(FC VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage between the specified terminals of the E3 and E5 ECM connectors.

      Standard:

      E3 AND E5 ECM CONNECTORS SPECIFIED CONDITION

      Tester Connection Specified Condition
      FC (E3-10) - E01 (E5-7) 9 to 14 V
    1. OK : REPLACE ECM

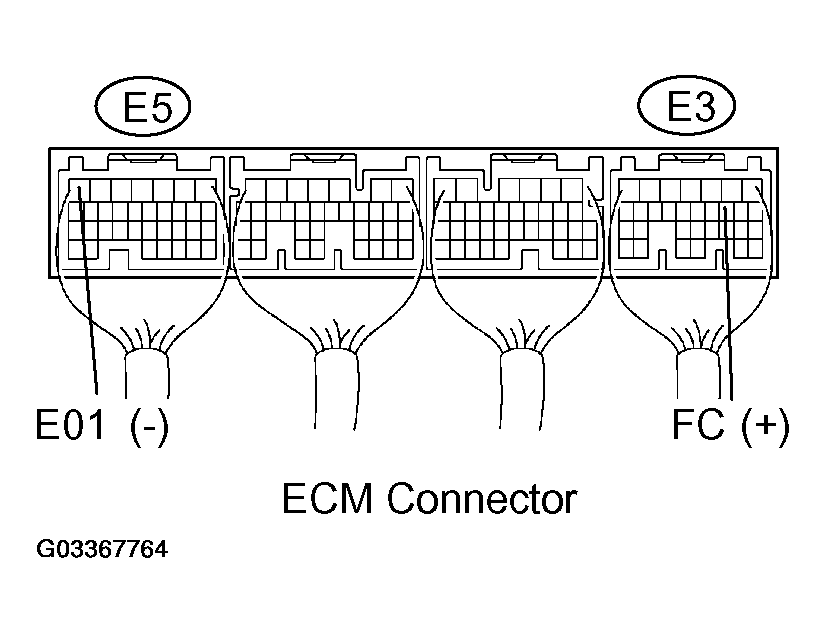

      Fig 2: Identifying Terminals Of The E3 And E5 ECM Connectors
      G03367764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. NG : Go to next step.
  5. CHECK HARNESS AND CONNECTOR(EFI RELAY - CIRCUIT OPENING RELAY)
    1. Remove the EFI relay from the engine room R/B.
    2. Remove the circuit opening relay from the instrument panel J/B.
    3. Measure the resistance between the wire harness side connectors.

      Standard (Check for open):

      EFI RELAY - CIRCUIT OPENING RELAY SPECIFIED CONDITION (CHECK FOR OPEN)

      Tester Connection Specified Condition
      EFI relay (3) - Circuit opening relay (1) Below 1 Ω
      EFI relay (3) - Circuit opening relay (5)
      Fig 3: Identifying EFI Relay From The Engine Room R/B
      G03367765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Check for short):

      EFI RELAY - CIRCUIT OPENING RELAY SPECIFIED CONDITION (CHECK FOR SHORT)

      Tester Connection Specified Condition
      EFI relay (3) or Circuit opening relay (1) - Body ground 10 kΩ or higher
      EFI relay (3) or Circuit opening relay (5) - Body ground
    4. Reinstall the EFI relay.
    5. Reinstall the circuit opening relay.
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
      Fig 4: Identifying Circuit Opening Relay From The Instrument Panel J/B
      G03367766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. OK : Go to next step.
  6. CHECK HARNESS AND CONNECTOR(ECM - CIRUIT OPENING RELAY)
    1. Disconnect the E3 ECM connector.
    2. Remove the circuit opening relay from the instrument panel J/B.
    3. Measure the resistance between the wire harness side connectors.

      Standard (Check for open):

      ECM - CIRUIT OPENING RELAY SPECIFIED CONDITION (CHECK FOR OPEN)

      Tester Connection Specified Condition
      FC (E3-10) - Circuit opening relay (2) Below 1 Ω
      Fig 5: Identifying E3 ECM Connector
      G03367767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Check for short):

      ECM - CIRUIT OPENING RELAY SPECIFIED CONDITION (CHECK FOR SHORT)

      Tester Connection Specified Condition
      FC (E3-10) - Circuit opening relay (2) - Body ground 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reinstall the circuit opening relay.
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
      Fig 6: Identifying Circuit Opening Relay From The Instrument Panel J/B
      G03367768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. OK : REPLACE ECM (See )
  7. INSPECT FUEL PUMP ASSY (See )
    1. NG : REPAIR OR REPLACE FUEL PUMP ASSY
    2. OK : Go to next step.
  8. CHECK HARNESS AND CONNECTOR(CIRCUIT OPENING RELAY - FUEL PUMP, FUEL PUMP - BODY GROUND)
    1. Remove the circuit opening relay from the instrument panel J/B.
    2. Disconnect the F14 fuel pump connector.
    3. Measure the resistance between the wire harness side connectors.

      Standard (Check for open):

      CIRCUIT OPENING RELAY - FUEL PUMP SPECIFIED CONDITION (CHECK FOR OPEN)

      Tester Connection Specified Condition
      Circuit opening relay (3) - Fuel pump (F14-4) Continuity
      Fuel pump (F14-5) - Body ground
      Fig 7: Identifying Circuit Opening Relay From The Instrument Panel J/B
      G03367769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Check for short):

      CIRCUIT OPENING RELAY - FUEL PUMP SPECIFIED CONDITION (CHECK FOR SHORT)

      Tester Connection Specified Condition
      Circuit opening relay (3) or Fuel pump (F14-4) - Body ground 10 kΩ or higher
    4. Reconnect the fuel pump connector.
    5. Reinstall the circuit opening relay.
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
      Fig 8: Identifying F14 Fuel Pump Connector
      G03367770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. OK : REPLACE ECM (See )
