Rear Seat: Components

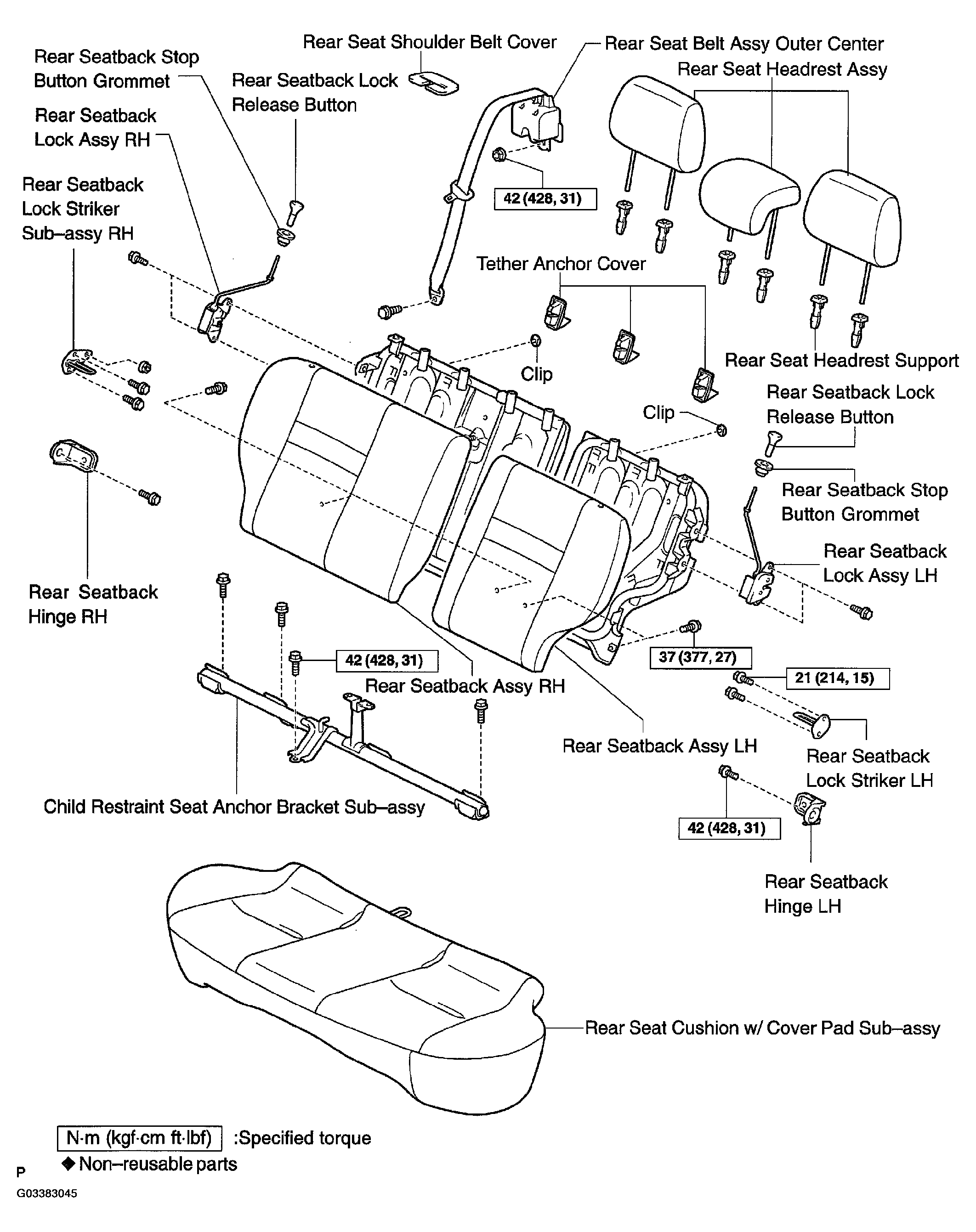

Fig 1: Identifying Rear Seat Assy Components

G03383045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
