Back Door: Components

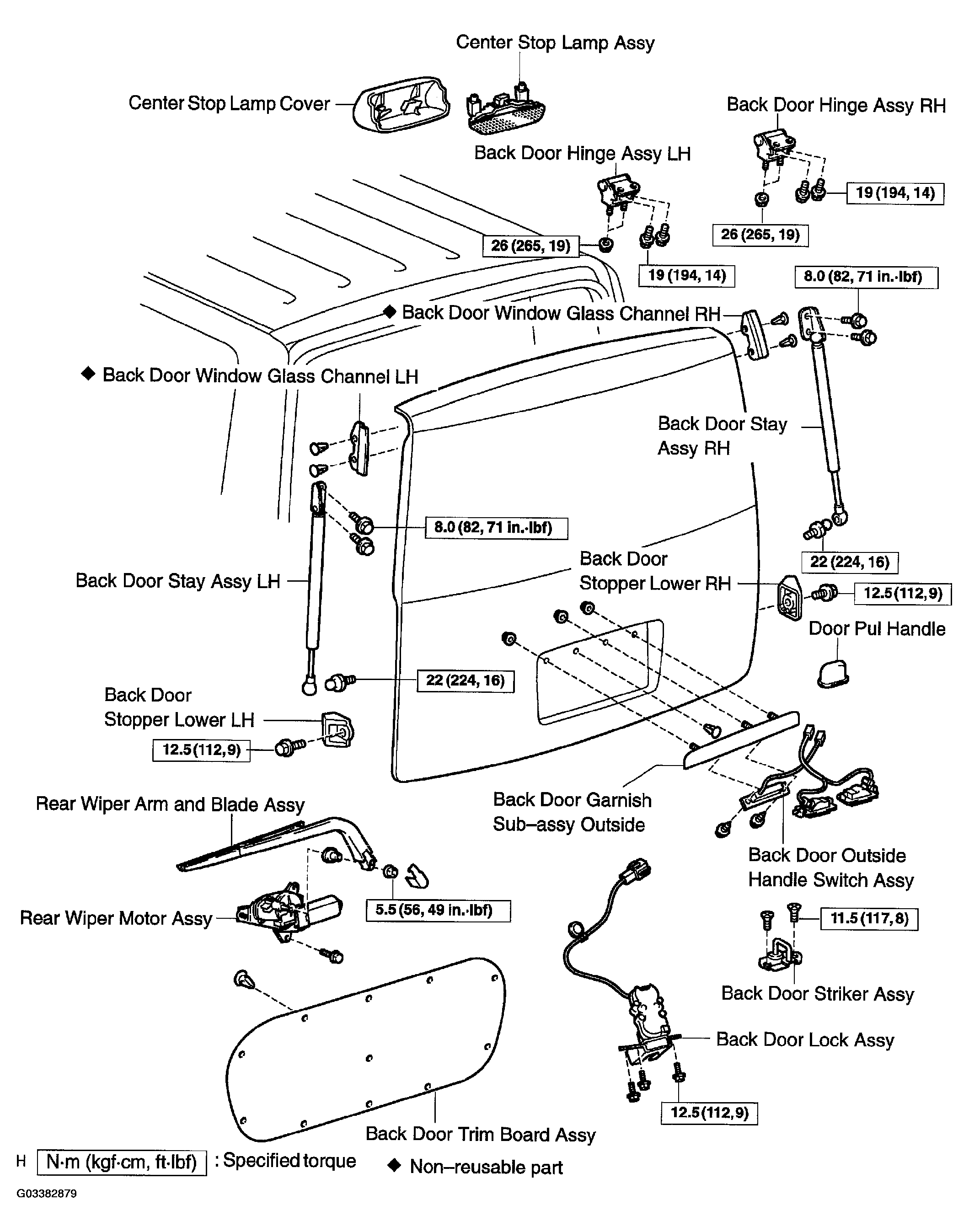

Fig 1: Exploded View Of Back Door Components

G03382879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
