Fuel Injector ASSY: Components

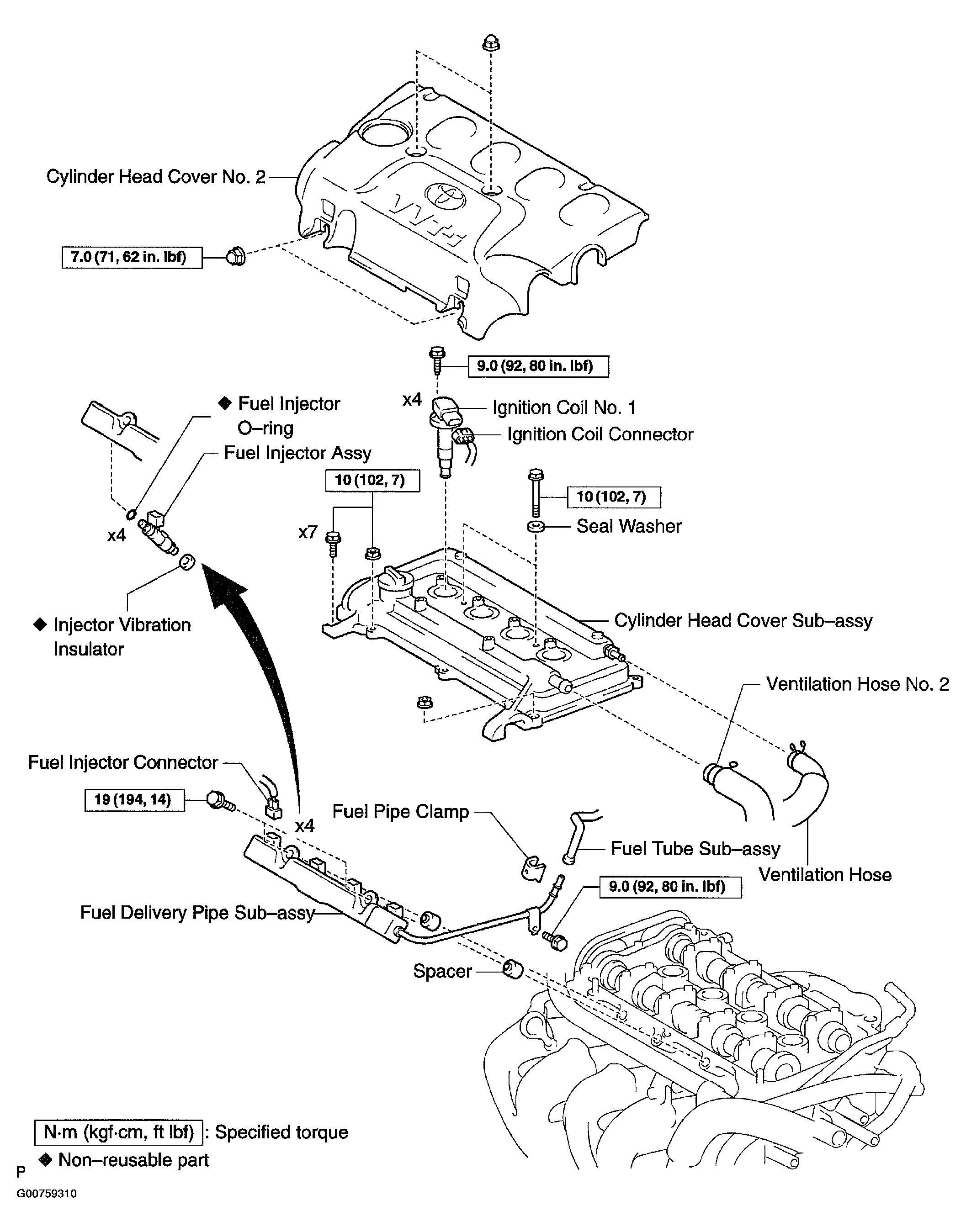

Fig 1: Fuel Injector Assy Replacement Components With Torque Specifications

G00759310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
