Engine Exhaust Assembly: Components

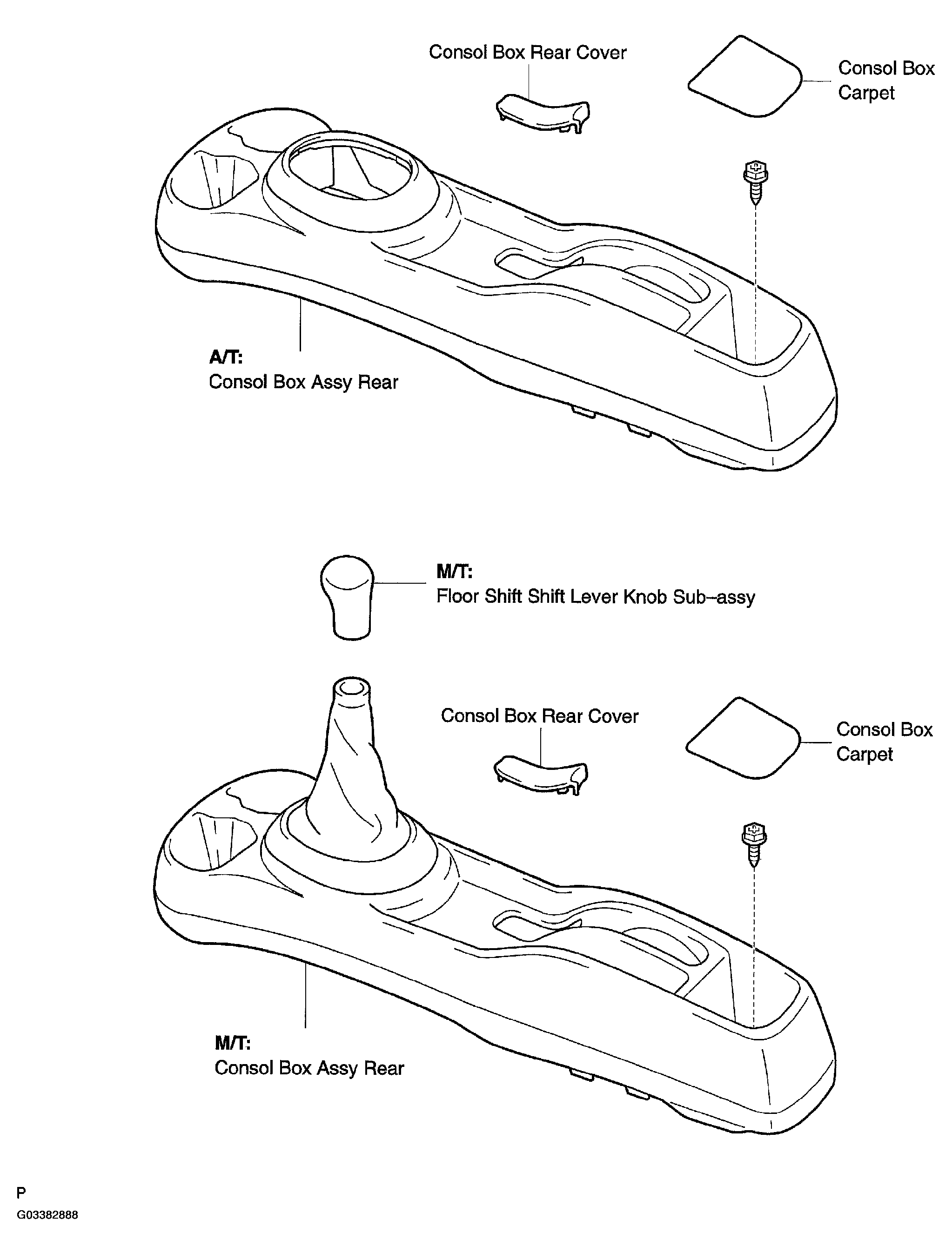

Fig 1: Identifying Console Box Assy Rear Components
G03382888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

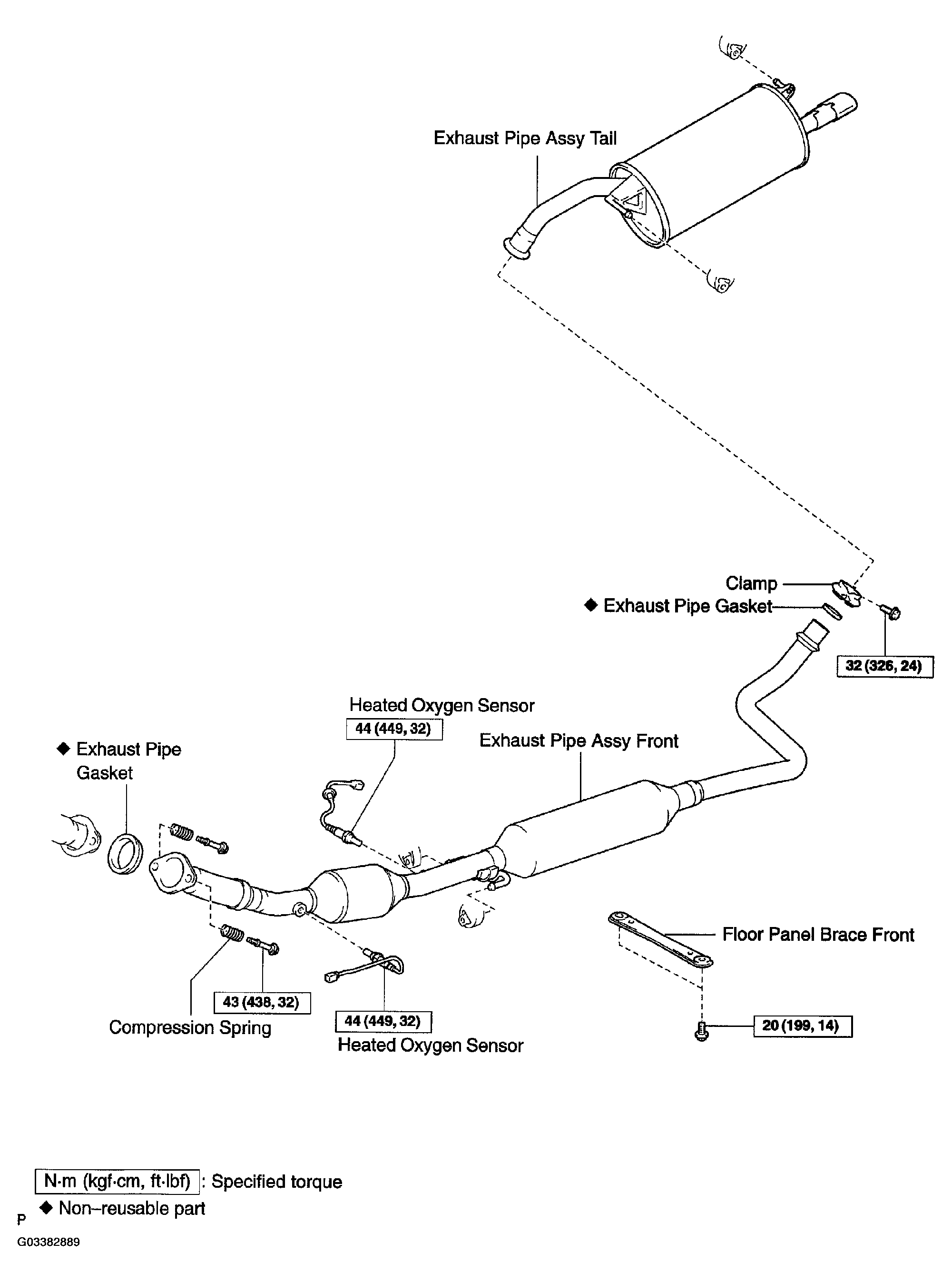

Fig 2: Identifying Exhaust Pipe Assy Components
G03382889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
