Transmission Control Cable ASSY (ATM): Replacement

HINT:

COMPONENTS:

• INSTRUMENT PANEL/METER (See INSTRUMENT PANEL/METER )
• FLOOR SHIFT ASSY (See FLOOR SHIFT ASSY (ATM)  )

1. REMOVE CONSOLE BOX REAR COVER
2. REMOVE CONSOLE BOX CARPET
3. REMOVE CONSOLE BOX SUB-ASSY REAR (See  OVERHAUL   )
4. REMOVE EXHAUST PIPE ASSY FRONT (See  EXHAUST  )
5. REMOVE FRONT FLOOR HEAT INSULATOR NO. 1
6. REMOVE AIR CLEANER ASSY
7. DISCONNECT TRANSMISSION CONTROL CABLE ASSY
   1. Remove the nut, disconnect the transmission control cable assy from the floor shift assy.
   2. Using a screwdriver, disconnect the transmission control cable assy from the shift lever plate.
      Fig 1: Disconnecting Transmission Control Cable Assy From Shift Lever Plate

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the 3 bolts.
   4. Pull out the transmission control cable assy from the body.

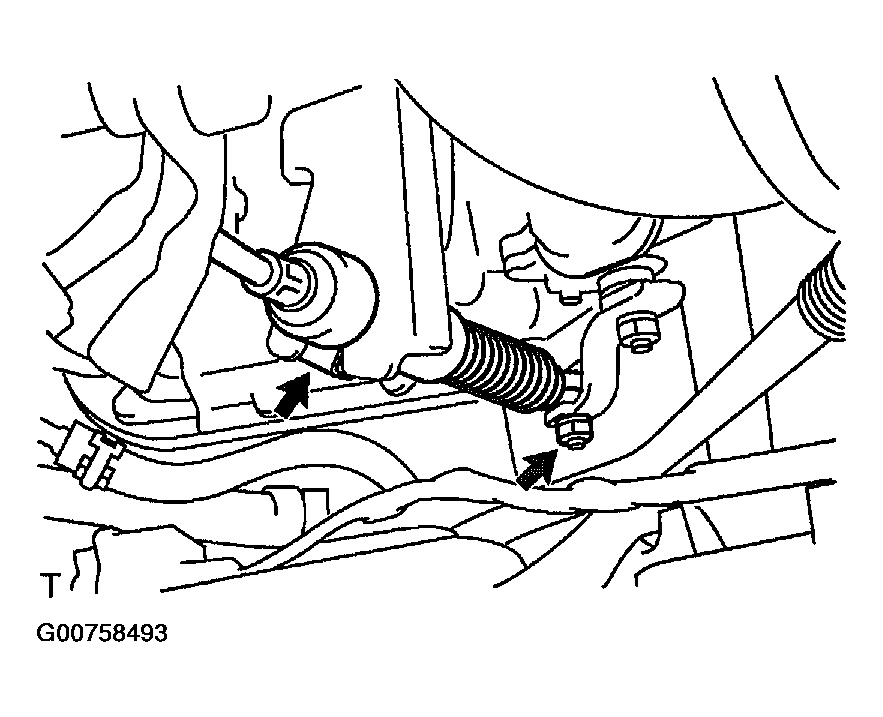

      Fig 2: Pulling Out Transmission Control Cable Assy From Body

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the nut and disconnect the transmission control cable assy from the control shaft lever.
   6. Remove the clip and disconnect the transmission control cable assy from the control cable bracket.
      Fig 3: Disconnecting Transmission Control Cable Assy From Control Cable Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Disconnect the transmission control cable assy from the transmission control cable support.

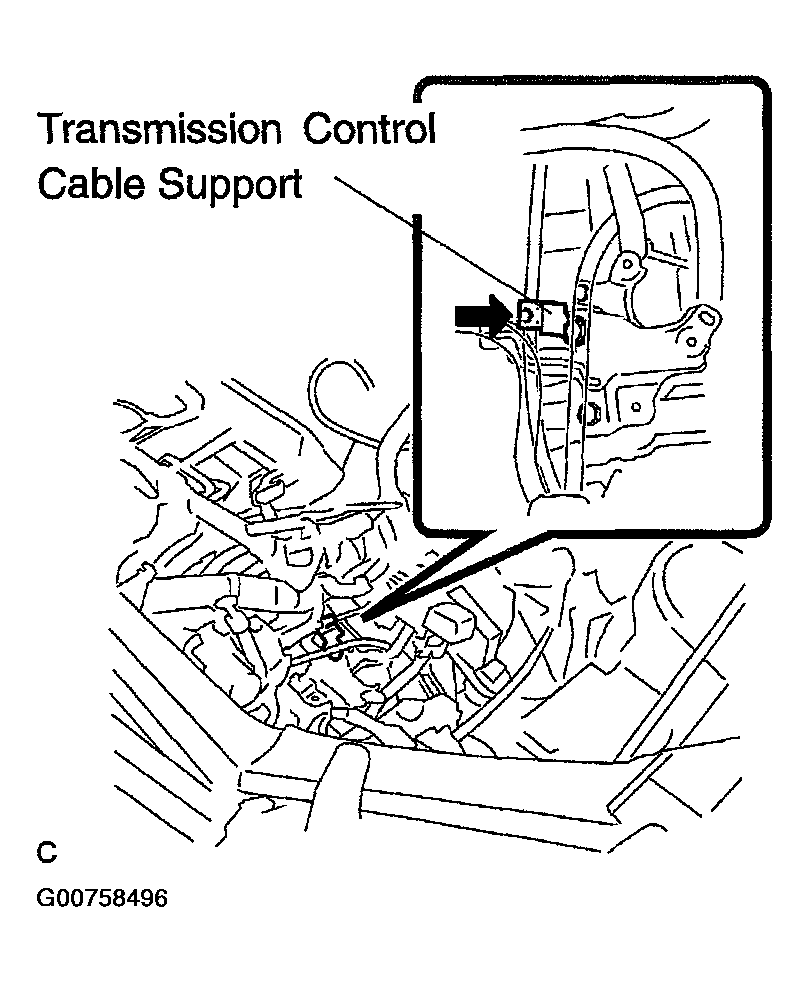

   Fig 4: Disconnecting Transmission Control Cable Assy From Transmission Control Cable Support

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. CONNECT TRANSMISSION CONTROL CABLE ASSY
   1. Temporarily install the transmission control cable assy on the control shaft lever with the nut.
   2. Connect the transmission control cable assy with a new clip on the bracket.
      Fig 5: Connecting Transmission Control Cable Assy With Clip On Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Connect the transmission control cable assy to the transmission control cable support.
      Fig 6: Connecting Transmission Control Cable Assy To Transmission Control Cable Support

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Install the transmission control cable assy on the body with the 3 bolts.

      Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

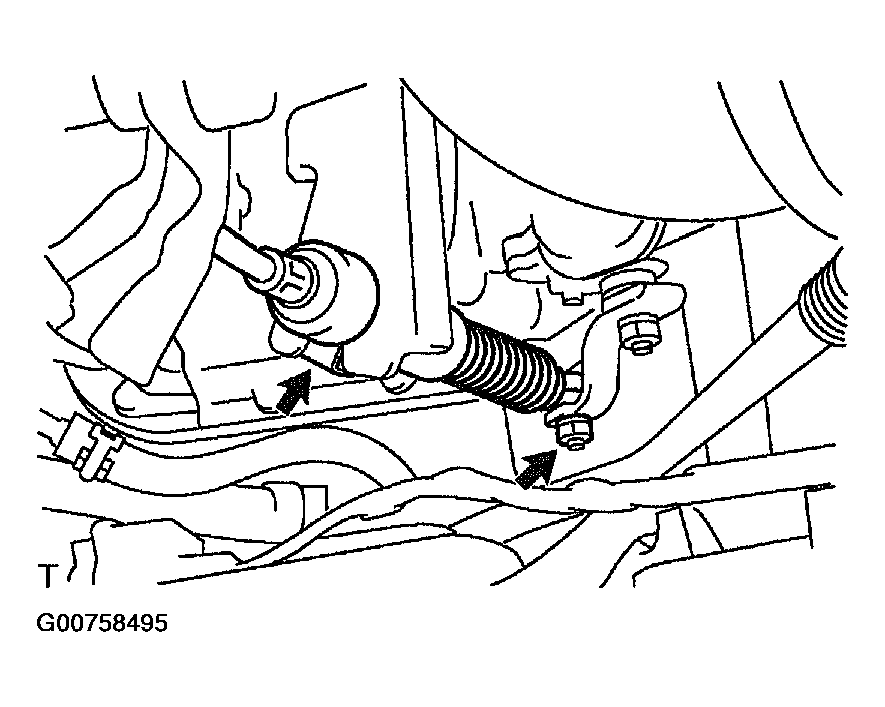

      Fig 7: Installing Transmission Control Cable Assy On Body

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Connect the transmission control cable assy on the shift lever plate.
   6. Temporarily install the transmission control cable assy on the floor shift assy.

      Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

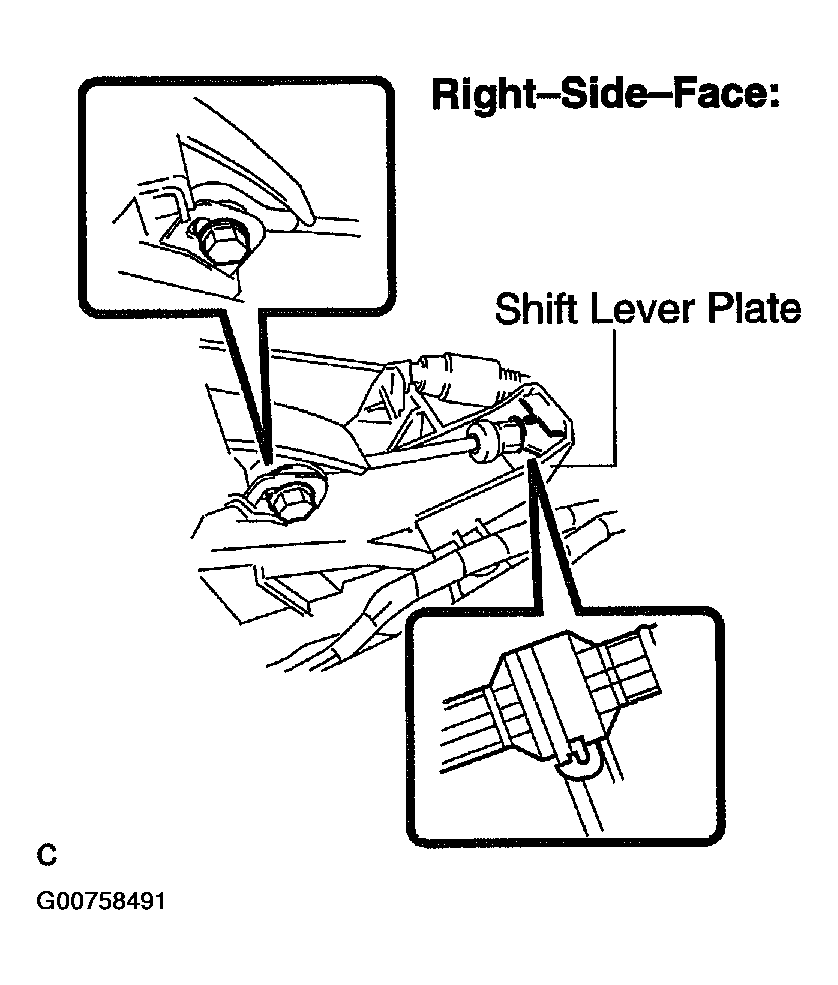

   Fig 8: Connecting Transmission Control Cable Assy On Shift Lever Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL AIR CLEANER ASSY
10. INSTALL FRONT FLOOR HEAT INSULATOR NO. 1
    1. Torque: 5.5 N.m (56 kgf.cm, 49 ft.lbf)
11. INSTALL EXHAUST PIPE ASSY FRONT (See  EXHAUST  )
12. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT   )
13. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT   )
14. INSTALL CONSOLE BOX SUB-ASSY REAR
15. INSTALL CONSOLE BOX CARPET
16. INSTALL CONSOLE BOX REAR COVER
