Front Seat Belt With PRETENSIONER: Components

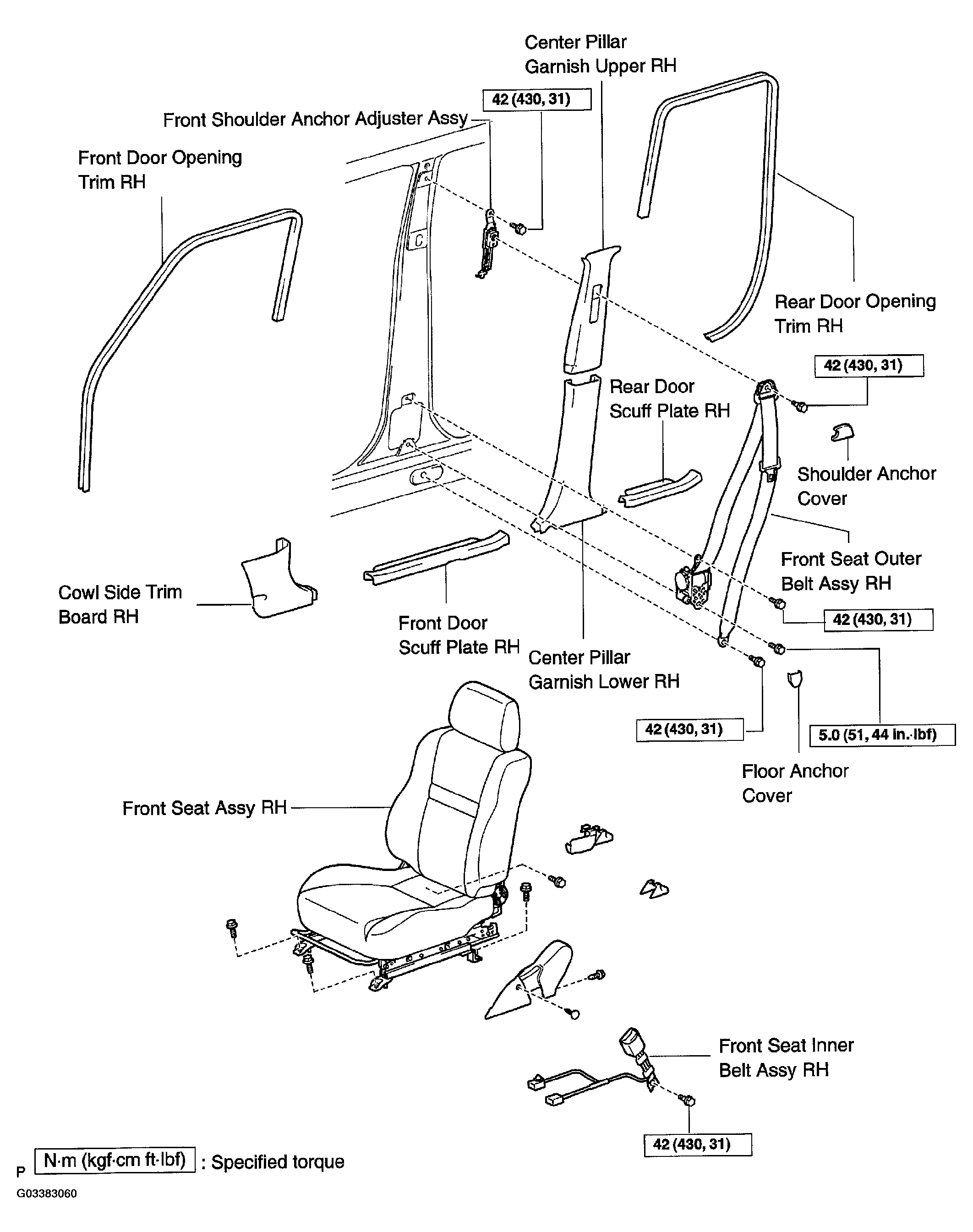

Fig 1: Identifying Components Of Front Seat

G03383060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
