Steering Column ASSY: Components

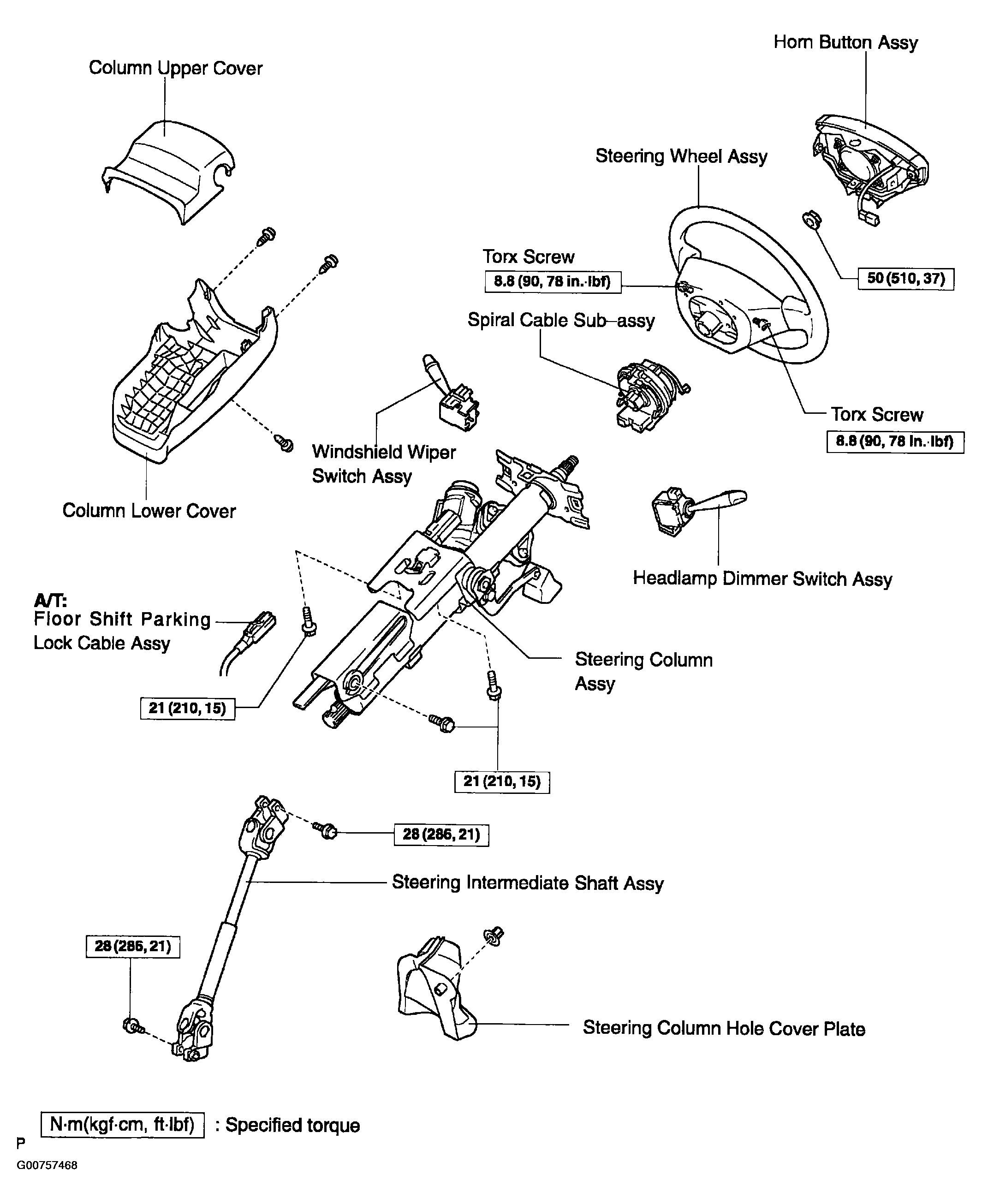

Fig 1: Steering Column Assembly Component Location And Torque Specification
G00757468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

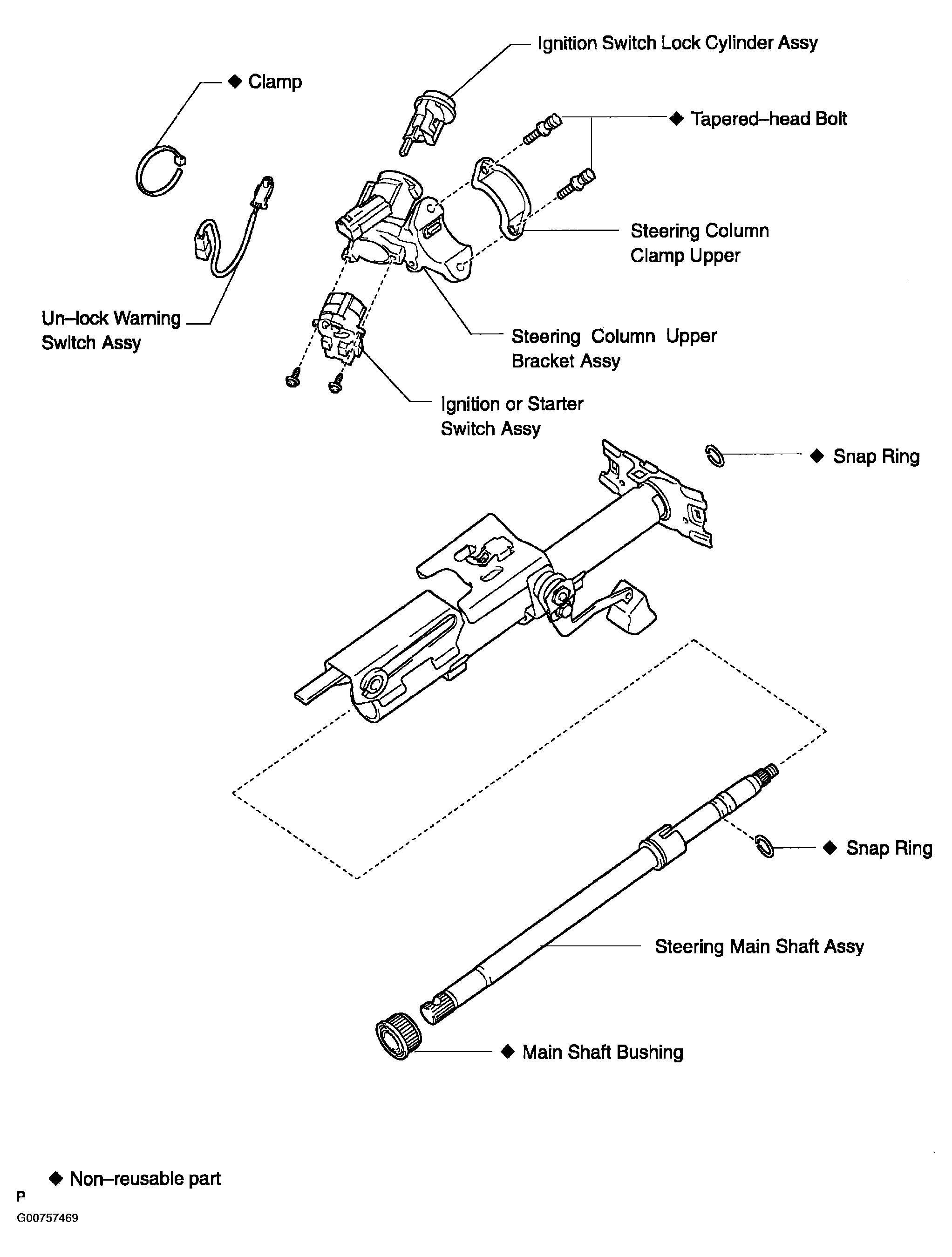

Fig 2: Exploded View Of Steering Column Assembly
G00757469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
