Transmission Control Cable ASSY (MTM): Replacement

HINT:

COMPONENTS: See COMPONENTS

REMOVE FRONT FLOOR HEAT INSULATOR NO. 1
REMOVE SHIFT LEVER KNOB SUB-ASSY (See FLOOR SHIFT ASSY (ATM) )
REMOVE CONSOLE BOX ASSY REAR (See FLOOR SHIFT ASSY (ATM) )
SEPARATE FLOOR SHIFT SHIFT LEVER ASSY

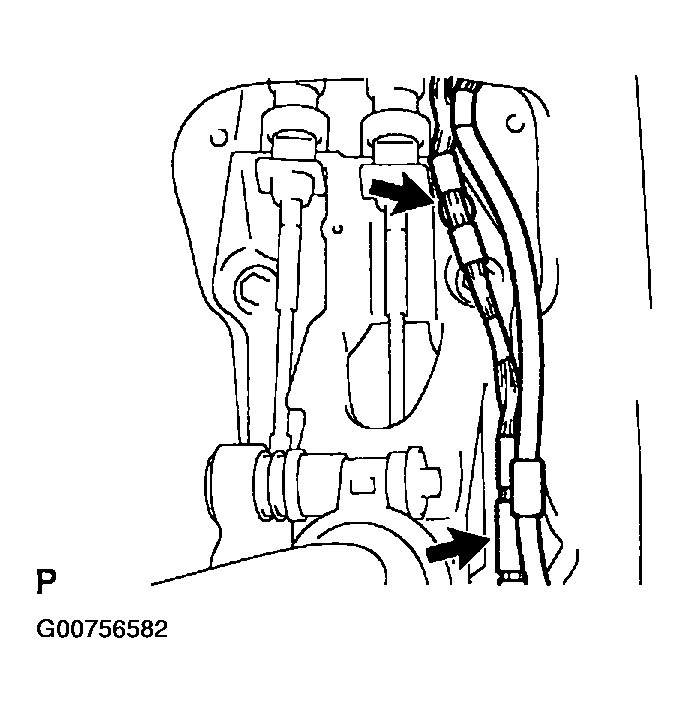

1. Separate the wire harness.

  Fig 1: Separating Wire Harness - For Replacing Transmission Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

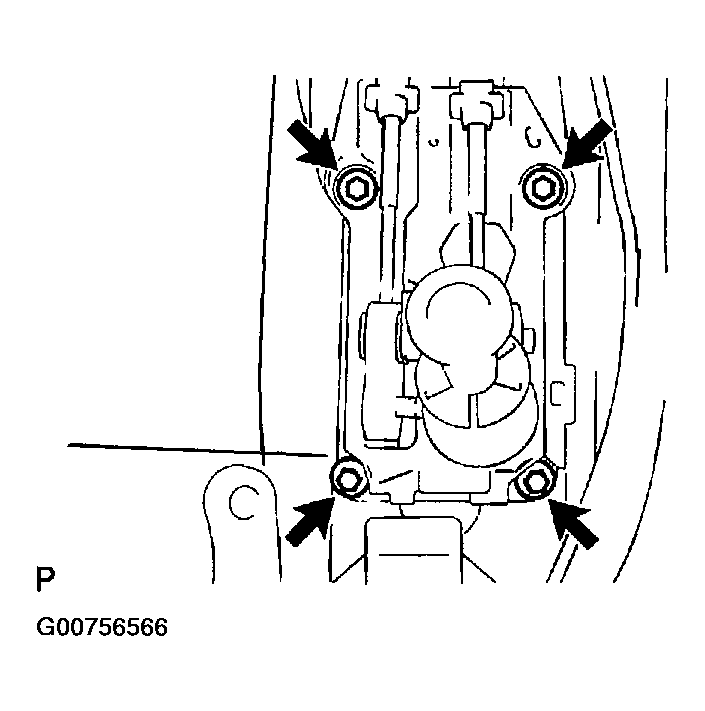

2. Remove the 4 bolts and separate the floor shift shift lever assy.

  Fig 2: Separating Floor Shift Shift Lever Assembly - For Replacing Transmission Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL CABLE ASSY
1. Remove the clip, and separate the cable end of the transmission control select cable from the floor shift shift lever assy.

  Fig 3: Removing Clip For Separating Transmission Control Select Cable From Floor Shift Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

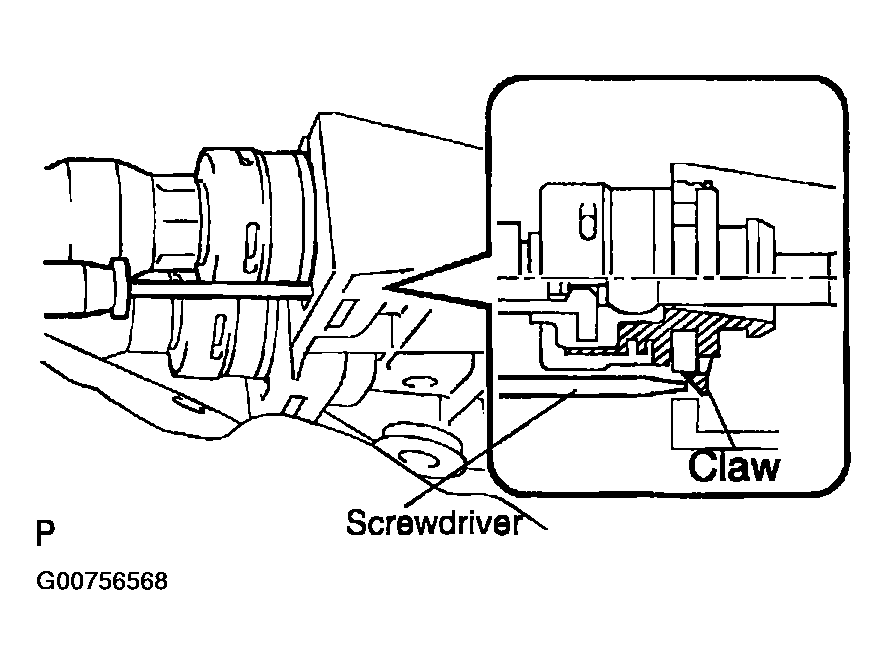

2. Using a screwdriver, release the claw.
3. Separate the transmission control select cable from the shift lever retainer.

  Fig 4: Separating Transmission Control Select Cable From Shift Lever Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the clip, and separate the cable end of the transmission control shift cable from the floor shift shift lever assy.

  Fig 5: Removing Clip For Separating Transmission Control Shift Cable From Floor Shift Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

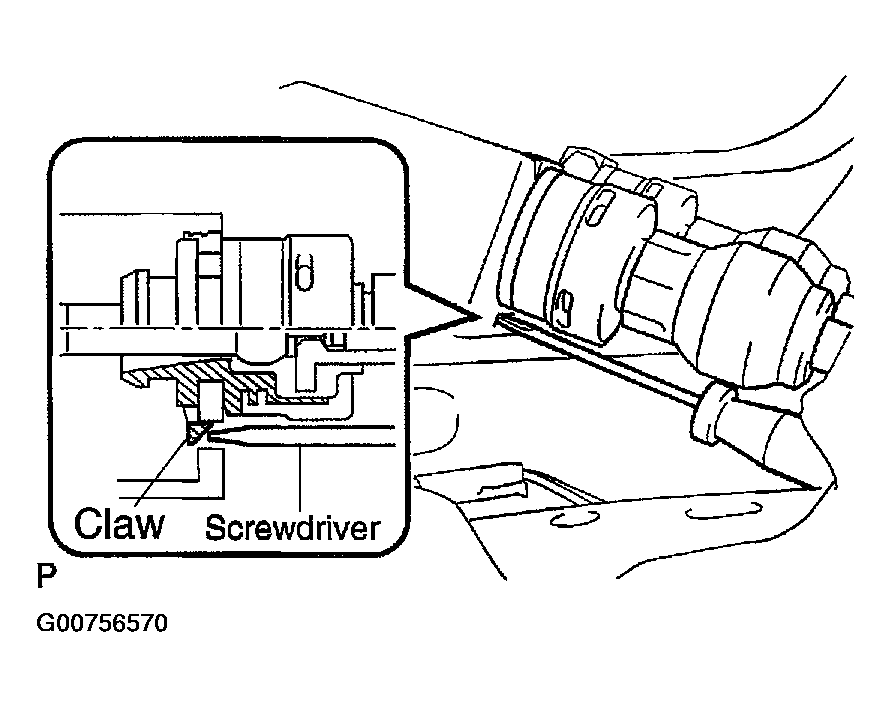

5. Using a screwdriver, release the claw.
6. Separate the transmission control shift cable from the shift lever retainer.

  Fig 6: Separating Transmission Control Shift Cable From Shift Lever Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 2 clips and the 2 washers, and separate the 2 cables from the manual transaxle.
8. Remove the 2 clips, and separate the 2 cables from the control cable bracket.

  Fig 7: Separating 2 Cables From Manual Transaxle And 2 Cables From Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Remove the 2 bolts and the retainer from the floor.

  Fig 8: Removing Retainer From Floor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Remove the retainer from the grommet.
11. Remove the transmission control select cable from the grommet.

  Fig 9: Removing Transmission Control Select Cable From Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

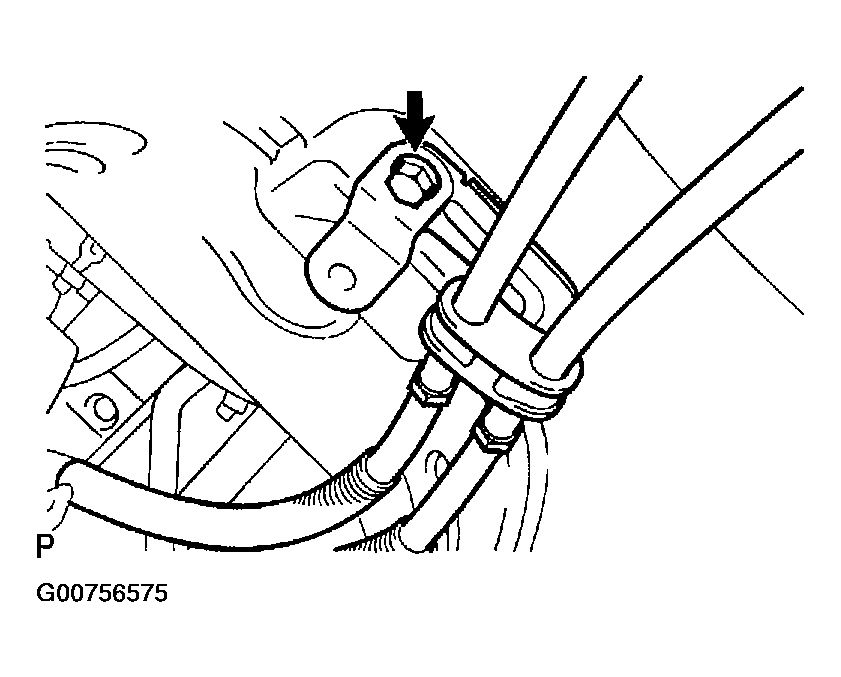

12. Remove the bolt and the clamp.
13. Pull out the transmission control select cable and transmission control shift cable through the floor hole.

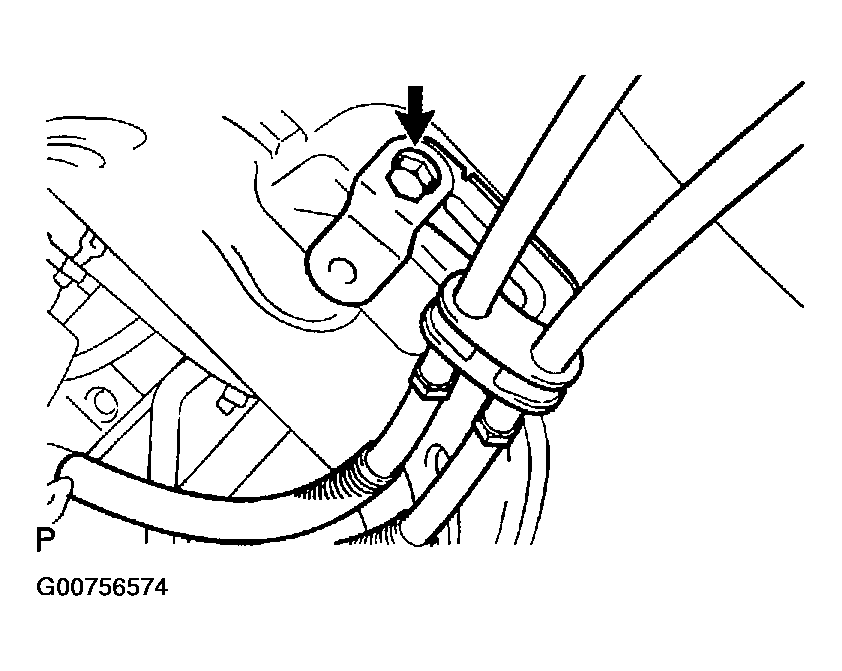

  Fig 10: Pulling Transmission Control Select Cable And Transmission Control Shift Cable Through Floor Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Install the clamp with the bolt.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
2. Push in the transmission control select cable and transmission control shift cable through the floor hole and the retainer.
3. Install the transmission control cable assy on the grommet.

  Fig 11: Pushing Transmission Control Select Cable And Transmission Control Shift Cable Through Floor Hole And Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the retainer on the grommet.
  NOTE: Fit the projections of the grommet into the hole of the retainer.

  Fig 12: Installing Retainer On Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the retainer on the floor with the 2 bolts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)
6. Connect the transmission control cable assy to the shift lever refiner.

  Fig 13: Connecting Transmission Control Cable Assembly To Shift Lever Refiner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the end of the transmission control shift cable to the floor shift shift lever assy.

  Fig 14: Connecting End Of Transmission Control Shift Cable To Floor Shift Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

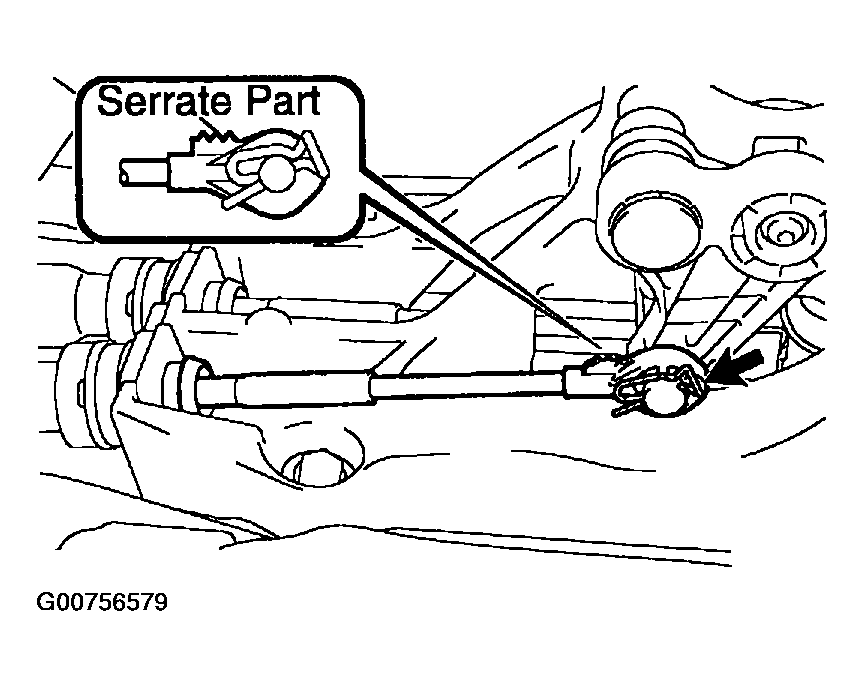

8. Connect the end of the transmission control select cable to the floor shift shift lever assy.
  NOTE:
  - The serrate part of the select cable point should face up ward when the select cable point is connected.
  - The clip should be inserted in the direction as shown in the illustration.
  Fig 15: Connecting End Of Transmission Control Select Cable To Floor Shift Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Connect the 2 cable ends, and install the 2 washers and the 2 clips.
10. Install the 2 new clips on the control cable bracket.

  Fig 16: Connecting 2 Cables To Manual Transaxle And To Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT SHIFT LEVER ASSY

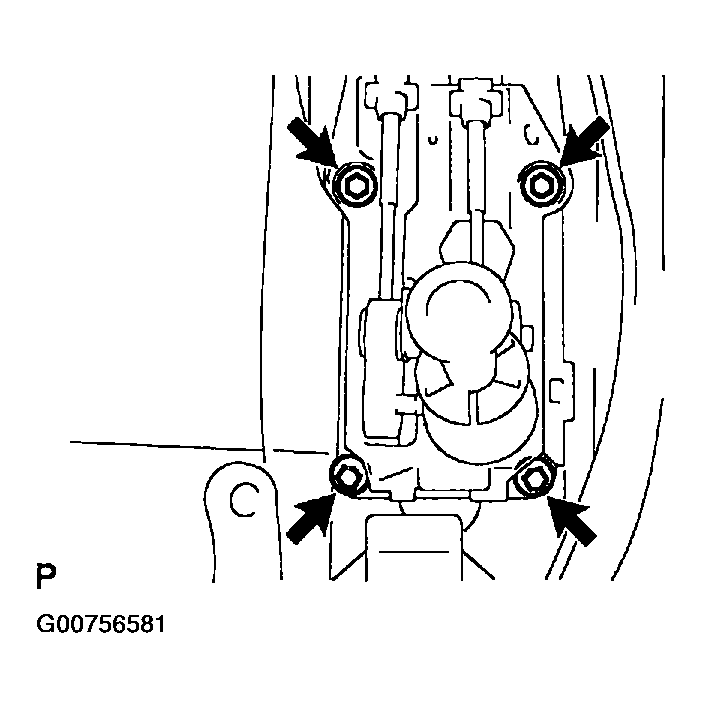

1. Install the floor shift shift lever assy with the 4 bolts.
  Torque: 12 N.m (120 kgf.cm, 9 ft.lbf)

  Fig 17: Installing Floor Shift Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

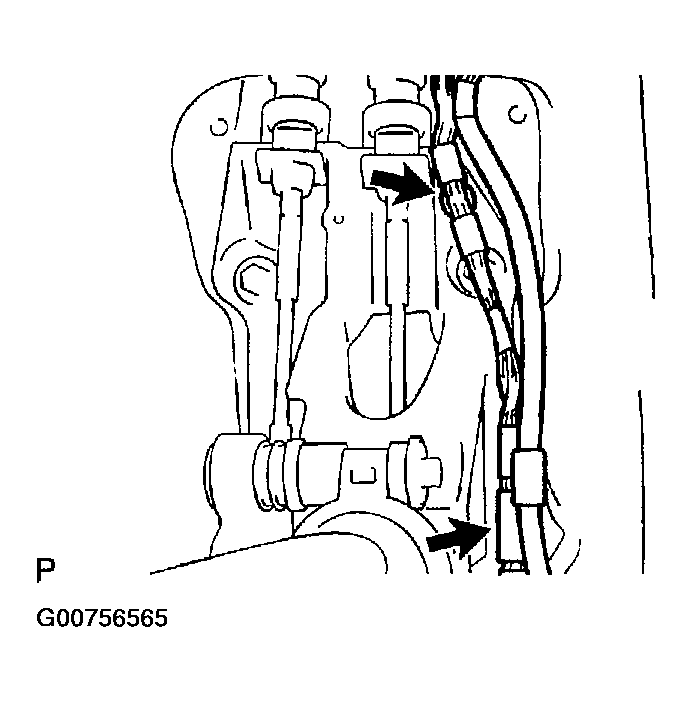

2. Install the wire harness.

  Fig 18: Installing Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX ASSY REAR (See FLOOR SHIFT ASSY (ATM) )
INSTALL SHIFT LEVER KNOB SUB-ASSY (See FLOOR SHIFT ASSY (ATM) )
INSTALL FRONT FLOOR HEAT INSULATOR NO. 1
1. Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
