Input Shaft ASSY (C50): Components

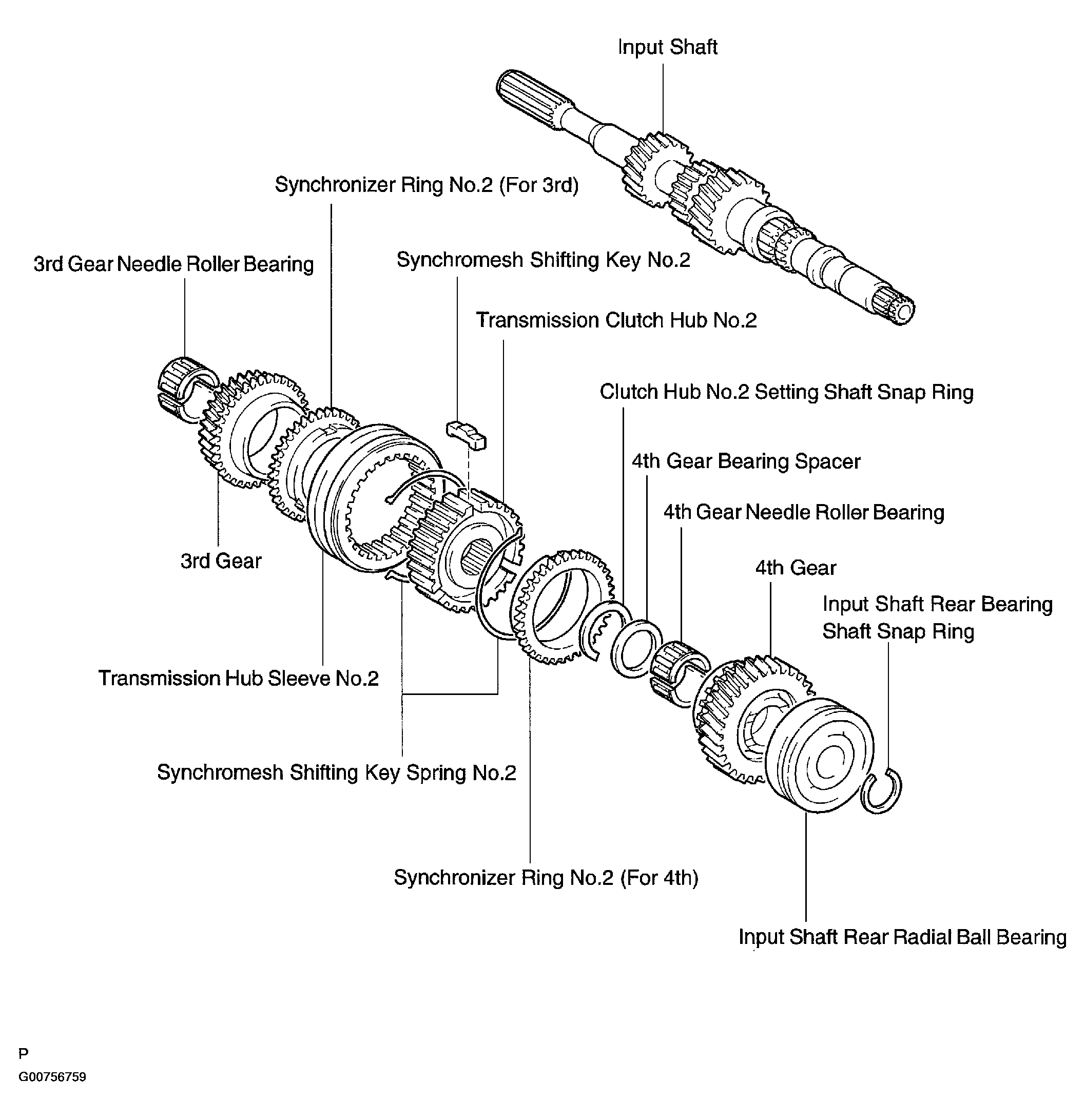

Fig 1: Exploded View Of Input Shaft Assembly (C50) Components

G00756759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
