Section 940 (Center Stop Lamp): Overhaul

WARNING: This page is about a different car, the 2004 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER STOP LAMP COVER

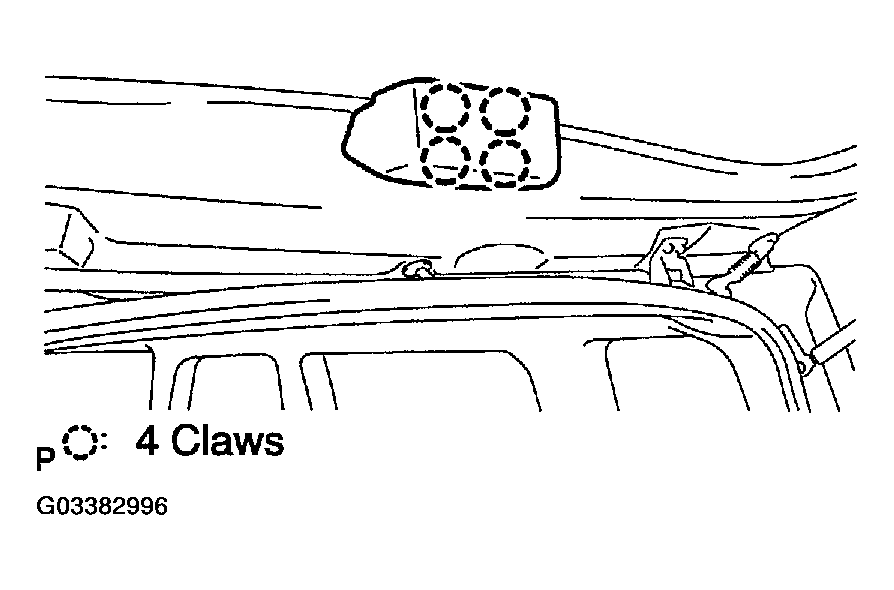

1. Disengage the 4 claws and remove the center stop lamp cover.

  Fig 1: Disengaging Claws & Removing Center Stop Lamp Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER STOP LAMP ASSY

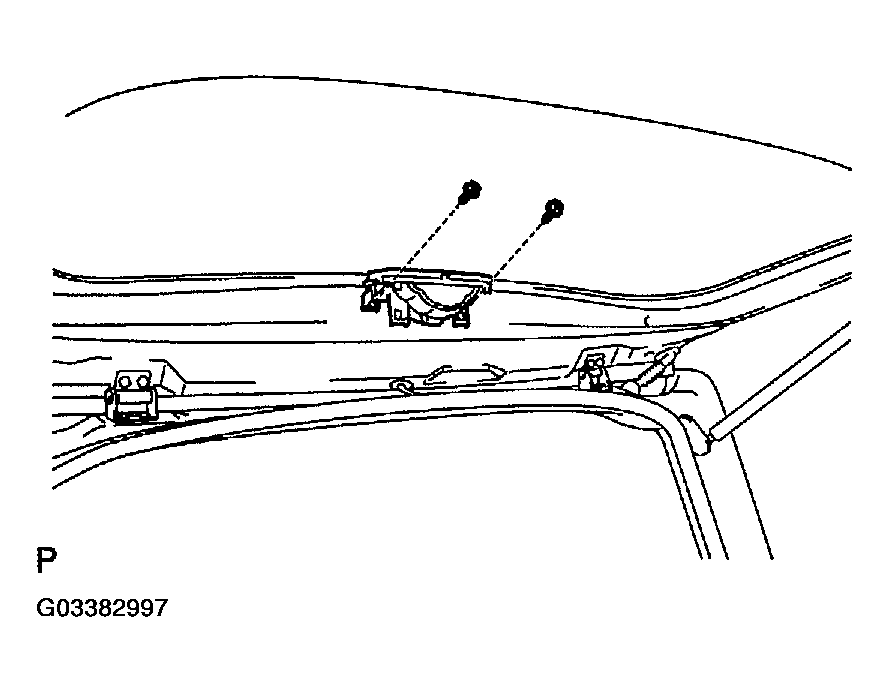

1. Remove the 2 screws.
2. Disconnect the connector and remove the center stop lamp assy.

  Fig 2: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

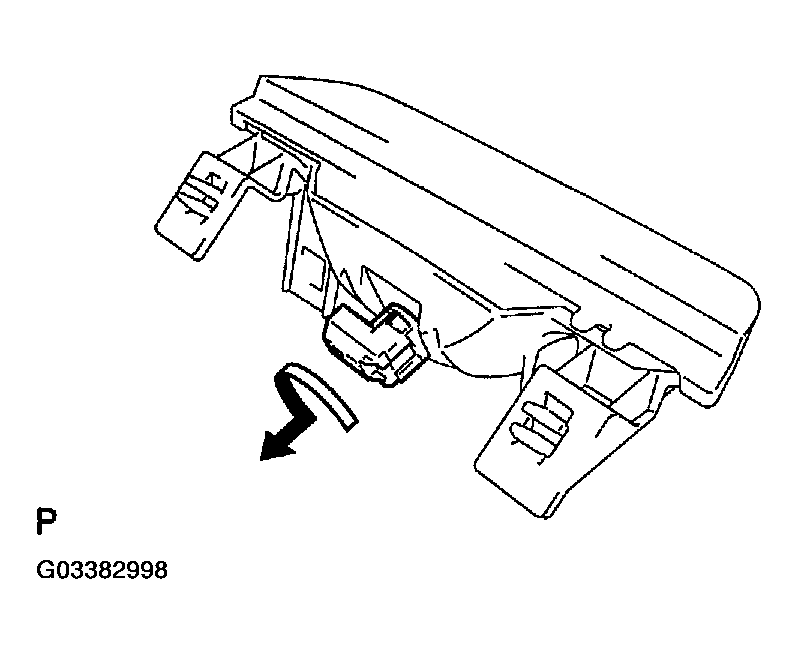

3. Remove the center stop lamp bulb as shown in the illustration.

  Fig 3: Removing Center Stop Lamp Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
