Premium System (Without NAVI)

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

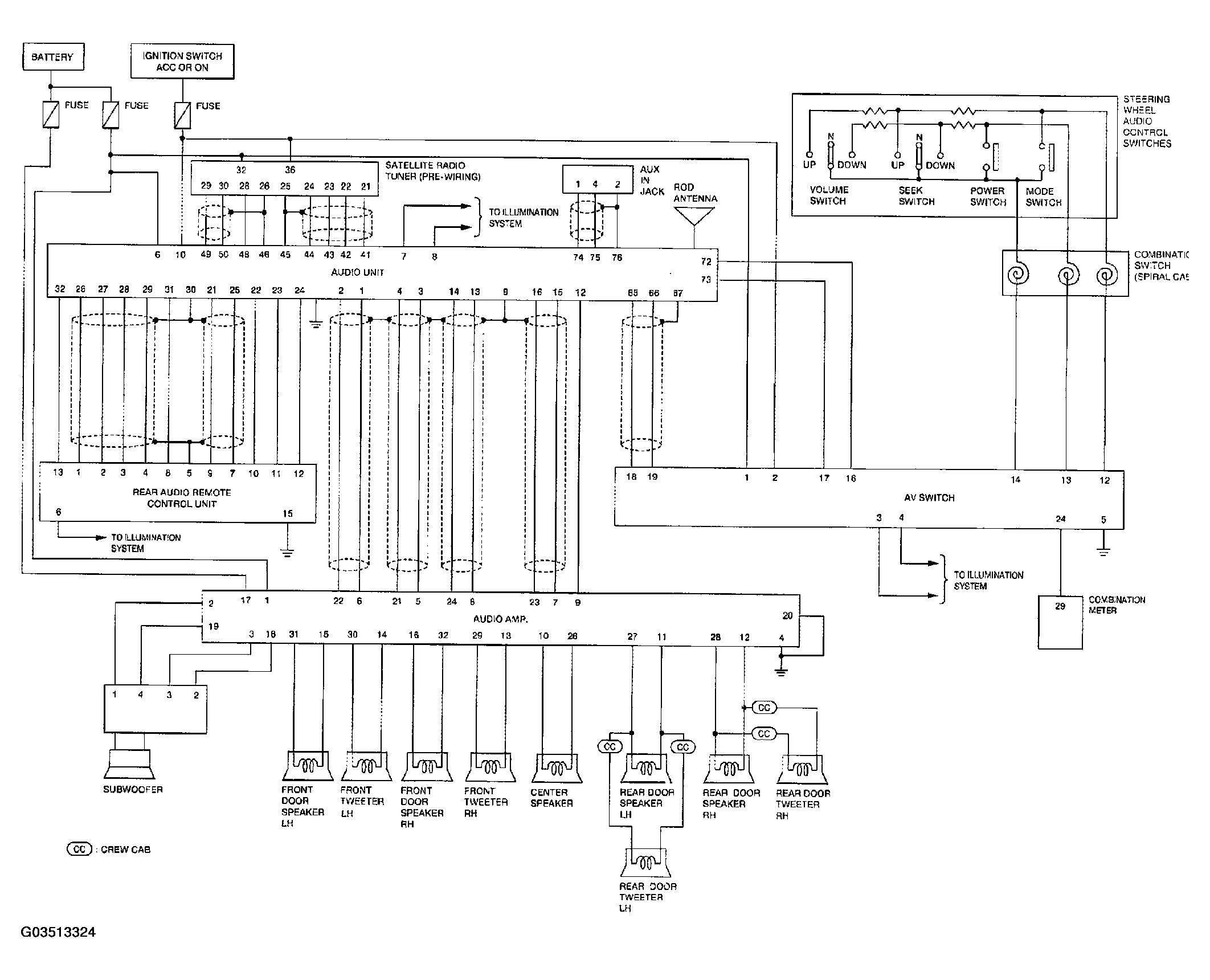

Fig 1: Audio Premium System (Without NAVI) Schematic Diagram
G03513324Courtesy of NISSAN MOTOR CO., U.S.A.
