DTC P0550, DTC P0552, DTC P0553: Power Steering Pressure Sensor/Switch Circuit: Wiring Diagram

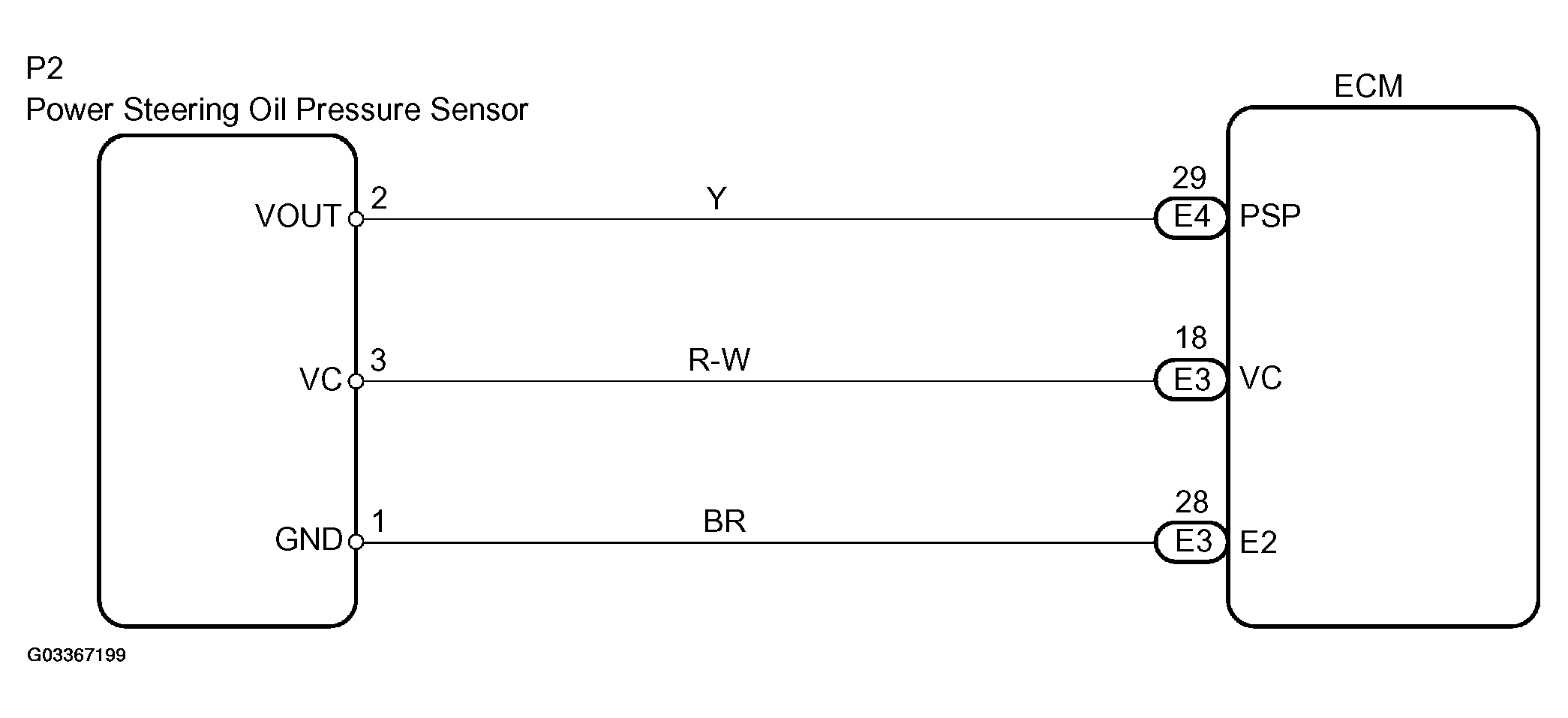

Fig 1: Power Steering Pressure Sensor/Switch Wiring Diagram
G03367199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
