Combination Meter - Diagnostics: Location

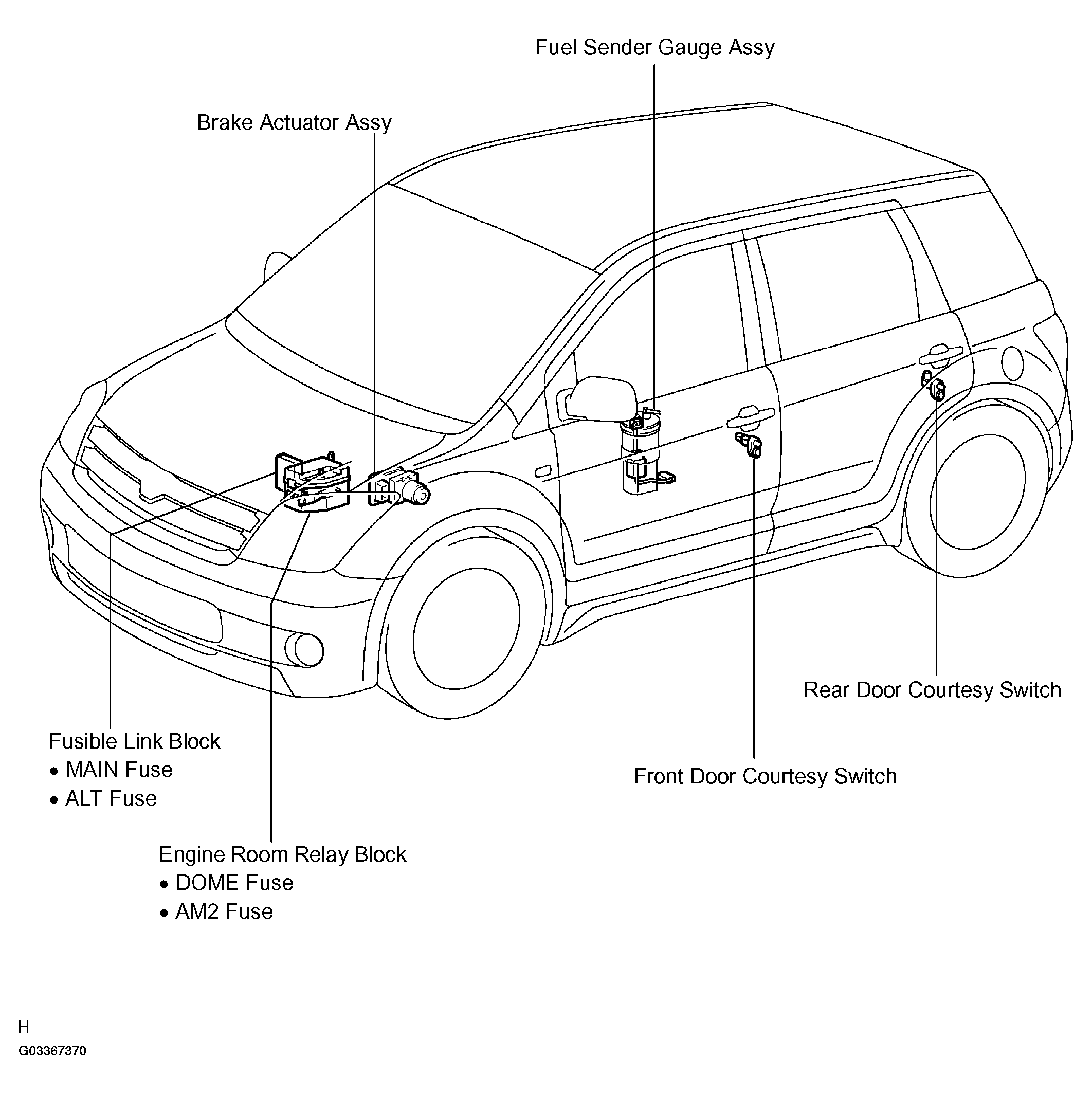

Fig 1: Locating Combination Meter Components (1 Of 3)
G03367370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

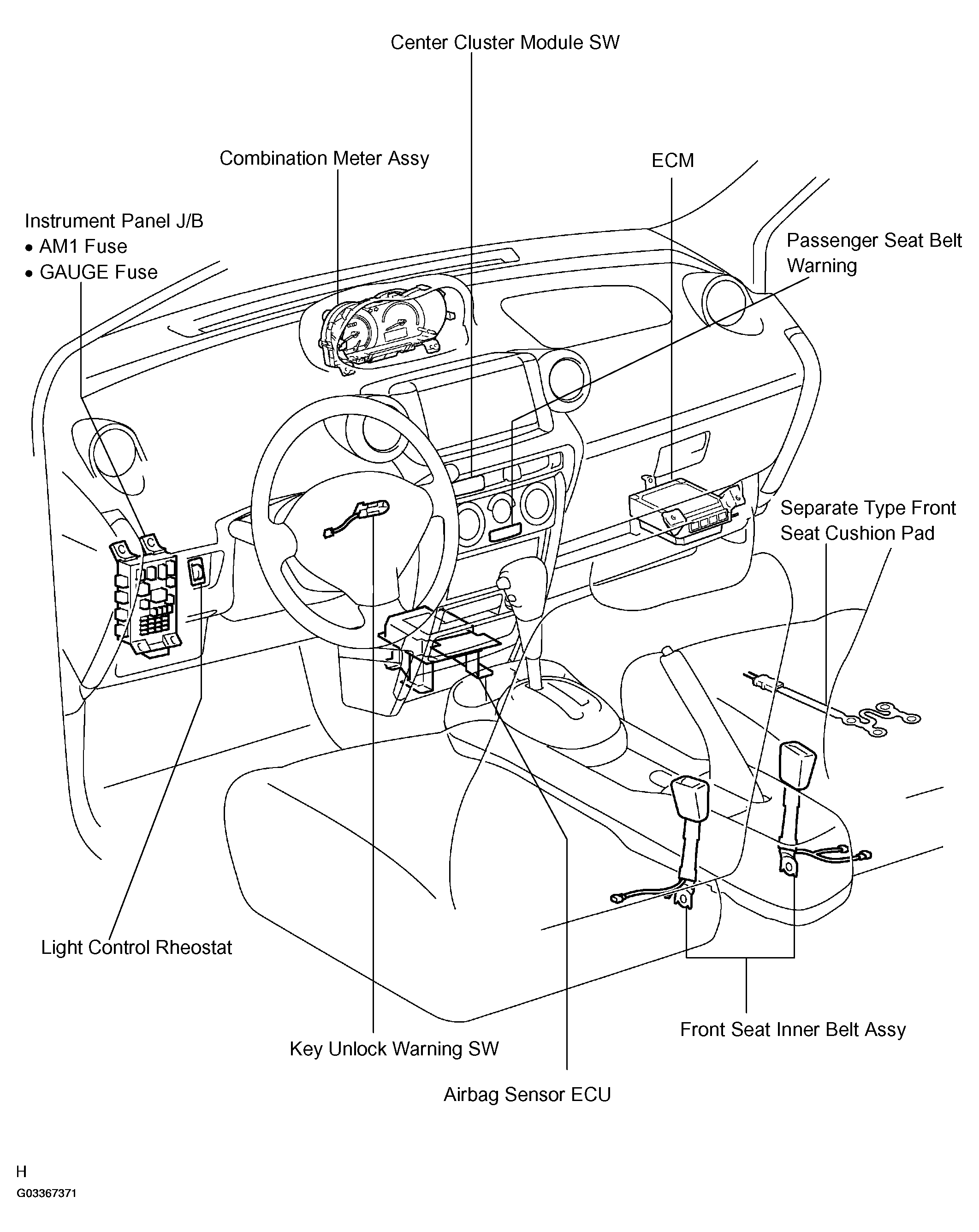

Fig 2: Locating Combination Meter Components (2 Of 3)
G03367371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

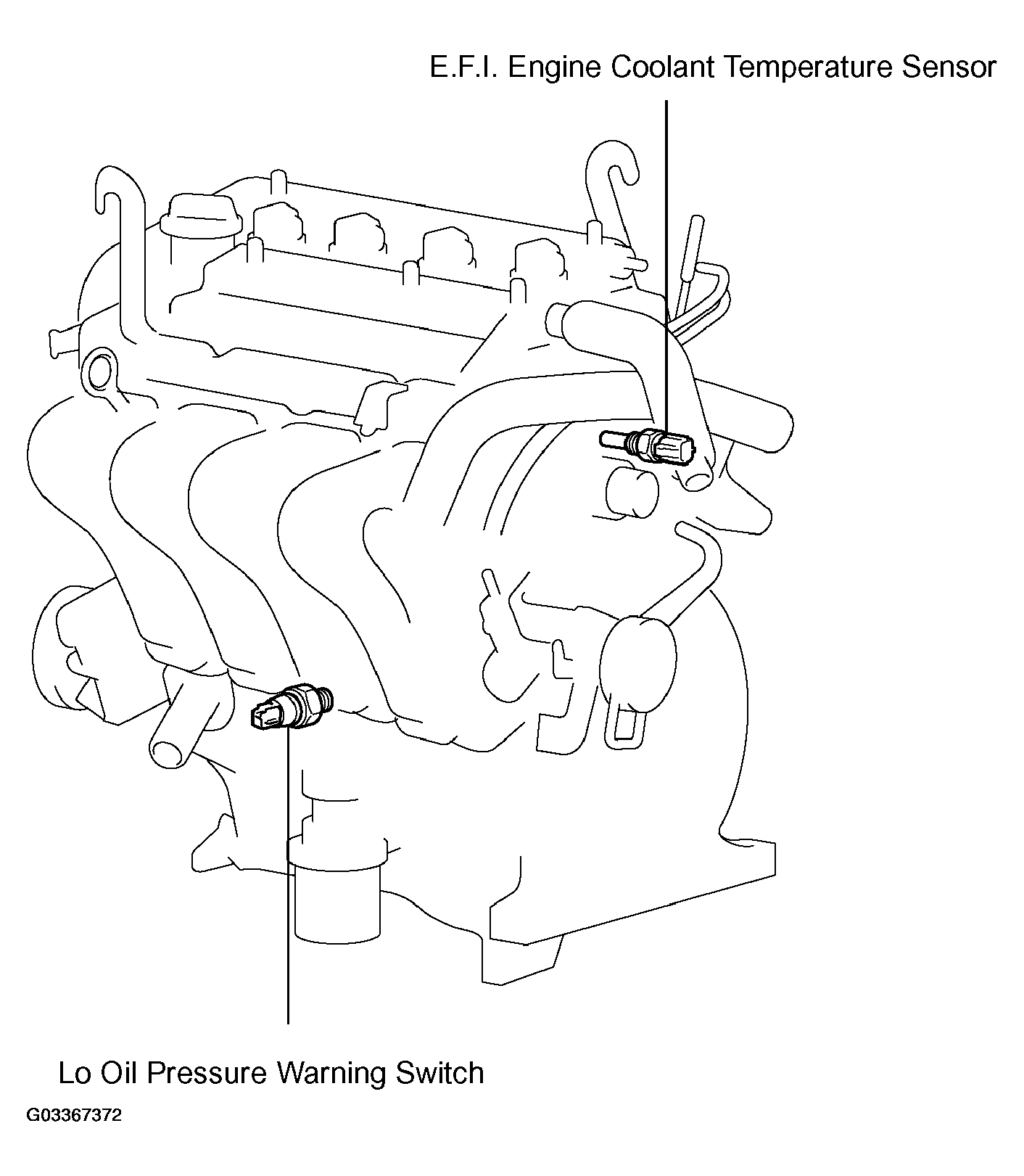

Fig 3: Locating Combination Meter Components (3 Of 3)
G03367372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
